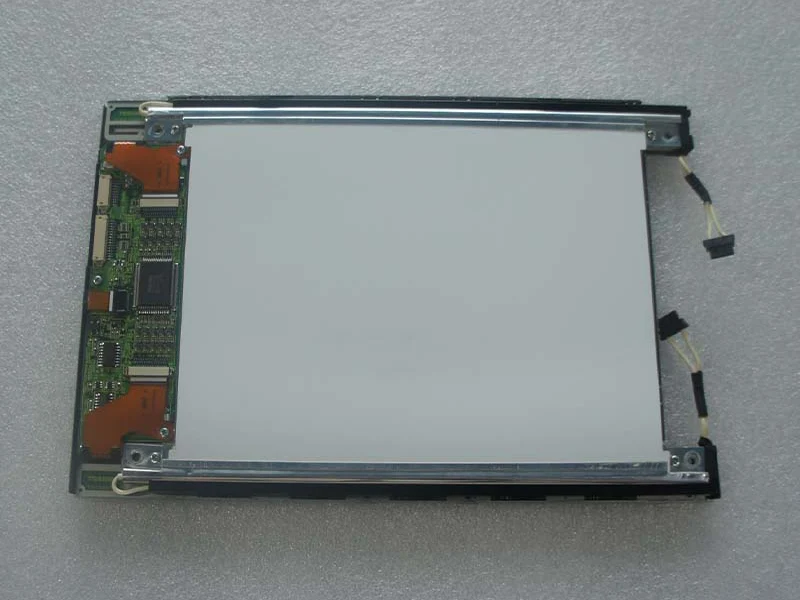

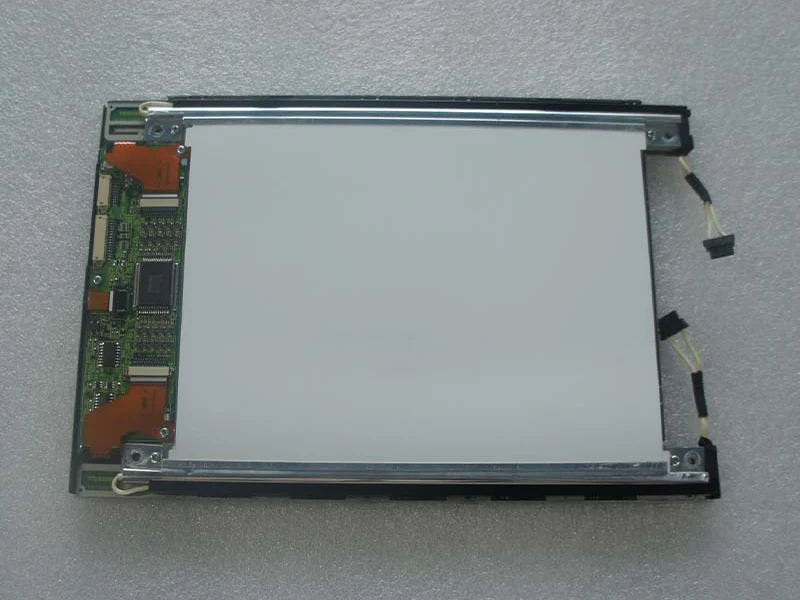

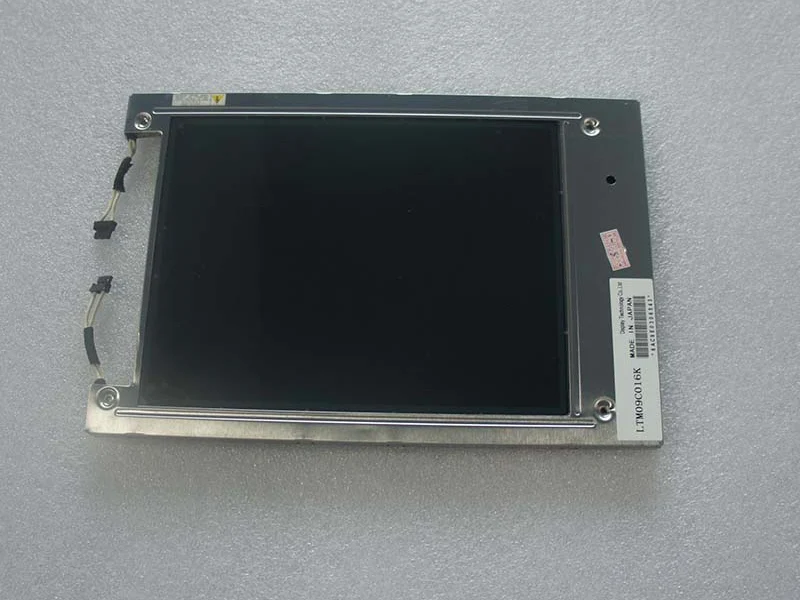

LTM09C016K Toshiba 9.4 inch lcd module 640*480 lcd display panel
LTM09C016K is a classic 9.4-inch VGA a-Si TFT-LCD module manufactured by Toshiba. Native resolution 640(RGB)×480, standard 4:3 landscape format, TN transmissive normally white display mode, single CCFL edge backlight (without built-in inverter), equipped with 30-pin single-channel 6-bit parallel RGB signal interface.
This mature industrial display module is widely used in legacy CNC equipment, injection molding machines, industrial HMI, medical equipment and imported automation equipment screen replacement. The model has reached End of Life (EOL), mainly supplied as aftermarket maintenance spare panels. All technical specifications refer to official Toshiba datasheet for hardware matching, equipment retrofit and debugging verification.
| Parameter Item | Specification |
|---|---|
| Model Number | LTM09C016K |
| Manufacturer | Toshiba Corporation |
| Diagonal Size | 9.4 Inch |
| Display Technology | a-Si TFT-LCD, TN, Transmissive, Normally White |
| Native Resolution | 640(RGB) × 480 (VGA), 84 PPI |
| Aspect Ratio | 4:3 (Landscape) |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 192 mm (W) × 144 mm (H) |
| Outline Dimension | 216 × 152.4 × 12.5 mm (W×H×D) |
| Typical Brightness | 350 cd/m² |
| Contrast Ratio | 300:1 (Typ.) |
| Viewing Angle (CR≥10) | L/R:60°/60°, U/D:45°/55°, Optimum viewing: 6 o’clock |
| Color Depth | 6-bit, 262K Colors |
| Backlight | Single Side CCFL Lamp, No built-in inverter, Lifetime: 20,000 Hours |
| Signal Interface | 30-Pin Single Channel 6-bit Parallel RGB Interface |
| Supply Voltage | VDD = 3.3 V (Typ.) |
| Refresh Rate | 60 Hz |
| Surface Treatment | Glossy Standard Surface, 3H Hard Coating |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Touch Function | Bare panel without touch; resistive touch overlay optional |
| Net Weight | ~473 g |
| Production Status | End of Life (EOL), Aftermarket replacement stock available |
| RoHS Status | Non-RoHS |
Mature Toshiba Industrial Display Technology: Stable and reliable performance, long-term verified in automation equipment.
350 cd/m² Medium High Brightness: Clear display effect for indoor factory workshop environment.
Standard 4:3 VGA Mechanical Outline: Direct replacement solution for numerous discontinued imported industrial control panels.
30Pin Parallel RGB Interface: Matches many old industrial mainboards and dedicated RGB driver boards.
Single CCFL Backlight Structure: Easy to match general external CCFL inverter power supply.
Metal Frame Assembly: High structural rigidity, suitable for embedded cabinet installation.
CNC Machine Tool Operation Panel Screen Repair & Replacement
Injection Molding Machinery, Printing Equipment Control Terminals
Legacy Imported Industrial HMI Human-Machine Interfaces
Portable Industrial Test & Measurement Equipment
Old-Style Medical Auxiliary Monitoring Displays
Factory Automation PLC Control Display Modules
Discontinued Special Equipment Retrofit Projects
A6: Designed for industrial intermittent & continuous usage. Control ambient temperature below 45°C to extend CCFL service life.
