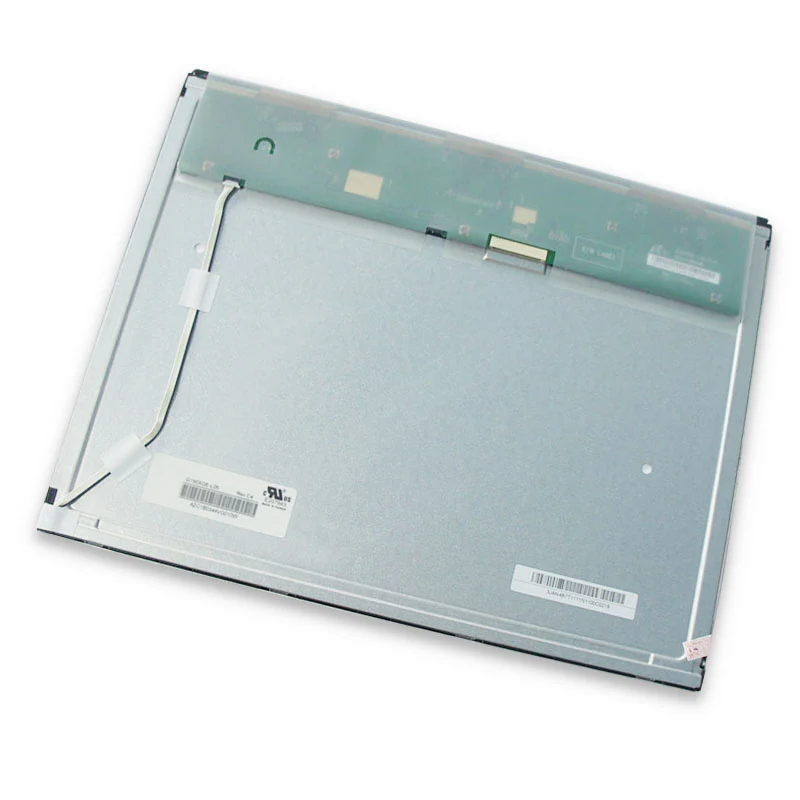

G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel
G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel
Price: $100.00
$95.00/ piece
Add to cart
G150XGE-L05 Innolux
G150XGE-L05 Innolux
G150XGE-L05 Innolux
G150XGE-L05 Innolux

G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel

Price: $100.00
$95.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel

Product Information Product Specifications
Model:
G150XGE-L05
Brand:
INNOLUX
Application:
Industrial
Size:
15"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
994
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

G150XGE-L05 is a classic 15-inch 4:3 XGA industrial TFT LCD module manufactured by Innolux (Chi Mei). It adopts TN normally white transmissive panel, wide industrial temperature range (-30℃ ~ +70℃), built-in WLED constant current driver, single-channel 6/8-bit 20Pin LVDS interface, widely used for industrial HMI, medical equipment, CNC machinery, gaming machines and embedded panel PCs

Full Technical Specification Table

CategoryParameterStandard Specification
Basic InfoFull Part NumberG150XGE-L05

BrandInnolux (CHIMEI)

Diagonal Size15.0 inch, 4:3 landscape
Display CoreNative Resolution1024(RGB) × 768 XGA, 85 PPI

Panel Techa-Si TN TFT-LCD, Transmissive Normally White

Pixel ArrangementRGB vertical stripe
Optical SpecActive View Area (AA)304.128(W) × 228.096(H) mm

Pixel Pitch0.297 × 0.297 mm

Typical Brightness250 cd/m²

Static Contrast Ratio700:1

Color Performance8-bit, 16.2M colors, 55% NTSC gamut

Viewing Angle (CR≥10)L/R:80°, U/D:70°; optimal 6 o’clock direction

Response Time (Tr/Td)5ms / 11ms total 16ms

Native Refresh RateFixed 60Hz
Mechanical SpecOverall Dimension326.5(W) × 253.5(H) × 11.5(D) mm

Net Weight1.1kg typical, max 1.14kg

Surface TreatmentMatte AG anti-glare (Haze 25%), 3H scratch hard coat
Electrical InterfaceConnector20Pin 0.5mm single-channel LVDS FPC

Logic Supply VoltageDC 3.3V (3.0~3.6V tolerance)

Typical Power Consumption7.5W
Backlight SystemLight SourceEdge-lit SMD WLED array

Onboard CircuitIntegrated WLED constant current IC, no external LED driver needed

LED Lifespan≥50,000 hours to half brightness
Environmental GradeOperating Temp-30 ℃ ~ +70 ℃ wide industrial range

Storage Temp-40 ℃ ~ +70 ℃

Humidity10% ~ 90% RH, non-condensing
ComplianceCertificationsRoHS, CE, UL industrial standard

Core Product Advantages

  1. Ultra-wide industrial temperature: Stable display under low-temperature factory, outdoor cabinet and medical cold environment

  2. Built-in WLED drive circuit: Only stable 3.3V input required, no extra LED power supply for driver board assembly

  3. Matte anti-glare surface: Suppress workshop lamp & window reflection, clear reading under ambient light

  4. Universal 20Pin single-channel LVDS interface, compatible with industrial ARM, PLC, HDMI/LVDS conversion driver boards

  5. Vibration-resistant industrial aluminum frame, standard four-corner mounting holes for one-to-one equipment replacement

  6. Long-life WLED backlight, support 24/7 unattended continuous operation for automation equipment

 Typical Application Scenarios

  1. CNC lathe, injection molding, textile machine HMI operation panel screen replacement

  2. Medical portable diagnostic equipment, patient monitoring auxiliary display terminal

  3. Industrial panel PC, workshop production line data monitoring display

  4. Casino gaming machine, slot machine main display core screen

  5. New energy charging pile, energy storage cabinet parameter monitoring screen

  6. Laboratory precision testing, weighing instrument graphic data display module

 FAQ

Q1: Does G150XGE-L05 need external WLED driver board?

A1: No, constant current LED drive chip is integrated on the rear PCB, only stable 3.3V logic power is required to light the backlight.

Q2: Can G150XGE-L04 replace G150XGE-L05 directly?

A2: Mechanical size, 20Pin LVDS pin definition and XGA timing are fully consistent, plug-and-play without program adjustment.

Q3: What is the minimum working temperature of this screen?

A3: Wide industrial grade: -30℃ ~ +70℃, suitable for unheated factory workshops and outdoor energy equipment.

Q4: Is this panel IPS wide-angle type?

A4: It adopts TN technology, horizontal viewing angle 80°, vertical 70°, cost-effective for standard industrial installation.

Q5: Does the module include touch screen?

A5: Display panel only, touch digitizer needs separate purchase and optical bonding.



Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel

G150XGE-L05 Innolux 15 inch 1024*768 lcd display panel

G150XGE-L05

15"
G150XTT01.0  AUO 15 inch 1024*768  Original panel lcd

G150XTT01.0 AUO 15 inch 1024*768 Original panel lcd

G150XTT01.0

15"
1024*768
350
700 : 1
80/80/70/80
WLED
LVDS (1 ch, 6/8-bit)
a-Si TFT-LCD, LCM
