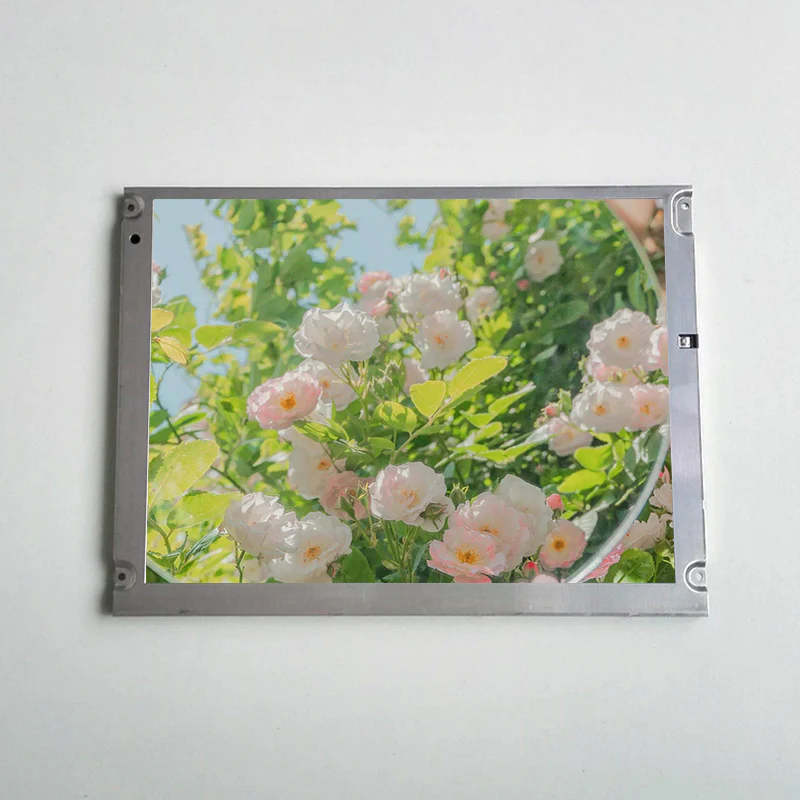

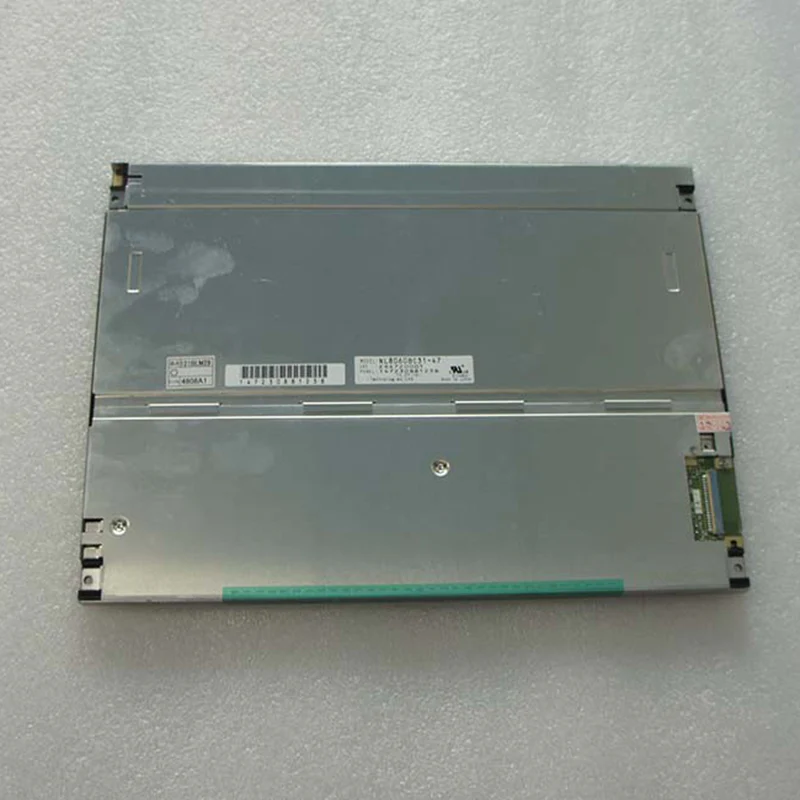

NL8060BC31-47 NEC 12.1 inch 800*600 LCD display screen
NL8060BC31-47 is a 12.1-inch industrial grade LCD module product launched by NEC Display Technologies (now NLT Technologies) using a-Si TFT-LCD technology, designed for industrial automation and embedded applications in extreme environments. This display is equipped with a 3-string WLED edge-lit backlight system (without driver) and adopts TN display technology, featuring normally white display and transmissive characteristics. It can provide 900:1 high transmissive contrast ratio and 450cd/m² standard brightness, with 80/80/80/80 (CR≥10) full viewing angles. The product uses a 20-pin single-channel LVDS (6/8-bit) interface, with 3/15ms (Tr/Td) fast response time and -30°C~+80°C ultra wide operating temperature range, complying with RoHS environmental standards. Currently available in large original factory stock.
NL8060BC31-47 NEC LCD display screen Highlights:
Ultra Wide Temperature Operating Range: -30°C~+80°C operating temperature range, no additional heating or cooling system required, can start immediately and work stably in both extremely cold and high temperature environments
High Contrast Display: 900:1 high transmissive contrast ratio offers deeper blacks, brighter whites and rich image layering, clear display even in complex light environments
Ultra-long Service Life: WLED backlight system with 70,000 hours typical backlight life, can operate stably for more than 8 years based on 24 hours of work per day
Fast Response Performance: 3/15ms (Tr/Td) fast response time, no obvious smearing, suitable for displaying dynamic industrial monitoring screens and video content
Full Viewing Angle Visibility: 80° full viewing angle, consistent color and contrast from any angle, no pressure for multiple people to watch simultaneously
Excellent Mechanical Strength: 2.0G vibration resistance, rugged and durable, able to withstand harsh transportation and use environments
Standard Interface Design: 20-pin standard LVDS interface, easy to integrate and replace, good compatibility
Ultra-thin Compact Design: Only 9.6mm thickness, saves installation space, suitable for embedded applications
NL8060BC31-47 NEC LCD display screen Specifications:
| Parameter Category | Detailed Specifications |
|---|---|
| Brand | NEC (now NLT Technologies) |
| Model Number | NL8060BC31-47 |
| Screen Size | 12.1 inches |
| Panel Type | a-Si TFT-LCD, TN Mode |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.3075×0.3075mm(H×V) |
| Aspect Ratio | 4:3 |
| Active Area | 246.0(W)×184.5(H)mm |
| Viewing Area | 249.0(W)×187.5(H)mm |
| Outline Dimension | 280.0(W)×210.0(H)×9.6(D)mm |
| Contrast Ratio | 900:1 (Typical) |
| Brightness | 450cd/m² (Typical) |
| Viewing Angle | 80/80/80/80 (CR≥10) |
| Best Viewing Angle | 6 O'clock |
| Display Colors | 262K/16.7 Million (6-bit/6-bit+Hi-FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Color Temperature | 6485K (Typical) |
| Response Time | 3/15ms (Tr/Td, Typical) |
| Refresh Rate | 60Hz |
| Backlight Type | WLED (White LED), 3 Strings, Edge-lit, Without Driver |
| Backlight Life | 70,000 Hours (Typical) |
| Interface Type | LVDS (1 Channel, 6/8-bit) |
| Connector Pins | 20 Pins |
| Driving Voltage | 3.3V (Typical) |
| Surface Treatment | Clear/Matte Optional, 3H Hard Coating |
| Display Mode | Normally White, Transmissive |
| Operating Temperature | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C |
| Vibration Resistance | 2.0G (19.6m/s², 10~2000Hz) |
| Weight | Approximately 580g (Typical) |
| RoHS Compliance | Yes |
| Production Status | Available in Stock |
Industrial Automation: CNC machine control panels, PLC HMIs, industrial robot teach pendants, process monitoring equipment, injection molding machine displays, textile machinery control systems
Medical Equipment: Portable medical instruments, medical diagnostic equipment, operating room monitoring devices, laboratory analysis instruments, medical monitoring equipment
Transportation: In-vehicle information systems, engineering vehicle displays, special vehicle navigation systems, ship navigation systems, rail transit signal systems
Energy and Resources: Oil drilling platform equipment, mine monitoring systems, wind power control systems, nuclear power plant monitoring equipment
Test and Measurement: Oscilloscopes, signal generators, spectrum analyzers, data acquisition equipment, electronic measuring instruments
FAQ:
Q1: Does NL8060BC31-47 have touch function?
A1: This product is a pure LCD display module and does not include touch function. If you need a touch assembly, you can choose the matching resistive or capacitive touch assembly version.
Q2: Can this screen be used in an environment of minus 30 degrees Celsius?
A2: Yes. The operating temperature range of NL8060BC31-47 is -30°C~+80°C, it can work normally in extremely low temperature environments without additional heating devices.
Q3: How long is the product warranty?
A3: We provide a 12-month warranty service. Product quality problems caused by non-human damage can be replaced free of charge during the warranty period.
