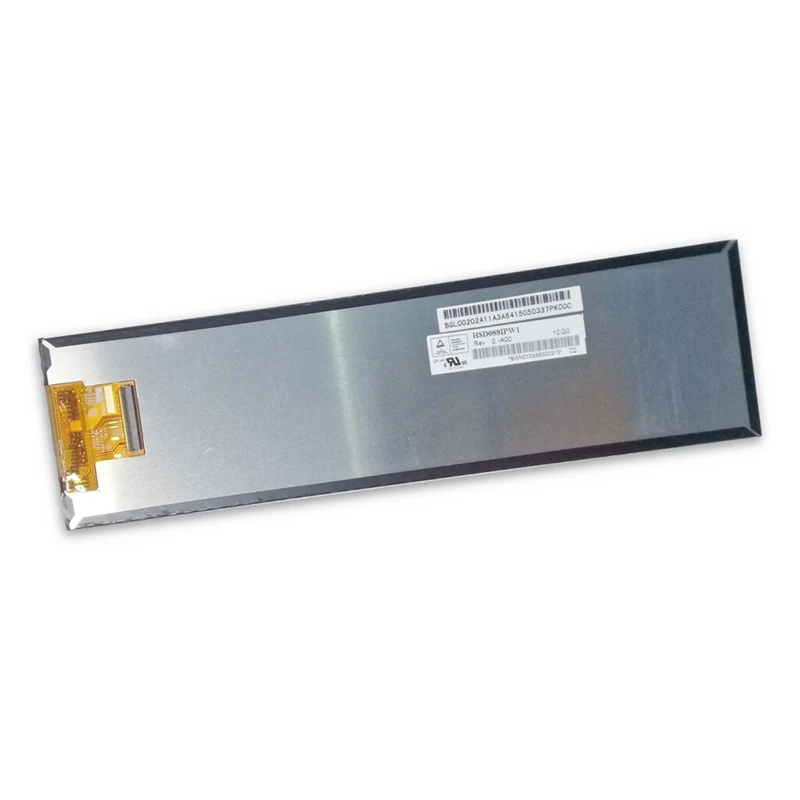

HSD088IPW1-A00  HannStar 8.8 inch 1920*480 lcd display panel
HSD088IPW1-A00 HannStar 8.8 inch 1920*480 lcd display panel
Price: $55.00
$50.00/ piece
Add to cart
HSD088IPW1-A00 HannStar
HSD088IPW1-A00 HannStar
HSD088IPW1-A00 HannStar
HSD088IPW1-A00 HannStar

HSD088IPW1-A00 HannStar 8.8 inch 1920*480 lcd display panel

Price: $55.00
$50.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

HSD088IPW1-A00 HannStar 8.8 inch 1920*480 lcd display panel

Product Information Product Specifications
Model:
HSD088IPW1-A00
Application:
Industrial
Size:
8.8"
Resolution:
1920×480(RGB) 222PPI
Brightness:
600 cd/m2 (Typ.)
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED
Signal Interface:
MIPI (4 data lanes) , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
75
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

Product Overview

Model: HSD088IPW1-A00

Manufacturer: HannStar Display

Form Factor: 8.8-inch ultra-long stretched bar (vertical strip) industrial/automotive LCD

Native Resolution: 480(RGB) × 1920 (vertical long strip, 222 PPI)

Panel Tech: IPS Pro wide-view a-Si TFT-LCD, Normally Black transmissive modeAlibaba.co...

Signal Interface: 40Pin 4-lane MIPI DSI

Stock Status: Brand new Grade A original panels, full dot inspection + 10-hour WLED aging test; bare LCD panel only (capacitive/resistive touch can be customized separately)

Main Positioning: Car center console secondary strip screen, elevator advertising bar screen, digital shelf label, PC chassis auxiliary display, industrial equipment parameter strip display

Complete Technical Specification Table

CategoryStandard Parameter
Basic Display InfoDiagonal: 8.8 inch vertical stripAspect Ratio: 1:4 ultra-long barResolution: 480(H) × 1920(V)Pixel Arrangement: Vertical RGB stripePanel Mode: IPS Pro, Normally Black Transmissive
Mechanical DimensionsActive View Area: 54.72mm (W) × 218.88mm (H)Overall Outline: 64.3(W) × 231.3(H) × 6.4(D) mm ultra-slimNet Weight: ~100g lightweight designSurface Treatment: HC hard anti-scratch coating (3H)
Optical PerformanceTypical Brightness: 600 cd/m² high brightnessStatic Contrast Ratio: 800:1 (TM measurement)Viewing Angle (CR≥10): L/R/U/D all 88° symmetric full wide viewColor Depth: 8-bit, 16.7M true colors, 50% NTSC gamutResponse Time (Tr+Td): 30ms typicalFixed Refresh Rate: 60Hz
Electrical InterfaceConnector: 40Pin 0.5mm pitch FPC 4-lane MIPI DSILogic Supply Voltage: DC 3.3V (3.0~3.6V tolerance)Panel Multi-power: VDD 3.3V / AVDD 12V / VGH 20V / VGL -10VTotal Typical Power Consumption: 4.2W
Backlight SystemLight Source: Side-edge SMD WLED arrayOnboard Circuit: Integrated LED constant current circuit on T-con PCBLED Service Life: ≥30,000 hours to half brightnessControl: BL_EN enable + PWM 0~100% continuous dimming
Environmental RatingOperating Temperature: -20 ℃ ~ +70 ℃ automotive industrial gradeStorage Temperature: -30 ℃ ~ +80 ℃Humidity: 10% ~ 90% RH non-condensingAnti-vibration: Vehicle-mounted shock resistance standard
Compliance CertificationsRoHS, Halogen Free, CE automotive display certification

Core Product Advantages

IPS Pro full four-side 88° ultra-wide viewing angle: No color shift or gray inversion at any observation angle, ideal for multi-angle viewing of vehicle and advertising equipment

600nit high brightness: Clear visible under indoor ambient light and weak sunlight, solve strip screen glare problems

Ultra-thin 6.4mm slim strip structure, light weight, easy to embed into narrow gaps of car consoles, chassis and elevators

Standard 4-lane MIPI DSI universal interface, compatible with automotive main control boards, Raspberry Pi, Android industrial motherboards and dedicated MIPI driver boards

Wide temperature range -20℃~+70℃: Stable display performance for vehicle cabins in cold winter and high-temperature equipment cabinets

Built-in WLED constant current drive circuit, no extra external LED inverter board required, simplify equipment internal wiring layout

Halogen-free & RoHS compliant, meet automotive and commercial advertising environmental standards

Typical Application Scenarios

Automobile central control auxiliary strip display, vehicle air conditioning/gear shift parameter long strip screen

Elevator wall-mounted advertising bar screen, supermarket digital shelf price label display

Desktop PC chassis vertical auxiliary monitoring screen (CPU temperature, hardware status, dynamic wallpaper)

Industrial automation equipment narrow strip parameter display, new energy equipment status indicator screen

Small vending machine information bar, portable medical equipment long strip data display terminal

Maintenance spare parts for HannStar 8.8-inch MIPI stretched bar LCD

 FAQ

Q1: Does HSD088IPW1-A00 need an external WLED driver board?

A1: No, WLED constant current control circuit is integrated on the rear T-con PCB, stable DC3.3V input can light the backlight directly.

Q2: What is the aspect ratio of this stretched bar panel?

A2: Ultra-long vertical strip with 1:4 aspect ratio, native vertical resolution 480×1920.

Q3: What signal interface does this screen adopt?

A3: 40Pin 4-lane MIPI DSI high-speed serial interface, mainstream solution for automotive strip screens.

Q4: Can this panel work in low-temperature car cabins below 0℃?

A4: Yes, operating temperature range covers -20℃ ~ +70℃, fully adapt to all seasons of vehicle-mounted environments.

Q5: Does this LCD module include touch function?

A5: Standard product only supplies bare display panel; touch glass needs separate customized bonding processing.



Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
HSD088IPW1-A00  HannStar 8.8 inch 1920*480 lcd display panel

HSD088IPW1-A00 HannStar 8.8 inch 1920*480 lcd display panel

HSD088IPW1-A00

8.8"
1920×480(RGB) 222PPI
600 cd/m2 (Typ.)
800 : 1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED
MIPI (4 data lanes) , 40 pins Connector
a-Si TFT-LCD, LCM
HSD090JHW1-D10 HannStar 9 inch  1280*720 lcd display panel

HSD090JHW1-D10 HannStar 9 inch 1280*720 lcd display panel

HSD090JHW1-D10

9"
1280(RGB)×720, 16:9, WXGA
800 cd/m² (Typ.)
900:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
9S3P WLED, 30K hrs, No Driver
LVDS (1 ch, 8-bit), 60 pins FPC
a-Si TFT-LCD, LCM
HSD088IPW1-B00   HannStar   8.8  inch  display modules

HSD088IPW1-B00 HannStar 8.8 inch display modules

HSD088IPW1-B00

8.8"
480*1920
800 : 1
85/85/85/85
WLED
40 pins
a-Si TFT-LCD, LCM
LCD display    HSD070IDW1-E13    7.0 inth    800*480    Automotive display

LCD display HSD070IDW1-E13 7.0 inth 800*480 Automotive display

HSD070IDW1-E13

7"
800(RGB)×480, WVGA 134PPI
450 (Typ.)(cd/m²)
500 : 1 (Typ.) (TM)
75/75/60/70 (Typ.)(CR≥10)
3S9P WLED , 20K hours , No Driver
TTL (1 ch, 6/8-bit) , 60 pins FPC
a-Si TFT-LCD, LCM
