Datasheets:
Produktinformationen Produktspezifikationen
Modell:
NL8060BC31-47E
Marke:
NEC
Anwendung:
Industrie
Größe:
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
115
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
1.500 KG
Übersicht

Produkteinführung

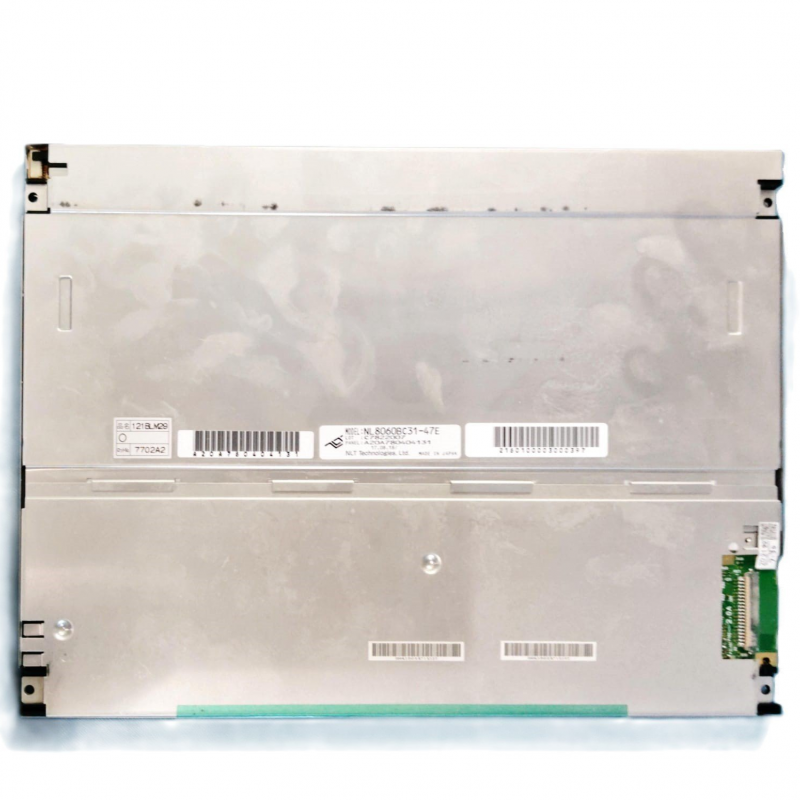

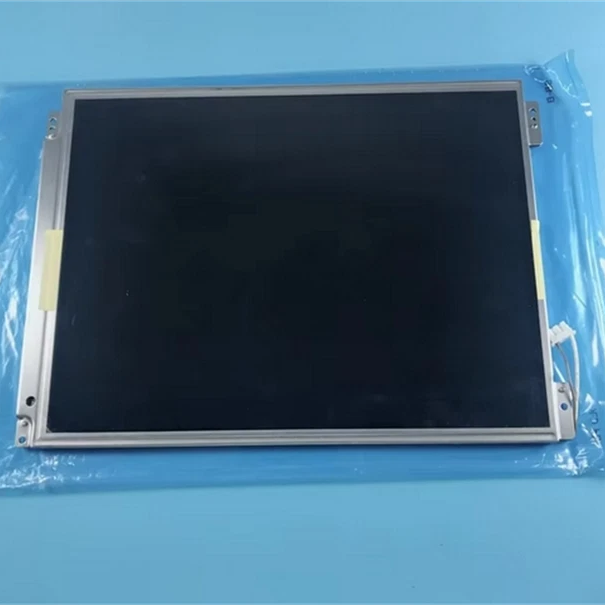

Das NLT NL8060BC31-47E ist ein 12,1-Zoll-Industriedisplaymodul für NEC-kompatible Anwendungen, die zuverlässige visuelle Ausgabe unter unterschiedlichen Betriebsbedingungen erfordern. Die a-Si TFT-LCD LCM-Konfiguration bietet eine Auflösung von 800 (RGB) × 600 SVGA, eine Bildwiederholrate von 60 Hz und ein typisches Kontrastverhältnis von 600:1. Damit eignet sich das Modul zur klaren Darstellung von Prozessdaten, Maschinenzuständen und Bedienelementen. Das normal weiße, transmissive Panel unterstützt den Betrieb von -20°C bis 70°C; der angegebene Lagerbereich liegt bei -30°C bis 80°C. Mit einer typischen Anstiegs-/Abfallszeit von 6/19 ms bietet das Modul eine praxistaugliche Reaktionszeit für industrielle Benutzeroberflächen. Die über 6-Bit und 6-Bit + Hi-FRC realisierbare Farbtiefe von 262K/16,7M Farben ermöglicht eine flexible Anpassung an unterschiedliche Anforderungen. Die definierten Außenmaße von 280 mm × 210 mm und die aktive Fläche von 246 mm × 184,5 mm erleichtern die Integration in kompakte Industrieanlagen und Steuerungssysteme.

Wichtige Merkmale

  • Das 12,1-Zoll-a-Si-TFT-LCD-LCM liefert eine konsistente, gut lesbare visuelle Ausgabe für Industrieinstrumente und Bedienoberflächen.

  • Die Auflösung von 800 (RGB) × 600 SVGA bietet ausreichend Detailtiefe für Prozessinformationen, Maschinensteuerungen und Diagnoseanzeigen.

  • Die Bildwiederholrate von 60 Hz unterstützt die visuelle Darstellung in typischen Anwendungen der Fabriksautomation, Überwachung und Prozesssteuerung.

  • Das typische Kontrastverhältnis von 600:1 und der normal weiße transmissive Betriebsmodus ermöglichen eine klare Unterscheidung von Oberflächenelementen bei unterschiedlichen Umgebungsbedingungen.

  • Die typische Anstiegs-/Abfallszeit von 6/19 ms sorgt für eine praxistaugliche Displayreaktion auf dynamische Anlagenbedienoberflächen.

  • Die Farbtiefe von 262K/16,7M Farben über 6-Bit und 6-Bit + Hi-FRC bietet flexible Möglichkeiten für kompatible Systemarchitekturen.

  • Der angegebene Betriebsbereich von -20°C bis 70°C und der Lagerbereich von -30°C bis 80°C unterstützen den Einsatz in unterschiedlichen industriellen Umgebungen.

  • Die definierten Außenmaße von 280 mm × 210 mm, die aktive Fläche von 246 mm × 184,5 mm und der Pixelabstand von 0,1025 mm × 0,3075 mm erleichtern die mechanische und elektrische Integrationsplanung.

Anwendungen

  • Industrielle HMI-Systeme

  • Fabriksautomations- und Prozesssteuerungsoberflächen

  • Industrielle Überwachungs- und Bedienpanels

  • Schnittstellen für maschinelles Sehen

  • Prüf- und Messgeräte

  • Diagnose- und Instrumentierungssysteme

Häufig gestellte Fragen

Q1: Welche Displayauflösung bietet das NL8060BC31-47E?

A: Das NL8060BC31-47E bietet eine Auflösung von 800 (RGB) × 600 SVGA.

Q2: Welche Paneltechnologie und welcher Anzeigemodus werden im Modul verwendet?

A: Das Modul verwendet ein a-Si TFT-LCD LCM mit normal weißem, transmissivem Anzeigemodus.

Q3: Wie lauten der Betriebs- und der Lagerbereich?

A: Der angegebene Betriebsbereich liegt bei -20°C bis 70°C, der Lagerbereich bei -30°C bis 80°C.

Q4: Welche Außenmaße und welche aktive Anzeigefläche weist das Modul auf?

A: Die Außenmaße betragen 280 mm (H) × 210 mm (V), die aktive Anzeigefläche misst 246 mm (H) × 184,5 mm (V).

Q5: Welche Bildwiederholrate und welches Kontrastverhältnis sind für das Display angegeben?

A: Das Modul unterstützt eine Bildwiederholrate von 60 Hz und besitzt ein typisches Kontrastverhältnis von 600:1.

Q6: Welche Konfigurationen für die Farbtiefe sind verfügbar?

A: Das Display unterstützt eine Farbtiefe von 262K/16,7M Farben über 6-Bit und 6-Bit + Hi-FRC.

Q7: Welche Reaktionszeit ist für das NL8060BC31-47E angegeben?

A: Das Modul besitzt eine typische Anstiegs-/Abfallszeit von 6/19 ms.

Q8: Welcher Pixelabstand ist für das Display angegeben?

A: Der angegebene Pixelabstand beträgt 0,1025 mm × 0,3075 mm.

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:

NL8060BC31-47E

a-Si TFT-LCD, LCM

NL8060BC31-28D

800(RGB)×600, SVGA 82PPI
350 cd/m² (Typ.)
600 : 1 (Typ.) (TM)
70/70/45/55 (Typ.)(CR≥10)
2 pcs CCFL , No Driver
LVDS (1 ch, 6-bit) , Connector 20 pins
a-Si TFT-LCD, LCM

NL8060BC31-27D

800(RGB)×600, SVGA 82PPI
400 cd/m² (Typ.)
600:1 (Typ.) (TM)
70/70/45/55 (Typ.)(CR≥10
CCFL [2 pcs] , W/O Driver
CMOS (1 ch, 6-bit) 41 pins Connector
a-Si TFT-LCD, LCM

NL8060BC31-27

800(RGB)×600, SVGA 82PPI
400 cd/m² (Typ.)
600:1 (Typ.) (TM)
70/70/45/55 (Typ.)(CR≥10)
CCFL [2 pcs] , W/O Driver
CMOS (1 ch, 6-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
