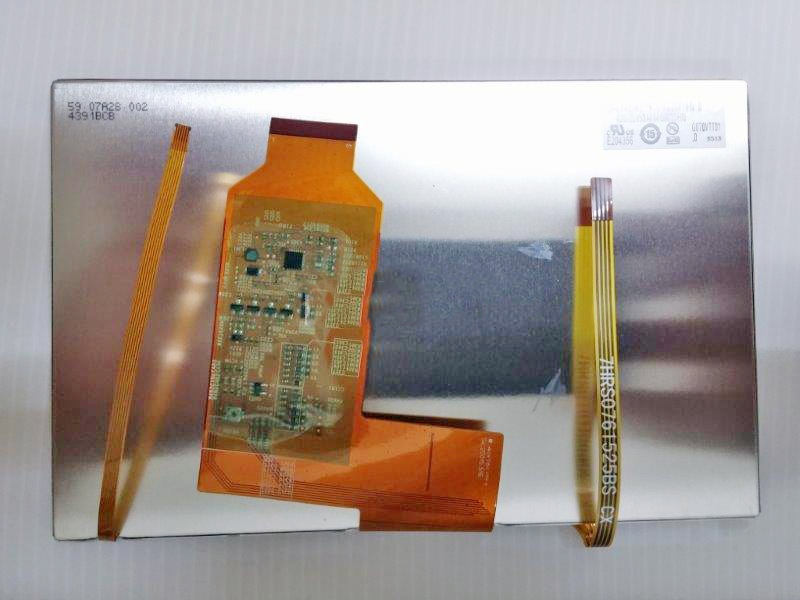

G070Y2-L01 7.0" lcd display screens for INNOLUX

Name: G070Y2-L01 7.0" lcd display screens for INNOLUX
Brand: INNOLUX
Price: 120.0 USD

Price: $125.00

$120.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

G070Y2-L01 7.0" lcd display screens for INNOLUX

Product Information Product Specifications

Model:

G070Y2-L01

Brand:

INNOLUX

Application:

Tablet

Size:

Resolution:

800(RGB)×480, WVGA 133PPI

Brightness:

500 cd/m² (Typ.)

Contrast Ratio:

600:1 (Typ.) (TM)

Viewing Angle:

70/70/60/60 (Typ.)(CR≥10)

Lamp Type:

WLED , 50K hours , With LED Driver

Signal Interface:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

115

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

G070Y2-L01 7.0" lcd display screens for INNOLUX

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

G070Y2-L01 7.0" lcd display screens for INNOLUX

G070Y2-L01

800(RGB)×480, WVGA 133PPI

500 cd/m² (Typ.)

600:1 (Typ.) (TM)

70/70/60/60 (Typ.)(CR≥10)

WLED , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G070VTT01.0 7" lcd display panel for AUO

G070VTT01.0

800×480(RGB), WVGA 133PPI

380 cd/m² (Typ.)

500:1 (Typ.) (TM)

65/65/50/60 (Typ.)(CR≥10)

WLED [8S3P] , 10K hours , W/O Driver

Parallel RGB (1 ch, 6-bit) , 40 pins FPC

LTPS TFT-LCD, LCM

TCG070WVLQAPFA-AA00 7" display modules for Kyocera

TCG070WVLQAPFA-AA00

800(RGB)×480, WVGA 133PPI

280 cd/m² (Typ.)

500 : 1 (Typ.) (TM)

85/85/85/85 (Typ.)(CR≥10)

2 strings WLED , 100K hours , No Driver

Parallel RGB (1 ch, 6-bit) , 40 pins Connector

a-Si TFT-LCD, LCM

G070Y2-T02 Rev.C3 800*480 7 inch WLED lcd display module

G070Y2-T02 Rev.C3

800(RGB)×480

500 cd/m²

600 : 1

70/70/60/60

7S2P WLED , 50K hours , No Driver

TTL (1 ch, 6/8-bit) , 60 pins FPC

a-Si TFT-LCD, LCM

G070Y2-L01 is a 7" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,G070Y2-L01 display has a resolution of 800(RGB)×480, WVGA 133PPI, Contrast Ratio is 600:1 (Typ.) (TM),Viewing Angle is 70/70/60/60 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of G070Y2-L01 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

Where can I download the datasheet for G070Y2-L01? What's the difference between it and the G070Y2-L02?

Datasheet Download: The most reliable source is the official website of Innolux. You can also search for "G070Y2-L01 datasheet" on third-party technical document websites (like DISPLAY DATASHEET) or electronics forums. Difference from L02: Typically, different suffixes within the same series (e.g., L01 vs. L02) may indicate minor variations, such as: Interface configuration (Single/Dual-channel LVDS) Surface treatment (Glare/Anti-Glare) Backlight type or lifetime Operating temperature range

Where can I buy the G070Y2-L01 or its compatible alternatives?

You can source it through the following channels: Authorized Distributors: Contact Innolux's official authorized distributors. Electronic Component Platforms: Search on major platforms like Digi-Key, Mouser, or LCSC. Specialized Display Suppliers: Many companies specializing in LCD modules (particularly in Shenzhen, China) may offer this model or pin-to-pin compatible alternatives. Always verify that they are new and original parts when purchasing.

What products or devices is this display commonly used in?

The G070Y2-L01 is an industrial-grade display, commonly found in applications that require high reliability and stability, such as: Industrial Human-Machine Interfaces (HMI) and control panels Portable medical devices Test and measurement instruments Automotive navigation and infotainment systems High-end home appliance control panels

What interface does the G070Y2-L01 use and how to drive it?

The G070Y2-L01 utilizes an LVDS (Low-Voltage Differential Signaling) interface, specifically a 2-channel, 8-bit configuration. To drive this screen, you need a display controller with an LVDS output (often integrated on a mainboard or a specific driver board). You must supply the correct power (typically 3.3V and 12V) as per its datasheet and properly connect the LVDS data pairs, clock pairs, and backlight control lines.

What are the basic specifications of the G070Y2-L01 screen?

The G070Y2-L01 is a 7.0-inch TFT-LCD display panel produced by Innolux. Its key specifications are: Size: 7.0-inch (diagonal) Resolution: 800*480 Interface: LVDS (2-channel, 8-bit) Brightness: 500 cd/m² (Typical) Contrast Ratio: 600:1 (Typical)
