Innolux M170EGE-L20 17" 1280x1024 LCD Panel
Innolux M170EGE-L20 17" 1280x1024 LCD Panel
Price: $80.00
$72.00/ piece
Add to cart
Innolux M170EGE-L20 17" 1280x1024 LCD Panel

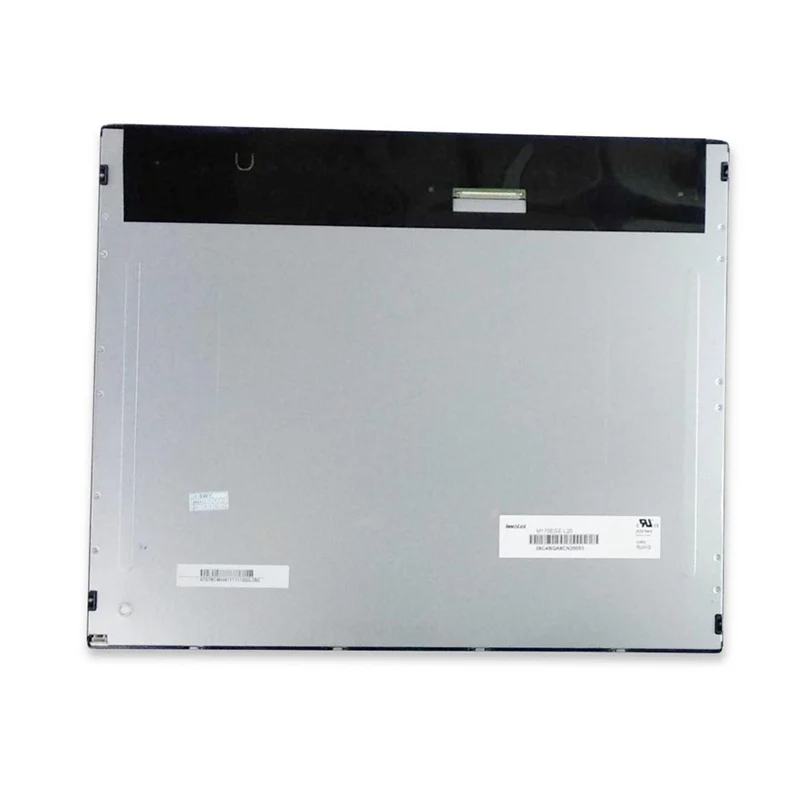

Innolux M170EGE-L20 17 inch 1280x1024 SXGA TFT LCD panel front view
Screen display showing native 5:4 aspect ratio 1280x1024 resolution on M170EGE-L20 without stretching
Innolux M170EGE-L20 17 inch 1280x1024 SXGA TFT LCD panel front view
Screen display showing native 5:4 aspect ratio 1280x1024 resolution on M170EGE-L20 without stretching

Innolux M170EGE-L20 17" 1280x1024 LCD Panel

Price: $80.00
$72.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Innolux M170EGE-L20 17" 1280x1024 LCD Panel

Product Information Product Specifications
Model:
M170EGE-L20
Brand:
INNOLUX
Application:
Industrial
Size:
17"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
2000
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
4.000 KG
Overview

The Innolux M170EGE-L20 is a highly reliable 17.0-inch TFT-LCD display module featuring a native 1280x1024 (SXGA) resolution in the classic 5:4 aspect ratio. Unlike modern widescreen panels, this 17" screen provides a distortion-free, square-format display that is perfectly optimized for legacy medical imaging systems, industrial CNC controllers, and surveillance monitoring software. The M170EGE-L20 replacement panel delivers excellent color accuracy, high contrast, and long-term operational stability. At ZYLCDShop, we supply 100% original Innolux modules, rigorously tested for zero dead pixels and flawless performance, ensuring your critical medical or industrial equipment stays online without costly software redesigns.

Key Features of the Innolux 17" SXGA LCD Panel

  • Classic 5:4 Aspect Ratio: Native 1280×1024 pixels maintain a perfect square format, eliminating the stretched images and black bars that occur when using 16:9 widescreens on legacy medical and industrial systems.

  • Exceptional Color & Contrast: High-quality TN/IPS panel technology (depending on revision) delivers crisp text, accurate grayscale rendering, and deep blacks essential for diagnostic imaging and precision machining.

  • Energy-Efficient LED Backlight: WLED backlighting provides uniform brightness, reduces heat generation, and extends the display's lifespan compared to older CCFL models.

  • Standard LVDS Interface: Equipped with a reliable LVDS signal interface for seamless integration with standard industrial motherboards and medical imaging host boards.

  • Long-Term Availability: Designed for the industrial and medical markets, this panel supports long product lifecycles, minimizing the risk of forced obsolescence for your equipment.

  • Rugged Industrial Build: Built to withstand the demands of 24/7 hospital operation and harsh factory floor environments.

Technical Specifications

ParameterDetails
ManufacturerInnolux (Chimei Innolux)
Model NumberM170EGE-L20
Screen Size17.0 Inch Diagonal
Resolution1280(RGB)×1024, SXGA
Aspect Ratio5:4 (Square Format)
Active Area337.92(W) × 270.34(H) mm
Outline Dimensions376.0(W) × 301.0(H) × 14.5(D) mm (Typical)
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins
Brightness300 ~ 350 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
Color Support16.7M (8-bit RGB)
Response Time8ms (Typ.)(Tr+Td)
BacklightWLED (White LED)
Operating Temp.0 ~ 50 °C (Standard Industrial)

Applications for the 17-Inch 5:4 SXGA Module

Because many critical systems are natively designed for 5:4 resolutions, the M170EGE-L20 is the preferred replacement display across demanding sectors:

  • Medical Imaging: Ultrasound machines, endoscopy monitors, patient monitoring systems, and DICOM-compliant diagnostic displays requiring accurate grayscale and square-format imaging.

  • Industrial CNC & Machinery: Fanuc, Siemens, and Mitsubishi CNC controller displays where legacy software relies on 1280×1024 UI layouts.

  • Security & Surveillance: CCTV monitoring stations and access control systems optimized for 5:4 camera feeds without cropping or stretching.

  • Financial Terminals: ATM machines, POS systems, and trading terminals requiring large, clear text and high reliability.

  • Test & Measurement: Oscilloscopes, spectrum analyzers, and automated test equipment (ATE) interfaces.

Why Source Industrial LCD Panels from ZYLCDShop?

At ZYLCDShop, we understand that a failed medical or industrial display can halt critical operations. We are your trusted B2B partner for high-quality 5:4 format panels.

  • 100% Original Innolux Guarantee: We supply authentic, brand-new M170EGE-L20 panels. No refurbished, cloned, or lower-grade substitutes.

  • Strict A-Grade QA Testing: Every 17" SXGA panel is tested for dead pixels, backlight uniformity, color accuracy, and LVDS signal integrity before dispatch.

  • Medical-Grade Packaging: We use custom anti-static ESD bags and high-density shock-proof foam to ensure your fragile display survives global transit.

  • Global Express Logistics: DHL/FedEx/UPS shipping options to hospitals, clinics, and manufacturing facilities worldwide within 3-7 business days.

  • B2B Wholesale & Long-Term Supply: Volume discounts and buffer-stock agreements available for medical OEMs and equipment manufacturers to guarantee continuous production.

Frequently Asked Questions (FAQ)

Why should I use a 5:4 screen instead of a 16:9 widescreen for my medical/industrial system?

Most legacy medical imaging software and CNC control systems were natively programmed for a 1280×1024 (5:4) resolution. If you install a 16:9 widescreen, the image will either stretch horizontally, appear squashed, or leave large black borders. The M170EGE-L20 maintains the original square format, ensuring your software displays perfectly without expensive redesigns or recalibration.

Does the M170EGE-L20 come with a touch screen (Digitizer)?

No, the M170EGE-L20 is the LCD display module only. It does not include the front touch panel (digitizer) or the front glass bezel. If your original assembly has a touch screen, you will need to carefully separate the old glass/digitizer and bond it to this new LCD panel, or purchase a complete assembly if available.

Is this screen suitable for diagnostic medical imaging?

The M170EGE-L20 provides high contrast and accurate color reproduction suitable for review and monitoring. However, for primary diagnostic use (such as reading mammograms), you must verify that your specific display meets DICOM Part 14 calibration standards and local regulatory requirements. Our technical team can provide the luminance and gamma curve data for your compliance checks.

How do I verify if the 30-pin LVDS interface matches my motherboard?

While the M170EGE-L20 uses a standard 30-pin LVDS interface, pinout configurations can sometimes vary between manufacturers. We highly recommend comparing the connector photo and pinout diagram in our datasheet with your original screen before ordering. Contact our support team if you need technical verification.

Do you offer bulk pricing for medical OEMs and refurbishers?

Absolutely. ZYLCDShop provides tiered B2B pricing for medical equipment manufacturers, refurbishment centers, and hospital maintenance departments. Contact us for a customized wholesale quote and long-term supply contract for the M170EGE-L20.

Keep Your Medical or Industrial System Running

Don't let a failed 17-inch display halt your operations. Secure your original Innolux M170EGE-L20 1280×1024 SXGA panel today. Need help verifying compatibility or DICOM compliance data? Our technical team is standing by!

Check Stock & Request Quote

Email: sales@zylcdshop.com | WhatsApp: [Your Number]

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Innolux M170EGE-L20 17" 1280x1024 LCD Panel

Innolux M170EGE-L20 17" 1280x1024 LCD Panel

M170EGE-L20

17"
Samsung LTM170E5-L03 17" Industrial LCD Display Panel  1280×1024

Samsung LTM170E5-L03 17" Industrial LCD Display Panel 1280×1024

LTM170E5-L03

17"
1280×1024 (SXGA)
250 cd/m²
600:1
85/85/85/85
CCFL
LVDS
Color TFT LCD (LCM)
Samsung LTM170E6-L04 17" Industrial LCD Display Panel  1280×1024

Samsung LTM170E6-L04 17" Industrial LCD Display Panel 1280×1024

LTM170E6-L04

17"
1280×1024 (SXGA)
250 cd/m²
600:1
89/89/89/89
CCFL
LVDS
Color TFT LCD (LCM)
Samsung LTM170E8-L02 17" Industrial LCD Display Panel 1280×1024

Samsung LTM170E8-L02 17" Industrial LCD Display Panel 1280×1024

LTM170E8-L02

17"
1280×1024 (SXGA)
250 cd/m²
600:1
89/89/89/89
CCFL
LVDS
Color TFT LCD (LCM)
