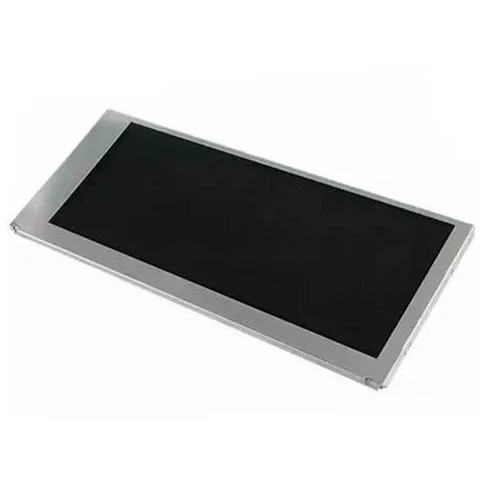

TCG062HVLQAVNN-GN20 6.2 inch display lcd 640*240 lcd module screen LVDS lcd display panel For Kyocera

TCG062HVLQAVNN-GN20 is a 6.2" a-Si TFT-LCD, LCM Display screen Product from KYOCERA.According to KYOCERA's product specification sheet,TCG062HVLQAVNN-GN20 display has a resolution of 640(RGB)×240, HVGA 109PPI, Contrast Ratio is 500 : 1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 40K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6-bit) , Connector 30 pins,Brightness is 500 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TCG062HVLQAVNN-GN20 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
