P1040SVN1MEAB Tianma  10.4 inch 800*600 lcd display panel
P1040SVN1MEAB Tianma 10.4 inch 800*600 lcd display panel
Price: $125.00
$119.00/ piece
Add to cart
P1040SVN1MEAB Tianma  10.4 inch 800*600 lcd display panel

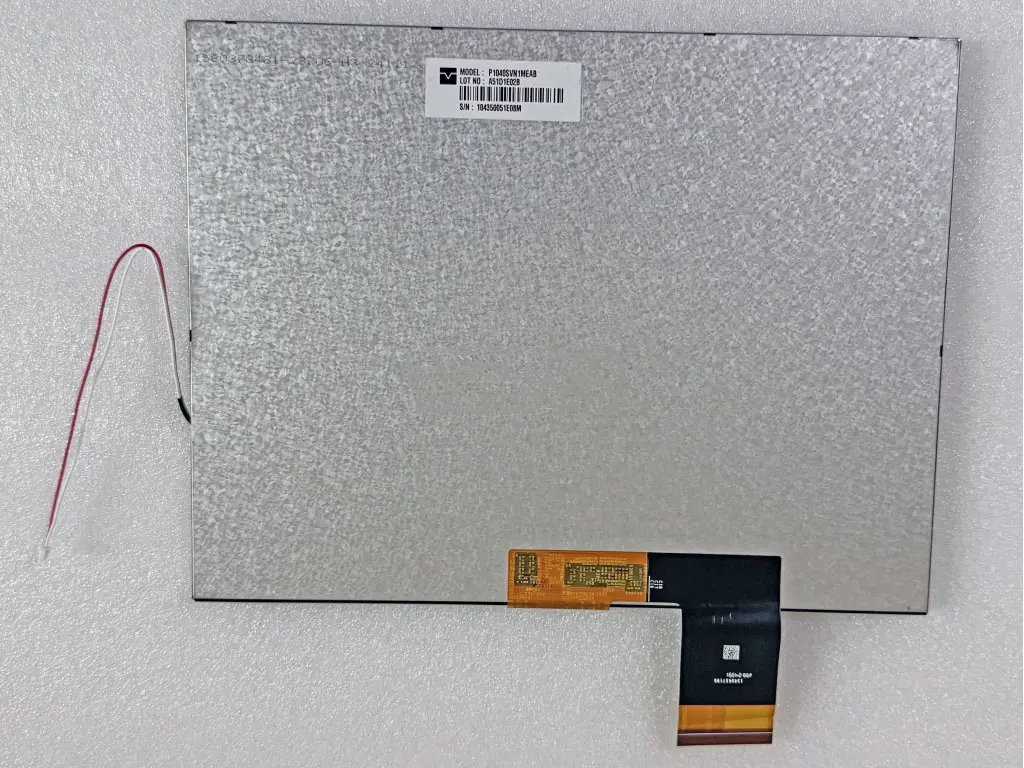

P1040SVN1MEAB  Tianma image 1

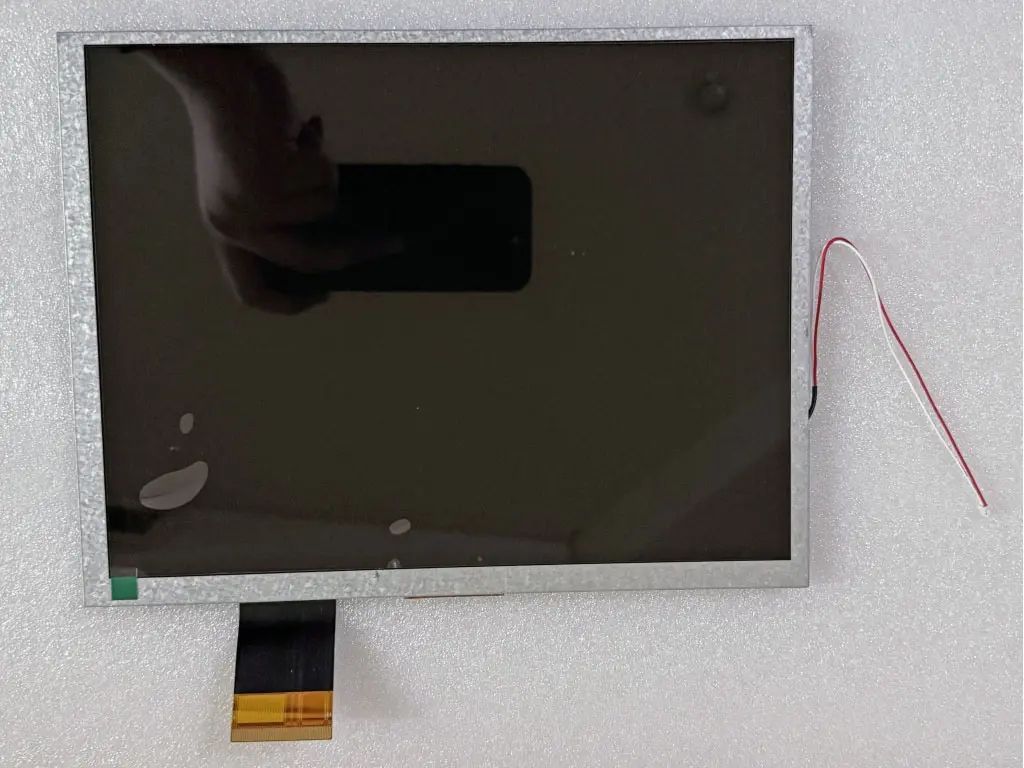

P1040SVN1MEAB  Tianma image 2
P1040SVN1MEAB  Tianma image 3
P1040SVN1MEAB  Tianma image 1
P1040SVN1MEAB  Tianma image 2
P1040SVN1MEAB  Tianma image 3

P1040SVN1MEAB Tianma 10.4 inch 800*600 lcd display panel

Price: $125.00
$119.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

P1040SVN1MEAB Tianma 10.4 inch 800*600 lcd display panel

Product Information Product Specifications
Model:
P1040SVN1MEAB
Brand:
TIANMA
Application:
Industrial
Size:
10.4"
Resolution:
800*600
Brightness:
350
Contrast Ratio:
500:1
Viewing Angle:
70/70/60/70
Lamp Type:
WLED
Signal Interface:
60 pins
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60
Active Area:
211.2×158.4
Outline:
228.4×175.4×6.5
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-20 ~ 70 °C
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
365
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

TIANMA Microelectronics is a leading global supplier of industrial display panels, accounting for more than 28% of global industrial grade TFT-LCD panel shipments in 2024, ranking among the top three in the world for seven consecutive years, and has an absolute market advantage in the field of 4:3 classic aspect ratio industrial displays. P1040SVN1MEAB is a 10.4-inch SVGA 4:3 industrial grade TFT-LCD module specially designed by TIANMA for traditional industrial equipment upgrade and replacement, featuring 800(RGB)×600 resolution with 96PPI pixel density, delivering clear and stable display effects.


This product adopts a-Si TN display technology, providing 350 cd/m² typical brightness and 500:1 typical contrast ratio with natural color reproduction. It supports 262K/16.2M colors and 50% NTSC color gamut, meeting the basic color requirements of industrial and medical applications. Equipped with a 60-pin parallel RGB(TTL) 1-channel 6/8-bit interface, it offers stable transmission and is widely compatible with various traditional embedded master chips. It adopts matte anti-glare surface treatment, effectively reducing ambient light reflection. The product adopts industrial grade wide temperature design, operating in a temperature range of -20°C to 70°C, storing in a temperature range of -30°C to 80°C, and has a backlight lifespan of up to 30,000 hours. It was mass-produced in Q4 2022 and is currently in stable supply status with approximately 510 pieces in global stock (as of May 2026).


P1040SVN1MEAB Tianma  lcd display panel Highlights:

4:3 Classic Industrial Aspect Ratio:Perfectly adapts to the UI layout of traditional industrial and medical equipment, can be directly upgraded and replaced without modifying software, greatly reducing upgrade costs.

Industrial Grade Wide Temperature Design:-20°C to 70°C ultra-wide operating temperature range, adapting to various harsh environments such as extreme cold and high temperature, meeting all-weather use requirements.

Standard TTL Interface:Widely compatible with mainstream embedded master chips such as STM32, NXP, Rockchip, Allwinner, etc., especially suitable for the upgrade and transformation of old equipment, with short development cycle.

30,000 Hours Long-Life Backlight:Adopts high-quality WLED backlight, with an average mean time between failures (MTBF) of more than 5 years, greatly reducing equipment maintenance costs.

Matte Anti-Glare Design:Effectively reduces ambient light reflection and glare, reduces visual fatigue during prolonged use, and improves operation comfort.

TIANMA Original Quality Assurance:World-leading industrial display manufacturing process and strict quality control system ensure good product consistency and high reliability, passing multiple industrial grade reliability tests.


P1040SVN1MEAB Tianma  lcd display panel Specifications

Parameter CategoryDetailed Specifications
BrandTIANMA Microelectronics
ModelP1040SVN1MEAB
Panel Typea-Si TFT-LCD, LCM (Liquid Crystal Module)
Diagonal Size10.4 Inches
Aspect Ratio4:3 (Classic Industrial Aspect Ratio)
Resolution800(RGB)×600 (SVGA)
Pixel Density96PPI
Pixel ArrangementRGB Vertical Stripe
Pixel Pitch0.264×0.264 mm (H×V)
Active Area211.2(W)×158.4(H) mm
Viewable Area214.2(W)×162.5(H) mm
Outline Dimension228.4(W)×175.4(H)×6.5(T) mm (Maximum)
Module Thickness6.2±0.3 mm (Typical)
Module Weight360g (Typical)
Display ModeTN, Normally White, Transmissive
Optimal Viewing Direction6 O'clock
Surface TreatmentMatte, Anti-Glare
Brightness350 cd/m² (Typical)
Contrast Ratio500:1 (Typical, Transmission)
Viewing Angle70°/70°/60°/70° (Typical, CR≥10)
Display Colors262K Colors (6-bit) / 16.2M Colors (6-bit+FRC)
Color Gamut50% NTSC
Response Time25ms (Typical, Tr+Td)
Refresh Rate60Hz
Backlight TypeWLED White LED, 3S12P Configuration, Edge-Lit, Without Driver IC
Backlight Lifespan30,000 Hours (Typical, Luminance Decay to 50% of Initial Value)
Signal InterfaceParallel RGB(TTL), 1 Data Lane, 6/8-bit, 60-pin FPC Connector
Input Voltage3.3V(VCC)/11V(AVDD)/25V(VGH)/-7.0V(VGL) (Typical)
Operating Temperature-20℃ ~ 70℃ (Industrial Grade)
Storage Temperature-30℃ ~ 80℃
Mounting MethodNo Mounting Holes (Customizable)
Production StatusIn Mass Production
Environmental CertificationRoHS Compliant
Global StockApproximately 510 pieces (As of May 2026)


P1040SVN1MEAB Tianma  lcd display panel Applications:

Industrial Control and HMI Interfaces:Specially designed for traditional PLC control panels, automation equipment displays, data acquisition terminals, CNC machine tool operation panels. The 4:3 aspect ratio perfectly adapts to the UI layout of old equipment, making it the first choice for industrial equipment screen upgrade and replacement.

Medical and Healthcare Devices:Used in portable blood glucose meters, blood pressure monitors, ECG devices, infusion pumps, ventilators and other medical equipment. The stable and reliable display effect ensures accurate reading of medical data.

Automotive and Construction Machinery Displays:Suitable for car center consoles, car navigation, excavators, loaders, forklifts and other construction machinery monitoring screens. The wide temperature design adapts to harsh working conditions.

Self-Service Terminals and Commercial Equipment:Applied to self-service vending machines, queuing machines, bank ATMs, POS cash registers, lottery machines and other embedded display scenarios. The long-life design reduces maintenance costs.

Security and Surveillance Equipment:Used in access control systems, monitoring displays, building intercom systems, elevator floor displays, etc., clearly displaying monitoring images and operation information.


FAQ:

Q1: What is the difference between P1040SVN1MEAB and P1040SVN1ME10?

A1: The parameters of the two are basically the same. The main difference lies in the production batch and supplier channel. P1040SVN1MEAB is a follow-up version of P1040SVN1ME10 with slightly improved compatibility and stability, and can be used interchangeably directly.

Q2: Does this display support touch screen integration?

A2: The standard version does not include a touch screen, but capacitive or resistive touch screen and anti-glare cover glass integration can be customized according to customer requirements.

Q3: What is the minimum order quantity for this product?

A3: Sample orders are accepted from 1 piece. Bulk orders enjoy tiered prices based on inventory status. Please contact our sales team for details.

Q4: What is the delivery time for the product?

A4: In-stock orders are usually shipped within 1-3 business days, bulk orders have a delivery cycle of 2-4 weeks, and custom orders have a delivery cycle of 6-8 weeks.

Q5: Do you provide technical support and warranty service?

A5: We provide complete technical documentation, including specifications, driver codes and hardware design references. Our professional technical team can provide full technical support. All products come with a 3-month warranty, and non-human damage can be replaced free of charge
