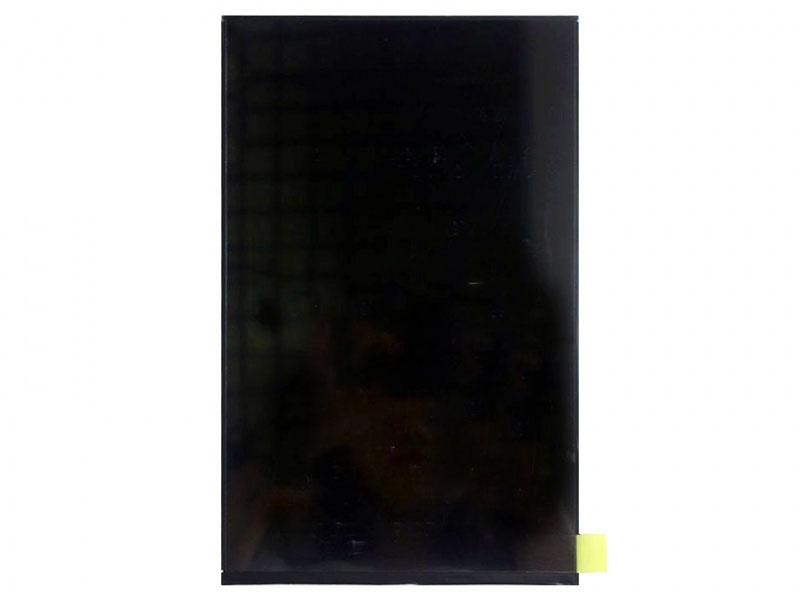

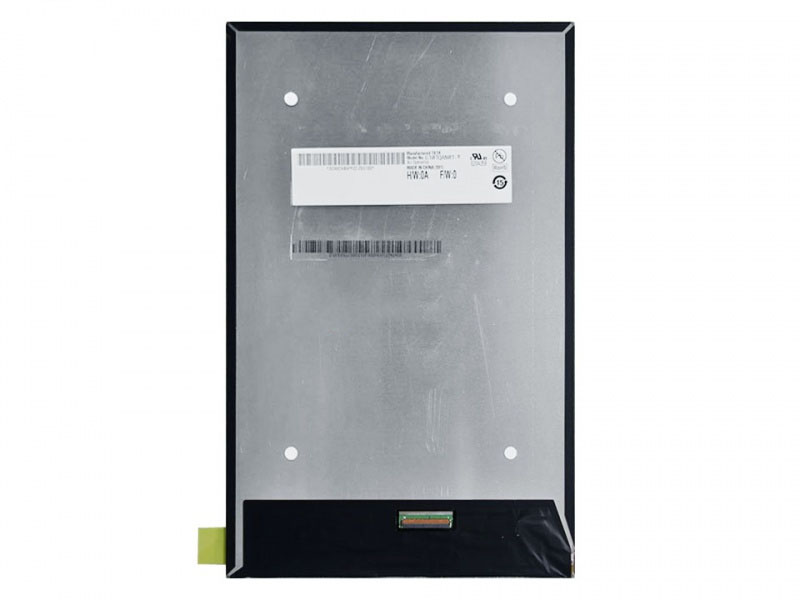

p101kda-ap1 is a 10.1" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,p101kda-ap1 display has a resolution of 1200(RGB)×1920, WUXGA 225PPI, Contrast Ratio is 1000 : 1 (Typ.) (TM),Viewing Angle is 70/70/60/70 (Typ.)(CR≥10),Lamp Type is 4 strings WLED , 15K hours , No Driver,Signal Interface is MIPI (4 data lanes) , Connector 51 pins,Brightness is 400 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of p101kda-ap1 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
