Yes, a specific power supply sequence must be strictly followed to avoid damaging the module. According to the datasheet guidelines, logic signals should only be applied after the LCD power supply (VDC) has stabilized. When powering down, you must turn off the signals before turning off VDC. If the backlight (VDCB) turns on before the LCD operates, or if the LCD turns off before the backlight, the display may momentarily show a white screen or internal circuits could be damaged

You can find the detailed PDF datasheet for this model on professional electronic component datasheet websites. Searching for "NL3224AC35-01 datasheet" on sites like Alldatasheet, Elcodis, or ic-on-line will provide access to the original technical document released by NEC (Document No. EN0495EJ1V1DS00). Additionally, some specialized LCD supplier websites, such as lcdquote.com, may also offer datasheet downloads or detailed specifications

Based on market feedback, this older display model has some typical issues. The most common problems include the display becoming dim or turning black (usually due to built-in inverter failure or aging of the CCFL backlight), and the appearance of severe static or lines across the screen. Additionally, its U-shaped CCFL backlight design may have a shorter lifespan compared to later technologies

NL3224AC35-01 uses an Analog RGB interface for signal transmission, which is connected via a 30-pin connector. Regarding power supply, it requires a typical input of 9.5V for two separate circuits: one (VDC) for the processor and drivers, and another (VDCB) specifically for the backlight

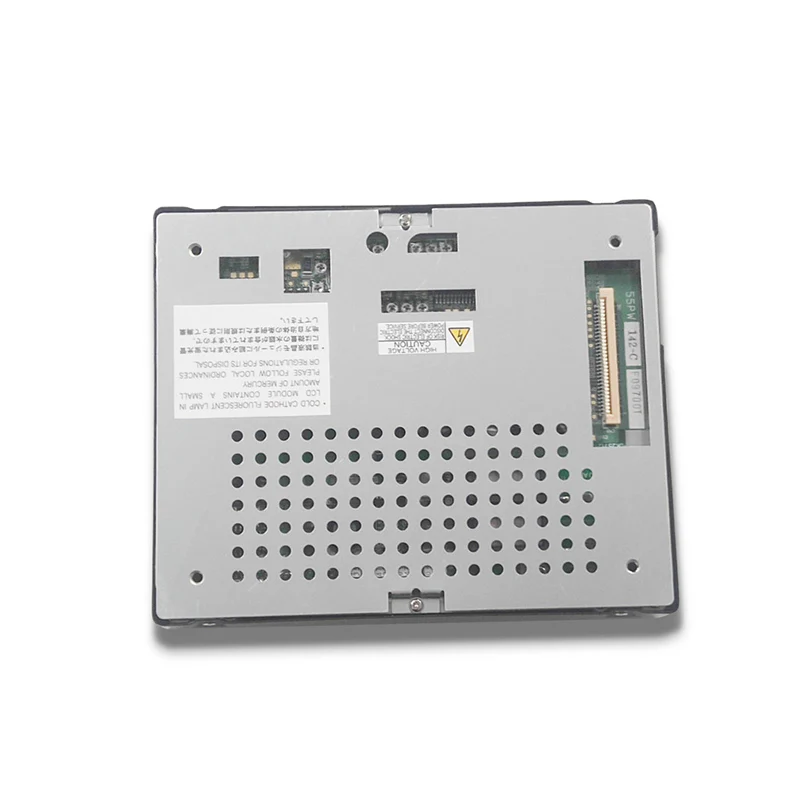

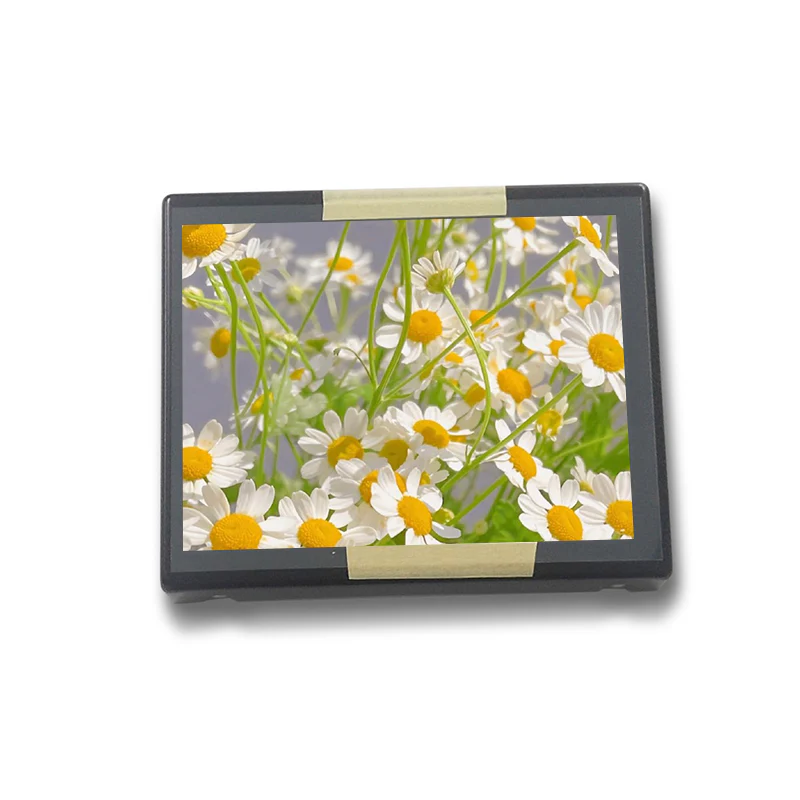

NL3224AC35-01 is a 5.5-inch LCD module manufactured by NEC. Its standard resolution is 320 x 240 pixels, which is also known as QVGA (Quarter Video Graphics Array) resolution. The diagonal measurement of the display area is 14 cm
