Datasheets:
Produktinformationen Produktspezifikationen
Modell:
NL10260BC19-01D
Marke:
NEC
Anwendung:
Industrie
Größe:
Entschließung:
1024(RGB)×600, WSVGA 133PPI
Helligkeit:
300 cd/m² (Typ.)
Kontrastverhältnis:
700:1 (Typ.) (TM)
Betrachtungswinkel:
88/88/88/88 (Typ.)(CR≥10)
Lampentyp:
WLED , 26K hours , Without Driver
Signalschnittstelle:
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
115
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
0.500 KG
Übersicht

Produkteinführung

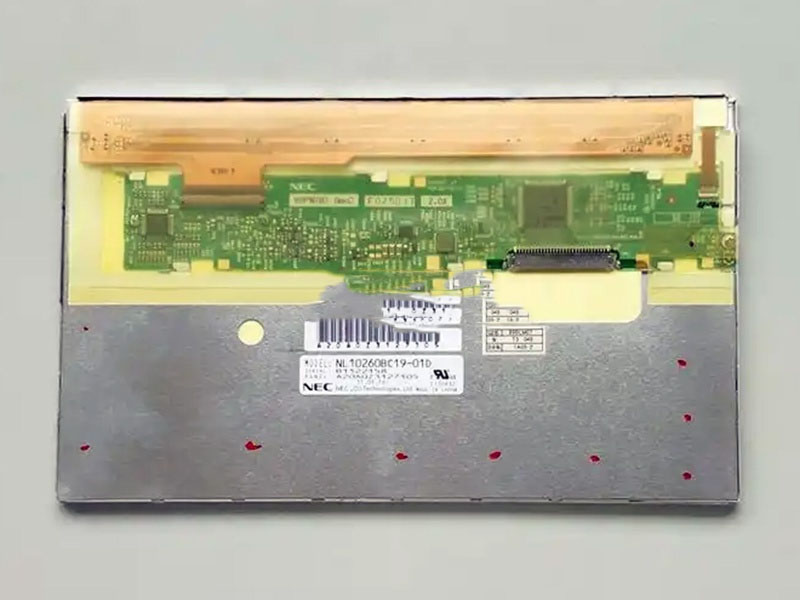

Das NLT NL10260BC19-01D ist ein 8,9-Zoll-a-Si-TFT-LCD-Modul für kompakte industrielle Display-Systeme, einschließlich Anwendungen, die NEC-Kompatibilität erfordern. Das transmissive, normalerweise schwarze UA-SFT-Verfahren liefert eine klare Darstellung für Bedienfelder, Instrumentierung und eingebettete Geräte. Das Display bietet 300 Nit Helligkeit, ein typisches transmissives Kontrastverhältnis von 700:1 und eine Bildwiederholrate von 60 Hz. Die Single-Channel-LVDS-Schnittstelle unterstützt 6-Bit- und 8-Bit-Konfigurationen, während die Farbtiefen 262K und 16,7M Farben flexible Optionen für unterschiedliche Systemanforderungen bieten. Die aktive Fläche von 195,072 × 113,4 mm und der angegebene Pixel-Pitch eignen sich für kompakte Display-Konstruktionen. Mit einem Betriebstemperaturbereich von -20°C bis 70°C und einer typischen Hintergrundbeleuchtungslebensdauer von 26.000 Stunden ist das NL10260BC19-01D für Entwickler konzipiert, die ein kompaktes Industrie-Display in Geräte integrieren, bei denen Display-Leistung, Umweltverträglichkeit und Schnittstellenkompatibilität wichtige Kriterien sind.

Wichtige Merkmale

  • 8,9-Zoll-a-Si-TFT-LCD-Modul mit transmissivem, normalerweise schwarzem UA-SFT-Verfahren für eine klare und kompakte industrielle Darstellung

  • 300 Nit Helligkeit und typisches transmissives Kontrastverhältnis von 700:1 für eine gut lesbare Informationsdarstellung in industriellen Benutzeroberflächen

  • Single-Channel-LVDS-Schnittstelle mit Unterstützung für 6-Bit- und 8-Bit-Konfigurationen zur flexiblen Integration in kompatible Display-Systeme

  • Farbtiefenoptionen 6-Bit und 6-Bit + Hi-FRC für 262K beziehungsweise 16,7M Farben entsprechend den Systemanforderungen

  • Bildwiederholrate von 60 Hz und typische Reaktionszeit von 10/15 ms Tr/Td für eine reaktionsschnelle Displayaktualisierung

  • Angegebener Betriebstemperaturbereich von -20°C bis 70°C und Lagerungstemperaturbereich von -30°C bis 80°C für industrielle Umgebungsanforderungen

  • Typische Lebensdauer der Hintergrundbeleuchtung von 26.000 Stunden für den langfristigen Einsatz in kompakten Industriegeräten

  • Typischer Spannungsbedarf von 28,35 V mit einem Maximum von 31,5 V sowie aktive Fläche von 195,072 × 113,4 mm

Anwendungen

  • Industrielle Bedienfelder und Bedienoberflächen

  • Industrielle Instrumentierung und eingebettete Steuerungssysteme

  • Test- und Messgeräte

  • Automatisierungs- und Prozesssteuerungssysteme

  • Diagnose- und Überwachungsoberflächen

  • NEC-kompatible kompakte industrielle Display-Systeme

Häufig gestellte Fragen

Q1: Welche Display-Technologie und welches Betriebsmodus verwendet das NL10260BC19-01D?

A: Das NL10260BC19-01D ist ein 8,9-Zoll-a-Si-TFT-LCD-Modul mit transmissivem, normalerweise schwarzem UA-SFT-Displaymodus.

Q2: Welche Helligkeits- und Kontrastwerte sind angegeben?

A: Für das Display sind 300 Nit Helligkeit und ein typisches transmissives Kontrastverhältnis von 700:1 angegeben.

Q3: Welche Schnittstelle und welche Farbkonfigurationen werden unterstützt?

A: Das Display verwendet eine Single-Channel-LVDS-Schnittstelle, die 6-Bit- und 8-Bit-Konfigurationen unterstützt. Für 262K Farben ist eine Farbtiefe von 6-Bit und für 16,7M Farben eine Farbtiefe von 6-Bit + Hi-FRC angegeben.

Q4: Wie groß sind die aktive Fläche und der Pixel-Pitch?

A: Die aktive Displayfläche beträgt 195,072 × 113,4 mm. Der angegebene Pixel-Pitch liegt bei 0,0635 × 0,1890 mm.

Q5: Welche Betriebs- und Lagerungstemperaturbereiche sind angegeben?

A: Der angegebene Betriebstemperaturbereich beträgt -20°C bis 70°C, der Lagerungstemperaturbereich -30°C bis 80°C.

Q6: Welche Lebensdauer der Hintergrundbeleuchtung ist angegeben?

A: Die typische Lebensdauer der Hintergrundbeleuchtung beträgt 26.000 Stunden.

Q7: Welche Spannungsanforderungen sind für das Display angegeben?

A: Der typische Spannungsbedarf beträgt 28,35 V, das Maximum liegt bei 31,5 V.

Q8: Eignet sich das NL10260BC19-01D für industrielle Anwendungen?

A: Ja. Das Display ist für industrielle Anwendungen angegeben und mit NEC-Systemen kompatibel. Dadurch eignet es sich für kompakte Steuerungs-, Instrumentierungs-, Überwachungs-, Test-, Mess- und Automatisierungsgeräte.
