New 10.1 inch CN100FPC-V1 touch Screen Panel CN100FPCV1 CN100FPC

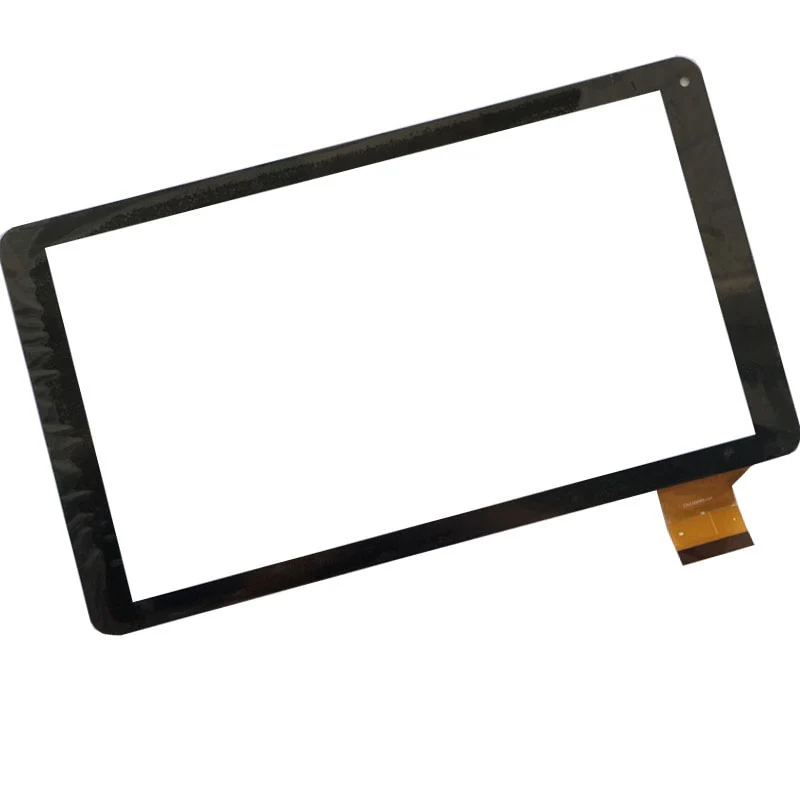

CN100FPC-V1 is a 10.1-inch projected capacitive touch glass digitizer (touch sensor only, without LCD display). It is a universal replacement touch panel, originally matched with Archos 101c Copper tablet, also widely compatible with generic 10.1-inch Android tablets, industrial control HMI, vehicle display equipment
Full Technical Specification Table
| Category | Parameter | Standard Spec |
|---|---|---|
| Basic Info | Part Number | CN100FPC-V1 / CN100FPCV1 / CN100FPC |
| Diagonal Size | 10.1 inch widescreen (16:10) | |
| Touch Type | Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 10-point multi-touch | |
| Main Controller IC | GT928 industrial touch chip | |
| Communication Interface | I2C (3.3V logic level) | |
| Mechanical Spec | Overall Outer Dimension | 257.0(W) × 159.5(H) mm |
| Visible Active Area (VA) | 223.5(W) × 126.2(H) mm | |
| Total Thickness | 1.47mm (cover glass 0.7mm + sensor 0.77mm) | |
| FPC Cable | Standard bottom tail FPC, 30Pin 0.5mm pitch | |
| Frame Silk Screen Color | Black / White / Blue optional | |
| Optical Performance | Light Transmittance | ≥83% high light transmittance |
| Cover Glass Hardness | 6H scratch-resistant surface | |
| Electrical Parameter | Working Voltage | DC 3.3V (3.0~3.6V tolerance) |
| Standby Current | ≤12mA | |
| Touch Response Time | ≤10ms fast touch response | |
| Environmental Rating | Operating Temperature | -10 ℃ ~ +60 ℃ |
| Storage Temperature | -20 ℃ ~ +70 ℃ | |
| Humidity | 10% ~ 85% RH non-condensing | |
| Compliance | Certification | CE, FCC, RoHS lead-free standard |
Universal replacement: Perfect fit for Archos 101c Copper tablet, also compatible with most generic 10.1-inch Android tablet motherboards
10-point multi-touch, fast response, support bare finger, thin glove light operation
6H hardened front glass, resistant to daily scratches from keys, metal parts
Wide temperature design, stable touch performance for vehicle-mounted and light industrial equipment
High light transmittance, no dark shadow, matches mainstream 10.1-inch 1280×800 / 1024×600 IPS LCD screens
Standard I2C interface, compatible with Android / Linux / Windows embedded systems
Multiple frame colors to match tablet shell appearance requirements
Repair & replacement for broken/cracked touch glass of Archos 101c Copper 10.1-inch tablet
Generic 10.1-inch cheap education tablet, industrial all-in-one touch digitizer replacement
Vehicle-mounted monitoring, agricultural machinery touch control display overlay touch panel
Intelligent vending machine, charging pile embedded 10.1-inch HMI touch screen
Portable medical testing equipment, environmental monitoring instrument touch input glass
This product is only touch sensor glass, does not include LCD display panel, need to match 10.1-inch LCD screen separately
Confirm the FPC cable length and pin position before replacement; CN100FPC-V1 only matches motherboards with GT928 touch chip solution
Power supply must be stable 3.3V, do not connect 5V directly, otherwise the touch controller will be burned out
After installation, use double-sided foam adhesive to fix the touch frame, avoid squeezing the FPC cable to cause touch failure
All new panels pass full touch coordinate calibration test, no dead zones, no drift before delivery
