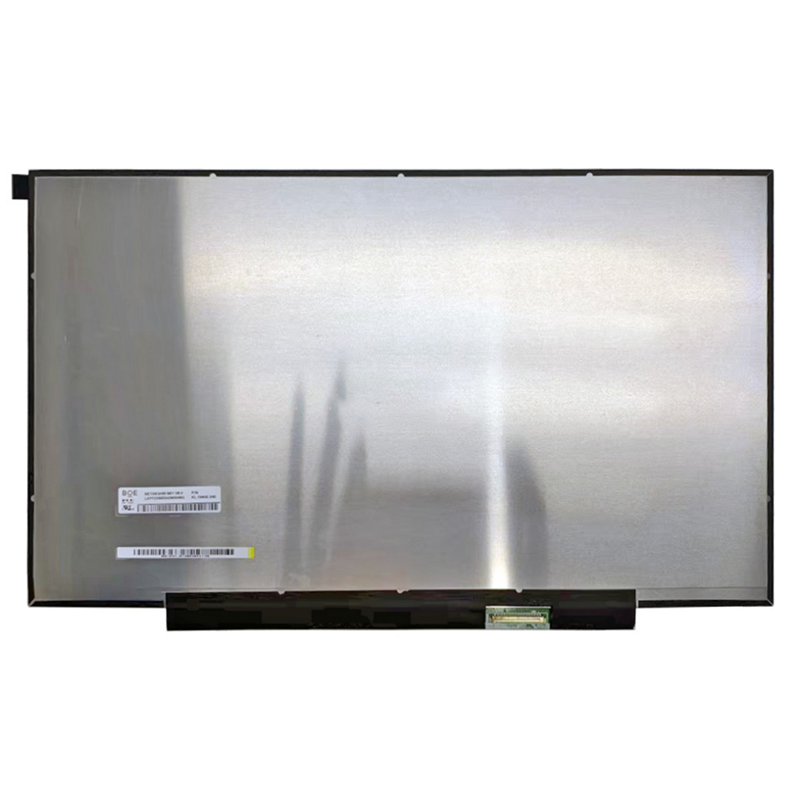

NE156QHM-N61 BOE 15.6inch 2560×1440 LCD DISPLAY
NE156QHM-N61
15.6"
2560(RGB)×1440, Quad-HD 188PPI
300 cd/m² (Typ.)
1200 : 1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
10S5P WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
a-Si TFT-LCD, LCM
P2130UXF1MA10 21.3" LCD panel for TIANMA
21.3"
1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
P2130UXF1MA00 21.3" LCD panel for TIANMA
21.3"
1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
