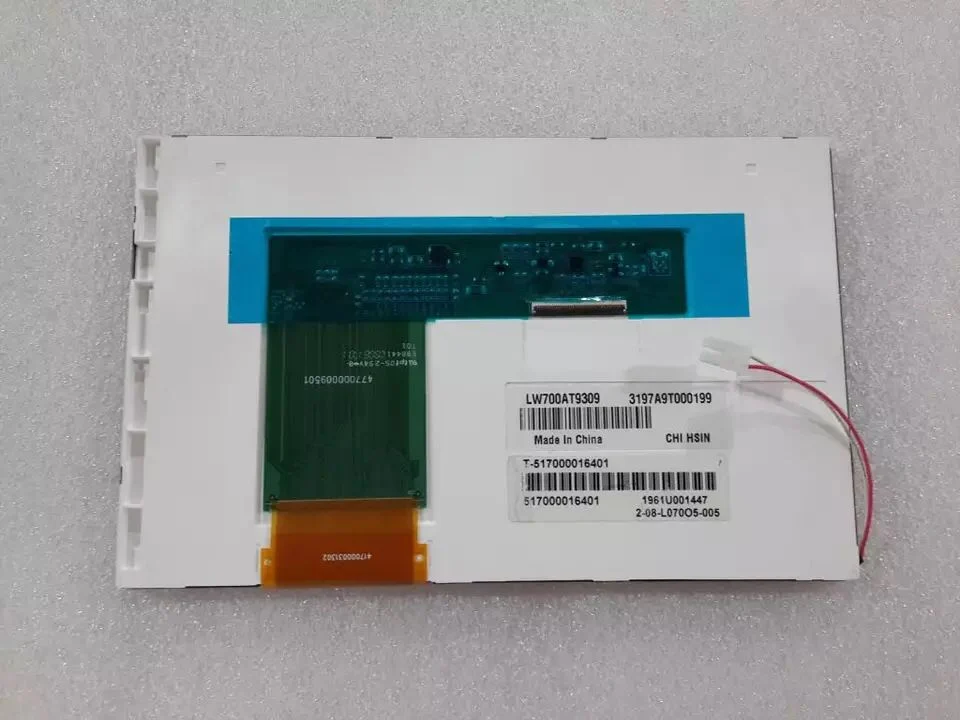

LW700AT9309 Innolux 7 Inch 800×480 WVGA TFT‑LCD Module
LW700AT9309 Innolux 7 Inch 800×480 WVGA TFT‑LCD Module
Price: $80.00
$75.00/ piece
Add to cart
Innolux LW700AT9309 7 inch 800*480 WVGA 40‑pin TTL matte tft lcd module
Innolux LW700AT9309 7 inch 800*480 WVGA 40‑pin TTL matte tft lcd module
Innolux LW700AT9309 7 inch 800*480 WVGA 40‑pin TTL matte tft lcd module
Innolux LW700AT9309 7 inch 800*480 WVGA 40‑pin TTL matte tft lcd module

LW700AT9309 Innolux 7 Inch 800×480 WVGA TFT‑LCD Module

Price: $80.00
$75.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LW700AT9309 Innolux 7 Inch 800×480 WVGA TFT‑LCD Module

Product Information Product Specifications
Model:
LW700AT9309
Brand:
INNOLUX
Application:
Industrial
Size:
7"
Resolution:
800(RGB)×480, WVGA, 133PPI
Brightness:
350 cd/m2 (Typ.)
Contrast Ratio:
400 : 1 (Typ.) (TM)
Viewing Angle:
70/70/60/70 (Typ.)(CR≥10)
Lamp Type:
WLED
Signal Interface:
TTL(1 ch,6-bit),40 pins connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
75
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview
LW700AT9309 Innolux 7 Inch 800×480 WVGA TFT‑LCD Module

The LW700AT9309 is a 7‑inch TN‑mode assembled LCM from Innolux with WVGA 800×480 resolution. It adopts 40‑pin 1‑channel 6‑bit TTL RGB interface, matte anti‑glare surface, integrated WLED backlight without on‑board LED driver. It supports wide operating temperature from ‑20℃ to +70℃, good vibration resistance, widely used for embedded HMI, portable devices and old‑equipment screen replacement. We supply fully tested modules with fast global shipping and sample support.

Product Features

  • Innolux 7‑inch TN TFT‑LCD assembled module, 800×480 WVGA resolution

  • 40‑pin TTL RGB 6‑bit interface, 3.3V logic voltage, DE mode support

  • Built‑in side‑lit WLED backlight, external LED driver circuit required

  • Matte anti‑glare polarizer, reduces surface reflection for industrial environment

  • ‑20℃ ~ +70℃ wide operating temperature, 1.5G vibration resistance

  • Compact module structure, suitable for portable and embedded integration

Technical Specifications

ModelLW700AT9309
BrandInnolux
Screen Size7.0 Inch
Display Typea‑Si TFT‑LCD LCM, TN Normally‑White Transmissive
Resolution800(RGB) ×480 (WVGA),133PPI
Aspect Ratio15:9
Active Area152.4 × 91.44 mm
Outline Dimension165 × 104.44 × 5.7 mm
Brightness350 cd/m² (Typ.)
Contrast Ratio400:1 (Typ.)
Viewing Angle70/70/60/70 (Typ., CR≥10)
InterfaceTTL RGB 1‑channel 6‑bit,40‑pin connector
BacklightWLED,15000hrs lifetime, without built‑in LED driver
Display Color262K Colors,50% NTSC
Refresh Rate60Hz
Operating Temperature-20℃ ~ +70℃
Storage Temperature-30℃ ~ +80℃
Surface TreatmentMatte Anti‑Glare
Weight123g (Typ.)
ApplicationEmbedded HMI, Portable Device, Industrial Control, Screen Replacement

Applications

  • Embedded industrial HMI human‑machine interface terminals

  • Portable display equipment and handheld control units

  • Digital frame, portable media player related projects

  • Replacement for original 7‑inch 40‑pin TTL WVGA modules

Why Choose Us

  • Supply tested Innolux assembled TFT‑LCD modules for embedded projects

  • Fast worldwide shipping, support sample and bulk procurement

  • Technical tips for TTL signal matching and external LED driver selection

  • Optional service: touch overlay bonding for HMI upgrade

FAQ

Q1: Does LW700AT9309 include LED driver board?

A: WLED backlight is integrated inside module, but LED driver is not onboard. You need to prepare matching external LED driver circuit.

Q2: What signal interface does this 7‑inch module use?

A: It uses 40‑pin TTL RGB 6‑bit interface. Confirm pin definition and mechanical dimension before replacement.

Q3: Can I get datasheet and buy sample unit?

A: Datasheet available upon request. Sample order is supported, contact us for stock status and quotation.

Get In Touch

Contact us for LW700AT9309 if you need 7‑inch WVGA TTL display for embedded or portable device projects. We provide stock status, pricing and technical documents.

Tel: +86 186 8231 3413    Email: service@zylcdshop.com
