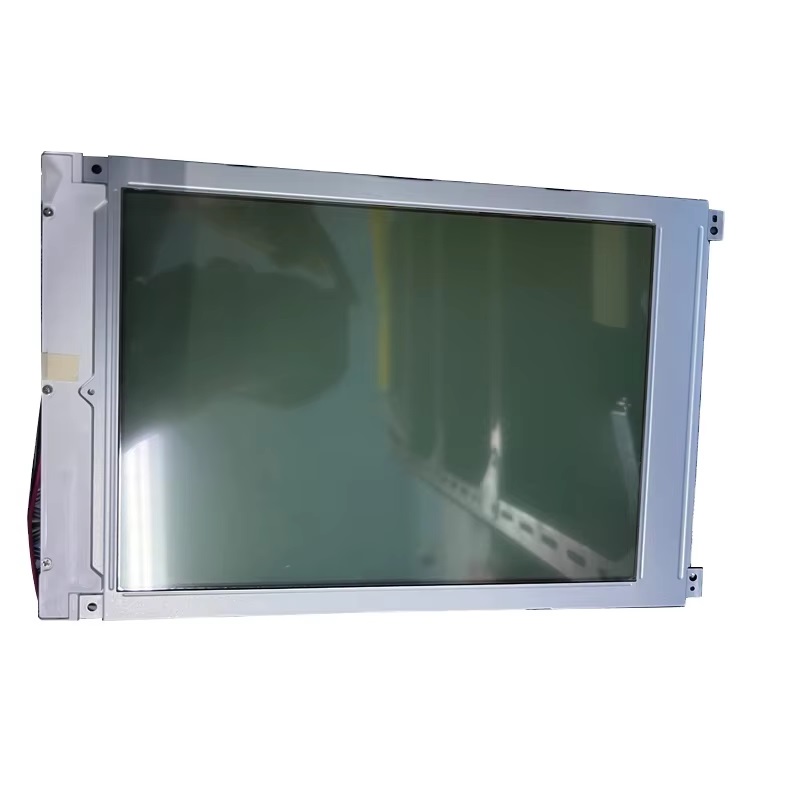

LTBSHH702J21CKS 9.4 Inch Industrial TFT LCD Display Panel
LTBSHH702J21CKS 9.4 Inch Industrial TFT LCD Display Panel
Price: $165.00
$160.00/ piece
Add to cart
LTBSHH702J21CKS 9.4 Inch
LTBSHH702J21CKS 9.4 Inch

LTBSHH702J21CKS 9.4 Inch Industrial TFT LCD Display Panel

Price: $165.00
$160.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LTBSHH702J21CKS 9.4 Inch Industrial TFT LCD Display Panel

Product Information Product Specifications
Model:
LTBSHH702J21CKS
Brand:
NAN YA
Application:
Industrial
Resolution:
640*480
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview
LTBSHH702J21CKS is an industrial-grade a-Si TFT-LCD module, widely applied in factory automation HMI, industrial all-in-one equipment, testing instruments and special equipment display terminals. This 9.4-inch landscape TFT panel adopts transmissive normally white TN display mode, equipped with edge-lit WLED backlight and standard Parallel RGB TTL FPC interface.

This display module is commonly used as replacement spare screen for imported industrial control equipment. All parameters follow official module specification standards for hardware matching, equipment maintenance and system integration verification.


Core Technical Specifications


Parameter ItemSpecification
Model NumberLTBSHH702J21CKS
Diagonal Size9.4 Inch
Display Technologya-Si TFT-LCD, TN, Transmissive, Normally White
Native Resolution800(RGB) × 480 (WVGA)
Aspect Ratio15:9 (Landscape)
Pixel ArrangementRGB Vertical Stripe
Typical Brightness350 cd/m²
Contrast Ratio500:1 (Typ.)
Viewing Angle (CR≥10)L/R:70°/70°, U/D:50°/70°, Optimum viewing: 6 o’clock
Color Depth6-bit, 262K Colors; Color Gamut ~50% NTSC
BacklightEdge-type WLED, No built-in LED driver, Lifetime: 30,000 Hours
Signal InterfaceParallel RGB TTL FPC Connector
Supply VoltageVDD = 3.3V (Typ.)
Refresh Rate60 Hz
Surface TreatmentAnti-Glare Matte, 3H Hard Coating
Operating Temperature-20°C ~ +70°C
Storage Temperature-30°C ~ +80°C
Touch FunctionBare panel without touch; resistive/capacitive touch overlay optional
Production StatusAvailable aftermarket replacement stock

Key Advantages

  1. Industrial Wide Temperature Range: Stable performance between -20℃ ~ +70℃, adapts to variable workshop environment.

  2. Matte Anti-Glare Surface: Effectively eliminates ambient light reflection, improves readability under factory lighting.

  3. Mature Industrial Hardware Compatibility: Standard RGB TTL interface, compatible with mainstream embedded industrial control mainboards.

  4. Long-Life WLED Backlight: Supports brightness adjustment via external constant-current LED driver.

  5. Standard Mechanical Outline: Widely used for replacement maintenance of many classic industrial HMI devices.

Application Scenarios

Industrial HMI & Factory Automation Control Panels

Industrial All-in-One Machine Display Replacement

Test, Measurement & Analytical Instruments

Special Equipment & Machinery On-board Displays

Legacy Imported Industrial Equipment Refurbishment

Security Monitoring Auxiliary Display Terminals


Frequently Asked Questions (FAQ)

Q1: Is LTBSHH702J21CKS original industrial TFT LCD panel?
A1: Yes. LTBSHH702J21CKS is industrial TFT LCD module. We supply Grade A tested panels in accordance with official specification requirements.
Q2: What interface does this panel use? Can LVDS or eDP driver boards drive it?
A2: It adopts Parallel RGB TTL interface. It cannot work directly with LVDS/eDP control boards; dedicated RGB TTL driver board is required.
Q3: Does this panel require external LED driver?
A3: Yes. No built-in LED driver circuit on module. External constant-current LED driver is needed for power supply and brightness control.
Q4: Can LTBSHH702J21CKS directly replace similar resolution display panels?
A4: Even with same resolution, FPC pin definition, timing sequence and mechanical dimensions differ for different models. Direct replacement without pin-to-pin verification is not recommended.
Q5: Does this LCD module come with touch screen?
A5: Standard bare panel has no touch function. Resistive or capacitive touch overlay can be bonded according to project demand.
Q6: Is it suitable for 7×24 hours continuous industrial operation?
A6: Designed for continuous indoor industrial operation within -20°C ~ +70°C. Proper ventilation and heat dissipation design are recommended for long-term 7×24h running.
Q7: Matte or glossy surface?
A7: Standard version is anti-glare matte surface with 3H hard coating; glossy version is not available.
