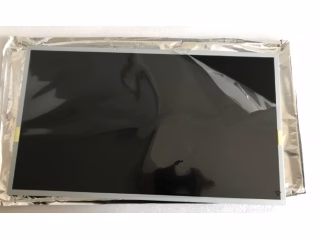

LM230WF5-TLF1 LG Display 23 inch 1920*1080 lcd display module screen
LM230WF5-TLF1 LG Display 23 inch 1920*1080 lcd display module screen
Price: $135.00
$130.00/ piece
Add to cart
LM230WF5-TLF1 LG Display
LM230WF5-TLF1 LG Display

LM230WF5-TLF1 LG Display 23 inch 1920*1080 lcd display module screen

Price: $135.00
$130.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LM230WF5-TLF1 LG Display 23 inch 1920*1080 lcd display module screen

Product Information Product Specifications
Model:
LM230WF5-TLF1
Brand:
LG
Application:
Industrial
Size:
23.0"
Resolution:
1920(RGB)×1080, FHD 95PPI
Brightness:
250 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
85/85/75/85 (Typ.)(CR≥10)
Lamp Type:
2 strings WLED , 30K hours , No Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
75Hz
Active Area:
509.184(H)×286.416(V) mm
Outline:
533.2(H)×321(V)×10.7(D) mm
Storage Temp:
-20 ~ 60 °C
Operating Temp:
0 ~ 50 °C
Support Color:
16.7M, 72% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
696
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
7.000 KG
Overview

LG Display LM230WF5-TLF1 23-Inch Full HD TFT LCD Display Module


The LG Display LM230WF5-TLF1 is a 23.0-inch Full HD TFT-LCD module designed for desktop monitors, industrial displays, professional display equipment, and custom monitor applications requiring high-resolution image quality and stable performance.

Featuring 1920 × 1080 Full HD resolution, a-Si TFT active matrix technology, LVDS 2-channel 8-bit interface, and a white LED backlight system, the LM230WF5-TLF1 provides excellent image clarity, accurate color reproduction, and reliable operation for commercial and industrial display solutions.


Key Features

Original LG Display TFT LCD module

23.0-inch widescreen display

Resolution: 1920 × 1080 pixels (Full HD)

16:9 aspect ratio

a-Si TFT-LCD active matrix technology

TN Normally White transmissive display mode

16.7M colors

RGB vertical stripe pixel arrangement

LVDS 2-channel 8-bit interface

30-pin LVDS connector

250 cd/m² brightness

1000:1 contrast ratio

Wide viewing angle performance

White LED (WLED) backlight

External LED driver required

60Hz refresh rate

Anti-glare matte surface

3H hard coating

Landscape orientation

Suitable for monitor and industrial display applications


Technical Specifications

SpecificationDetails
ModelLM230WF5-TLF1
ManufacturerLG Display
Display Size23.0 Inch
LCD Typea-Si TFT-LCD
Resolution1920 × 1080 pixels
Display FormatFull HD (FHD)
Aspect Ratio16:9
Display ModeTN, Normally White, Transmissive
Display Colors16.7M
Pixel ArrangementRGB Vertical Stripe
Active Area509.184 × 286.416 mm
Pixel Pitch0.2655 × 0.2655 mm
Brightness250 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
Viewing Angle85/85/75/85 (Typ.)
Response Time1.3/3.7 ms (Typ.)
Refresh Rate60Hz
InterfaceLVDS
Interface Type2 Channel 8-bit

Typical Applications

LG Display LM230WF5-TLF1 is suitable for:

Industrial LCD monitors

Desktop monitor replacement

Industrial PCs

Automation control displays

Medical display equipment

Professional monitoring systems

Embedded display terminals

Digital signage systems

Testing and measurement equipment

Custom LCD monitor projects


Why Choose LG Display LM230WF5-TLF1?

Original LG Display LCD quality

23-inch Full HD widescreen format

High-definition 1920×1080 resolution

Stable LVDS digital interface

Fast response time for dynamic images

Reliable WLED backlight technology

Suitable for long-term monitor replacement projects

Excellent compatibility with industrial display systems


Quality Assurance

Original LG Display LM230WF5-TLF1 module

100% display function testing

Pixel defect inspection

LVDS signal verification

Brightness testing

Color performance testing

Connector inspection

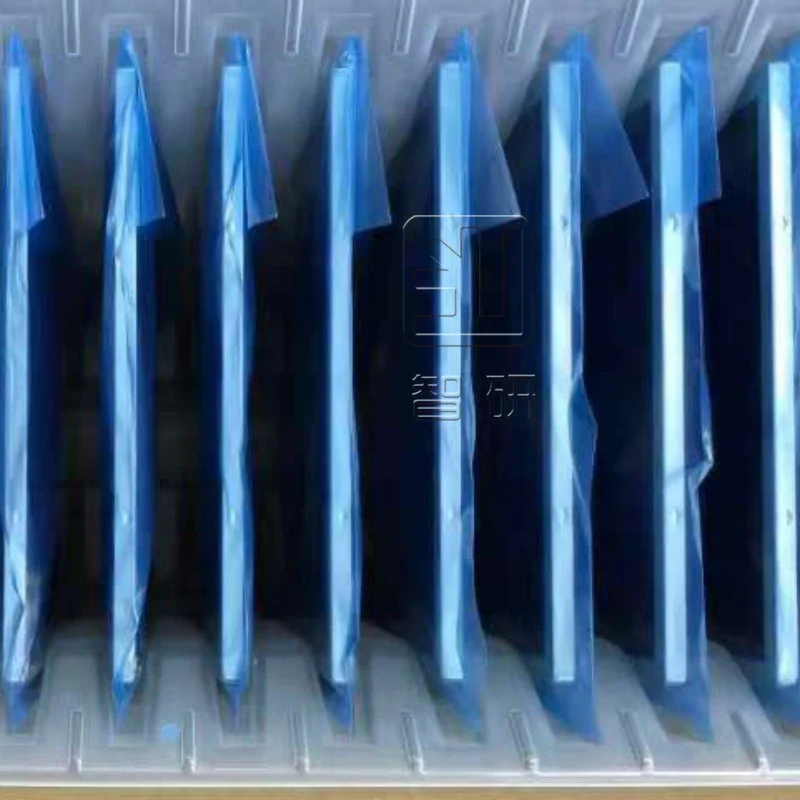

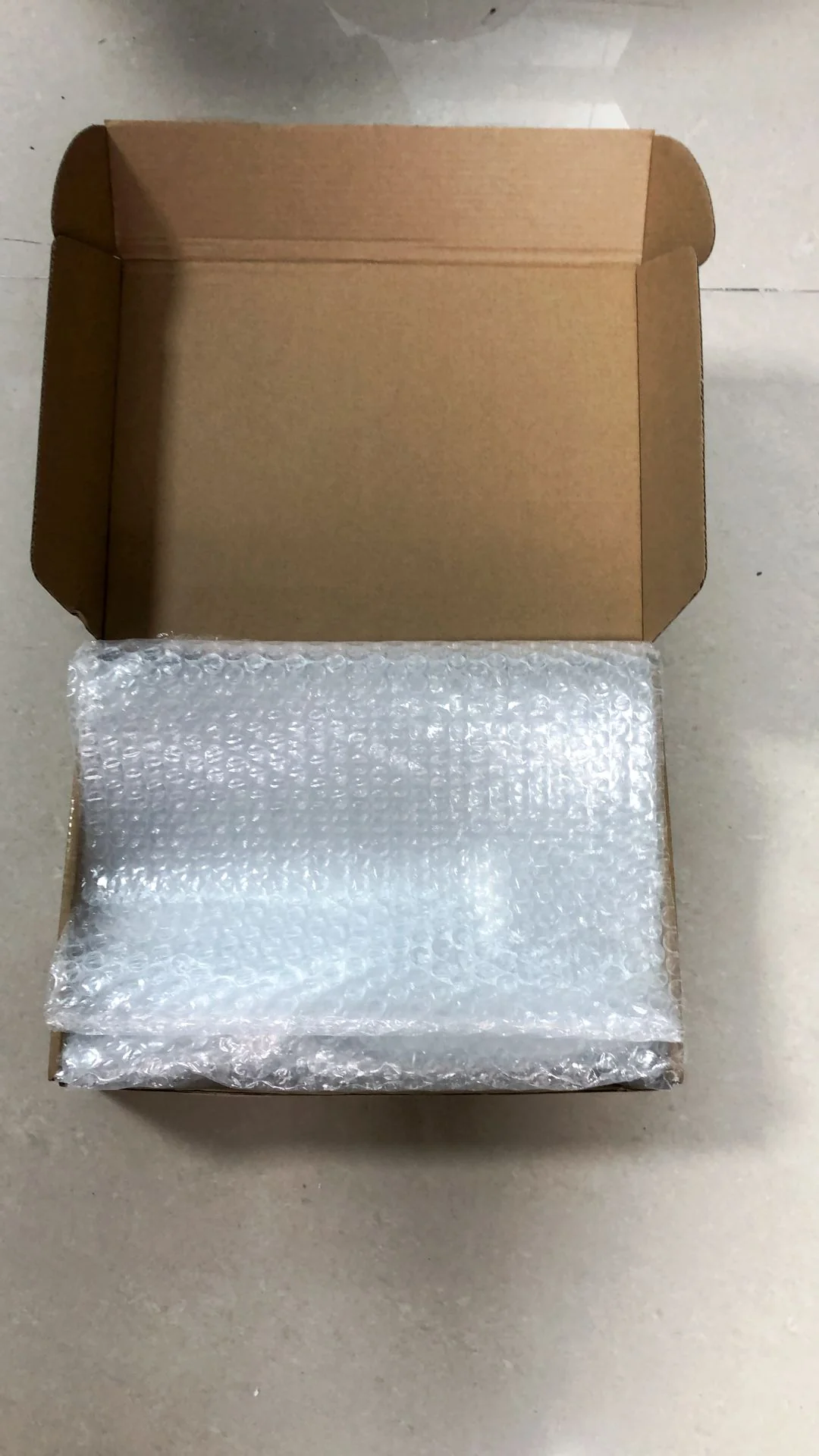

Anti-static protective packaging

Worldwide LCD supply capability


FAQ

What is the resolution of LG Display LM230WF5-TLF1?

The LM230WF5-TLF1 features 1920 × 1080 Full HD resolution.

What interface does LM230WF5-TLF1 use?

It uses a LVDS 2-channel 8-bit interface with a 30-pin connector.

What backlight does LM230WF5-TLF1 use?

The panel uses a white LED backlight system without an integrated LED driver.

Is LM230WF5-TLF1 a touchscreen display?

No. The standard LG Display LM230WF5-TLF1 is an LCD module only. A resistive or capacitive touch panel can be customized separately.
