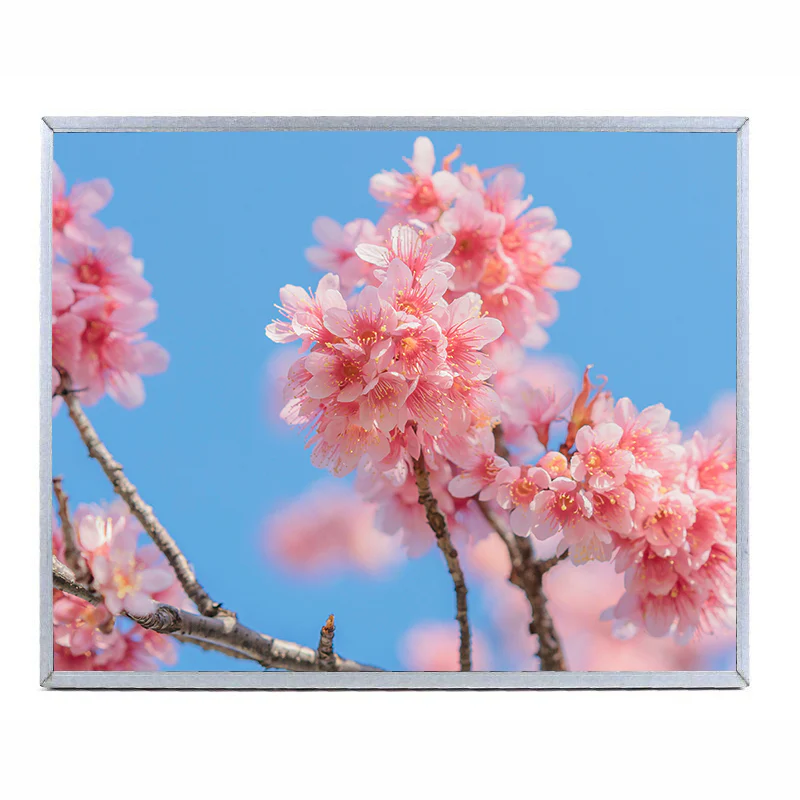

Name: LTM170EX-L31 Samsung 17 inch 1280*1024 LCD display LCD screen
Brand: Samsung
Price: 110.0 USD

LTM170EX-L31 Samsung 17 inch 1280*1024 LCD display LCD screen

Price: $115.00

$110.00/ piece

Delivery:

Payment:

Calculate shipping price

LTM170EX-L31 Samsung 17 inch 1280*1024 LCD display LCD screen

Data sheets：

LTM170EX-L31 Samsung 17 inch 1280*1024 LCD display LCD screen.pdf

Product Information Product Specifications

Model:

LTM170EX-L31

Brand:

Samsung

Application:

Industrial

Size:

17"

Resolution:

1280(RGB)×1024, SXGA 96PPI

Brightness:

300 cd/m2 (Typ.)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Lamp Type:

4 pcs CCFL , 50K hours , Without Driver

Signal Interface:

LVDS (2 ch, 8-bit) , 30 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

75Hz

Active Area:

337.92(W)×270.336(H) mm

Outline:

354.9(W)×290.3(H)×13.3(D) mm

Storage Temp:

-25 ~ 60 °C

Operating Temp:

0 ~ 50 °C

Support Color:

16.7M, 72% NTSC

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

500

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

3.500 KG

Overview

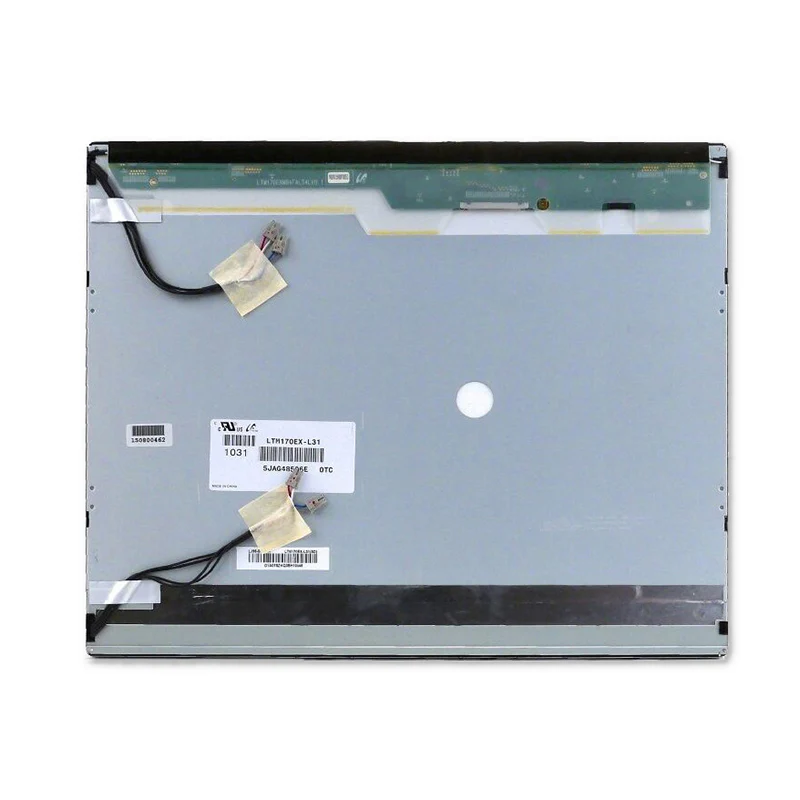

Samsung LTM170EX-L31 is a 17-inch industrial-grade a-Si TFT-LCD module mass-produced by Samsung, featuring CCFL backlight and 30pin LVDS (2-channel 8bit) interface with a matte anti-glare surface. It delivers high contrast, wide viewing angle and long-term stability, designed for high-reliability display applications such as industrial monitors, security surveillance, medical devices and CNC equipment.

All parameters are sourced from Samsung official datasheet and authoritative industry database (Panelook), verifiable. We have 10+ years of industrial display supply experience. All shipments undergo lighting, color, image quality, aging full inspection to ensure stability and reliability.

LTM170EX-L31 Samsung LCD display LCD screen Highlights：

Genuine Samsung Original: Grade A+, no dead pixels, consistent image quality, failure rate ＜0.1%

SXGA High Resolution: 1280×1024, 5:4 aspect ratio, sharp text for surveillance/industrial GUIs

1000:1 High Contrast: Clear image layers, excellent dark detail performance

300cd/m² Brightness + Matte Screen: Visible under strong indoor light, anti-glare, eye-friendly for long hours

Wide Viewing Angle 80/80/80/80: Accurate colors from multiple angles, ideal for multi-user viewing

Long-Life CCFL Backlight: 50,000 hours lifespan, stable & low power for 24/7 operation

Standard 30pin LVDS Interface: 2-channel 8bit, plug-and-play, broad compatibility

Industrial-Grade Stability: Operating temp 0~50℃, suitable for general industrial environments

LTM170EX-L31 Samsung LCD display LCD screen Specifications ：

Basic Info	Model	LTM170EX-L31
	Brand	Samsung
	Panel Type	a-Si TFT-LCD (Transmissive, Normally White, TN)
	Size	17 inch
Optical	Resolution	1280(RGB)×1024 (SXGA)
	Pixel Density	96PPI
	Brightness	300cd/m² (Typical)
	Contrast Ratio	1000:1 (Typical)
	Colors	16.7M (72% NTSC)
	Viewing Angle	80/80/80/80 (CR≥10)
	Backlight	CCFL (4 lamps), 50,000 hours
Electrical	Interface	30pin LVDS (2ch 8-bit)
	Voltage	5.0V (Typical)
	Touch	Without
Mechanical	Active Area	337.92×270.336mm (H×V)
	Outline Size	354.9×290.3×13.3mm
	Weight	Approx. 1.7kg
	Surface Treatment	Matte (Haze 25%), 3H hard coating
Environmental	Operating Temp	0 ~ 50℃
	Storage Temp	-25 ~ 60℃
	Certification	RoHS Compliant

LTM170EX-L31 Samsung LCD display LCD screen Applications：

Industrial Monitors: Industrial control hosts, embedded workstations, CNC operation panels Security Surveillance: Control room displays, NVR monitors, video splitting terminals

Medical Equipment: Patient monitors, ultrasound devices, lab instrument displays

Commercial Terminals: Self-service kiosks, ATMs, industrial POS systems

Office/Desktop: Industrial-grade desktop monitors, special-purpose displays

FAQ:

Q1: Is LTM170EX-L31 original Samsung? Datasheet available?

A1: 100% original Samsung Grade A+, no refurbished/used. Provide official Samsung datasheet, test report, RoHS certificate, verifiable parameters.

Q2: Is it LVDS interface? Can I replace my old screen directly?

A2: Standard 30pin LVDS (2ch 8bit), industry-standard pinout. Direct replacement for same model/interface panels, no driver/hardware changes needed.

Q3: Does it include touch? Can touch be added?

A3: No touch from factory. We offer capacitive/resistive touch overlay kits, customized upon request, sold separately.

Q4: Can CCFL be converted to LED? Can brightness be increased?

A4: Original CCFL backlight; we provide CCFL-to-LED conversion service, brightness up to 400–500cd/m² for bright environments.

Q5: Warranty & stock lead time?

A5: 12-month warranty, free replacement for non-human damage. 600+ in stock, ship within 24hrs; bulk orders 3–5 days.
