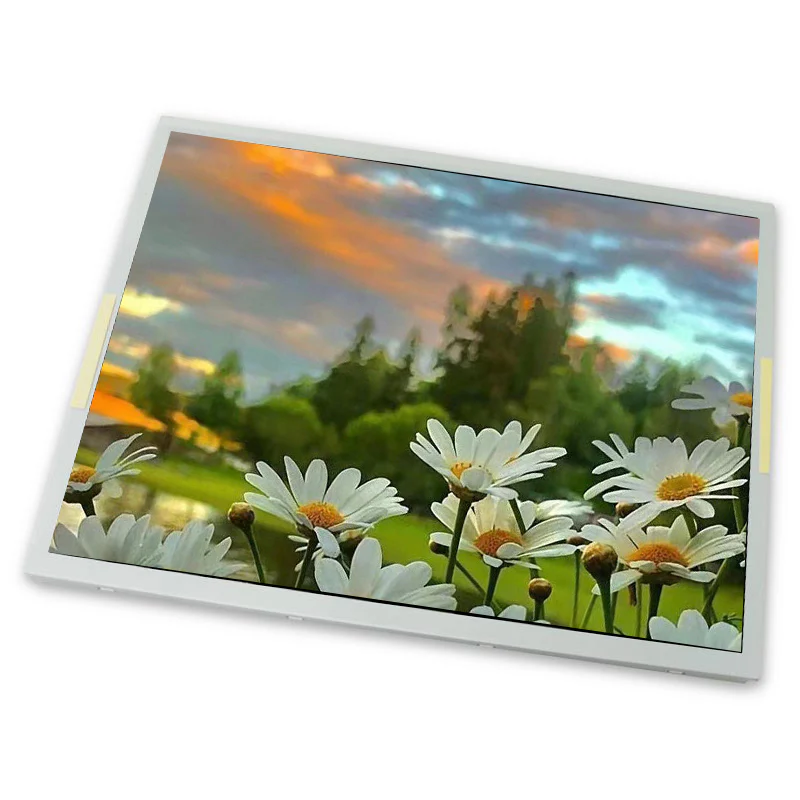

LQ150X1LX91 Sharp 15.0 inch 1024*768 Industrial LCD display screen
LQ150X1LX91 Sharp 15.0 inch 1024*768 Industrial LCD display screen
LQ150X1LX91 is a high-performance LCD display module developed by Sharp for industrial applications. It adopts mature and reliable a-Si TFT technology and Sharp's unique ASV wide viewing angle display mode, which achieves extremely high reliability and stability while ensuring excellent display effects. This module adopts an integrated LCM design, integrating the LCD panel, driver circuit, backlight system and LED driver, making it easy to install and use.
This display module supports 4:3 standard display aspect ratio with RGB vertical stripe pixel arrangement, capable of clearly displaying text, charts and complex graphics. The 1500:1 ultra-high contrast ratio provides rich picture layers and clear dark details, and ASV wide viewing angle technology ensures that color and brightness consistency is maintained from any viewing angle. The long-life WLED backlight system provides stable and uniform illumination with a typical lifespan of up to 70,000 hours, greatly reducing maintenance frequency and cost. The 3.3V low voltage power supply design and LVDS high-speed signal interface make it easy to integrate into various embedded systems. The matte 3H hardness surface coating effectively reduces reflections and enhances the screen's scratch resistance, suitable for harsh industrial environments.
Original Sharp Quality: Manufactured by Sharp Corporation Japan, with strict industrial-grade quality control standards
ASV Wide Viewing Angle Technology: 85° full viewing angle with no color shift, suitable for simultaneous viewing by multiple people
Ultra-high Contrast Ratio: 1500:1 typical contrast ratio, clear picture layers and distinct dark details
Long-life Backlight: WLED backlight typical lifespan 70,000 hours, extremely low maintenance cost
Wide Temperature Operating Range: -10°C to 65°C operating temperature, adapts to various industrial environments
High-speed LVDS Interface: Single-channel 6/8-bit LVDS interface, strong anti-interference ability
LQ150X1LX91 Sharp Industrial LCD display screen Detailed Parameters
| Parameter Category | Detailed Parameters |
|---|---|
| Brand | Sharp Corporation |
| Model Number | LQ150X1LX91 |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Display Module (LCM) |
| Panel Size | 15.0 inches (diagonal) |
| Resolution | 1024(RGB)×768 (XGA) |
| Pixel Density | 85 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Outline Size | 326.5(W)×253.5(H)×10.1(D) mm |
| Surface Treatment | Matte (AG3), 3H Hard Coating, Haze 3% |
| Panel Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Best Viewing Angle | Symmetrical |
| Display Mode | ASV, Normally Black, Transmissive |
| Response Time | 35 (Typ.)(Tr+Td) ms |
| Display Colors | 16.2M (6-bit + Hi-FRC) |
| Color Saturation | 70% NTSC (CIE1931) |
| Backlight Type | WLED, Edge-lit, Integrated LED Driver |
| Backlight Life | 70,000 hours (Typ.) |
| Operating Frequency | 60Hz |
| Signal Interface | LVDS (1 channel, 6/8-bit), 20-pin connector |
| Driving Voltage | 3.3V (Typ.) |
| Panel Weight | 950g (Max.) |
| Operating Temperature | -10 ~ 65 °C |
| Storage Temperature | -25 ~ 65 °C |
| RoHS Compliance | Yes |
| Mass Production Date | July 2015 |
| Place of Origin | Japan |
| Quality Grade | Industrial-grade original genuine product |
Industrial Human-Machine Interfaces (HMIs)
Suitable for HMI displays of various high-end industrial automation equipment, such as PLC controllers, frequency converters, CNC machine tools, injection molding machines, robot control systems, etc. ASV wide viewing angle technology and high contrast ratio enable it to clearly display complex industrial data and graphics.
Medical EquipmentWidely
used in electrocardiographs, blood pressure monitors, ventilators, ultrasound diagnostic instruments, surgical monitors and other medical equipment. Stable and reliable performance and clear display effects are crucial for medical equipment.
Test and Measurement Instruments
Can be used for oscilloscopes, signal generators, spectrum analyzers, multimeters and other high-precision test and measurement instruments. High contrast ratio and accurate color reproduction ensure accurate presentation of measurement data and waveforms.
FAQ:
Q1: What display technology does LQ150X1LX91 use?
A1: LQ150X1LX91 adopts Sharp's unique ASV (Advanced Super View) wide viewing angle display technology. ASV technology is an advanced super viewing angle display mode developed by Sharp, which can provide 85° full viewing angle, maintain color and brightness consistency from any viewing angle, and the display effect is close to IPS technology.
Q2: What is the contrast ratio of LQ150X1LX91?
A2: LQ150X1LX91 has a typical contrast ratio of 1500:1, which is a relatively high level among industrial-grade LCD display modules. High contrast ratio can provide richer picture layers and clearer dark details, especially suitable for displaying complex industrial data and graphics.
Q3: How do I confirm if my device is compatible with this display module?
A3: The most accurate method is to check the model label on the back of your device's original display module. If the original module model is LQ150X1LX91, it is fully compatible. For devices of other models, you need to confirm whether the interface type (LVDS 20-pin), power supply voltage (3.3V) and mechanical dimensions match.
