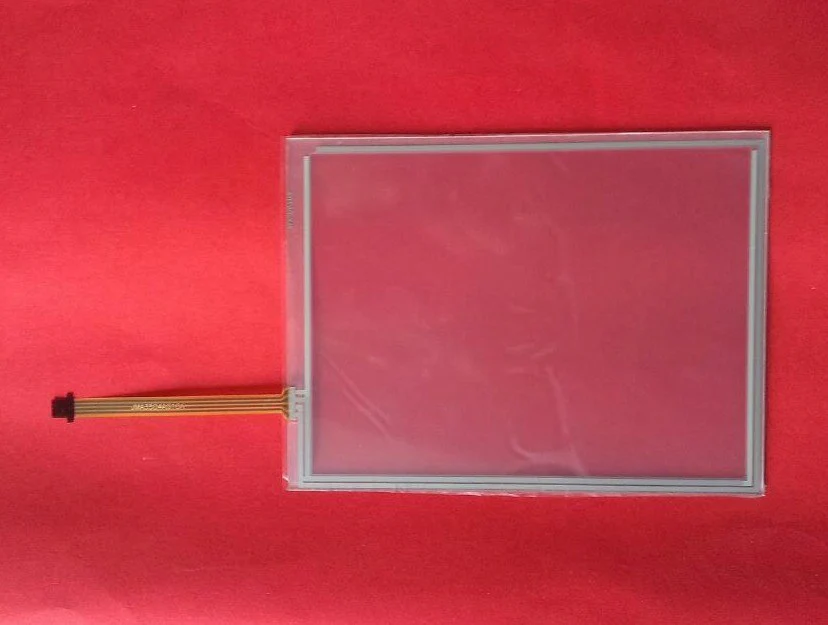

KCG057QV1DC-G500 Kyocera Original NEW Touch screen
KCG057QV1DC-G500 Kyocera Original NEW Touch screen
Price: $40.00
$35.00/ piece
Add to cart
KCG057QV1DC-G500 NEW Touch screen
KCG057QV1DC-G500 NEW Touch screen

KCG057QV1DC-G500 Kyocera Original NEW Touch screen

Price: $40.00
$35.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

KCG057QV1DC-G500 Kyocera Original NEW Touch screen

Product Information Product Specifications
Model:
KCG057QV1DC-G500
Brand:
KYOCERA
Application:
Industrial
Size:
5.7"
Resolution:
320(RGB)×240, QVGA 70PPI
Brightness:
280 cd/m² (Typ.)
Contrast Ratio:
55:1 (Typ.) (TM)
Viewing Angle:
50/50/20/35 (Typ.)(CR≥2)
Lamp Type:
CCFL [1 pcs] , 75K hours , W/O Driver
Signal Interface:
Parallel Data (1ch, 8-bit) , 20 pins Connector
Panel Type:
CSTN-LCD, LCM
Frame Rate:
75Hz
Active Area:
115.2×86.4 mm (H×V)
Outline:
144×104.8×15.3 mm (H×V×D)
Storage Temp:
-20 ~ 60 °C
Operating Temp:
0 ~ 60 °C
Support Color:
Color, 38% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
463
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

KCG057QV1DC-G500 Kyocera Original NEW Touch screen

The Kyocera KCG057QV1DC-G500 is a 5.7-inch a-Si TFT-LCD display module with a 320×240 (QVGA) resolution and a 4:3 aspect ratio. It features a parallel RGB (18-bit / 24-bit) interface. The display delivers a typical brightness of 250 cd/m² (or lower if a resistive touch panel is laminated) and a contrast ratio of 55:1. Typical response time is 180/170 ms (Typ., Tr/Td). The module supports 262K colors (6-bit). Optical viewing angles are typically 50/50/20/35 (Typ.)(CR≥2) (Left/Right/Up/Down). Operating temperature range is 0℃ to +60℃, with storage from -20℃ to +60℃. The panel uses LED backlighting rated for 750,00 hours. This version comes with an integrated resistive touch panel (typically 4-wire analog), which adds a top-layer glass with a touch-sensitive surface and an FPC tail for touch controller connection.

Key Highlights: Original Kyocera NEW quality ensures genuine factory-sealed reliability and full compatibility with existing industrial designs. The integrated resistive touch screen offers a cost-effective, glove-friendly, and stylus-compatible input solution ideal for factory automation, medical equipment, and public kiosks. Industrial-grade durability with a wide operating temperature range (0℃ to +60℃) guarantees stable performance in harsh environments. The QVGA resolution combined with 55:1 contrast ratio delivers clear, readable text and graphics. The 750,00-hour LED backlight minimizes maintenance, while the all-in-one display+touch assembly simplifies mechanical integration and reduces supply chain complexity.

KCG057QV1DC-G500 Kyocera Touch screen Specification:

ItemSpecification
Part NumberKCG057QV1DC-G500
BrandKyocera
ConditionOriginal NEW
Display TypeCSTN-LCD Module with 4-wire Resistive Touch Screen
Diagonal Size5.7 inches
Resolution320(RGB) × 240 (QVGA)
Brightness280 cd/m² (Typ.)
Contrast Ratio55:1 (Typ.) (TM)
Viewing Angle50/50/20/35 (Typ.)(CR≥2)
Display ColorsColor, 38% NTSC
Response Time180/170 ms (Typ., Tr/Td)
BacklightCCFL  [1 pcs] , 75K hours , W/O Driver
InterfaceParallel Data (1ch, 8-bit) , 20 pins Connector
Refresh Rate75 Hz
Input Voltage3.3V / 5.0V (Typ.)
Operating Temperature0C ~ +60°C
Touch Type4-wire Resistive Touch (Single-point)
Surface TreatmentAntiglare, Hard coating (2H)
Outline Size144(W) × 104.8(H) × 15.3(D) mm

KCG057QV1DC-G500 Kyocera Touch screen  Applications:

Industrial control panels with touch operation

Factory automation HMI (Human-Machine Interface)

Medical equipment touch displays

Automotive dashboard touch systems

Portable industrial touch terminals

FAQ:

Is this KCG057QV1DC-G500 a brand new original Kyocera product? Has it been used?

Yes, this is a brand new, original Kyocera product (New Old Stock). We do not sell refurbished or used screens, ensuring you receive a new industrial-grade display in optimal condition.

Is this model a touch screen? Is the touch functionality resistive or capacitive?

This model is primarily an LCD display module. If you are purchasing the version with touch, it typically comes equipped with a 4-Wire Resistive Touch Panel. It requires a flex cable connection to a controller and supports operation with industrial gloves or a stylus.

What is the resolution of this screen? What type of driver interface does it use?

The resolution is 320 x 240 (QVGA). It utilizes a standard RGB interface for connection, making it compatible with most standard industrial control boards and embedded systems.


Click here to learn more about: kyocera displays

Return to Home:https://www.zylcdshop.com/

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
KCG057QV1DC-G500 Kyocera Original NEW Touch screen

KCG057QV1DC-G500 Kyocera Original NEW Touch screen

KCG057QV1DC-G500

5.7"
320(RGB)×240, QVGA 70PPI
280 cd/m² (Typ.)
55:1 (Typ.) (TM)
50/50/20/35 (Typ.)(CR≥2)
CCFL [1 pcs] , 75K hours , W/O Driver
Parallel Data (1ch, 8-bit) , 20 pins Connector
CSTN-LCD, LCM
KCG057QV1DB-G810  Kyocera  5.7 inch  panel lcd

KCG057QV1DB-G810 Kyocera 5.7 inch panel lcd

KCG057QV1DB-G810

320*240
60:1
50/50/20/35
CCFL
20 pins
CSTN-LCD, LCM
KCG057QV1DC-G500 is a 5.7" CSTN-LCD, LCM Display screen Product from KYOCERA.According to KYOCERA's product specification sheet,KCG057QV1DC-G500 display has a resolution of 320(RGB)×240, QVGA 70PPI, Contrast Ratio is 55:1 (Typ.) (TM),Viewing Angle is 50/50/20/35 (Typ.)(CR≥2),Lamp Type is CCFL [1 pcs] , 75K hours , W/O Driver,Signal Interface is Parallel Data (1ch, 8-bit) , 20 pins Connector,Brightness is 280 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of KCG057QV1DC-G500 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
