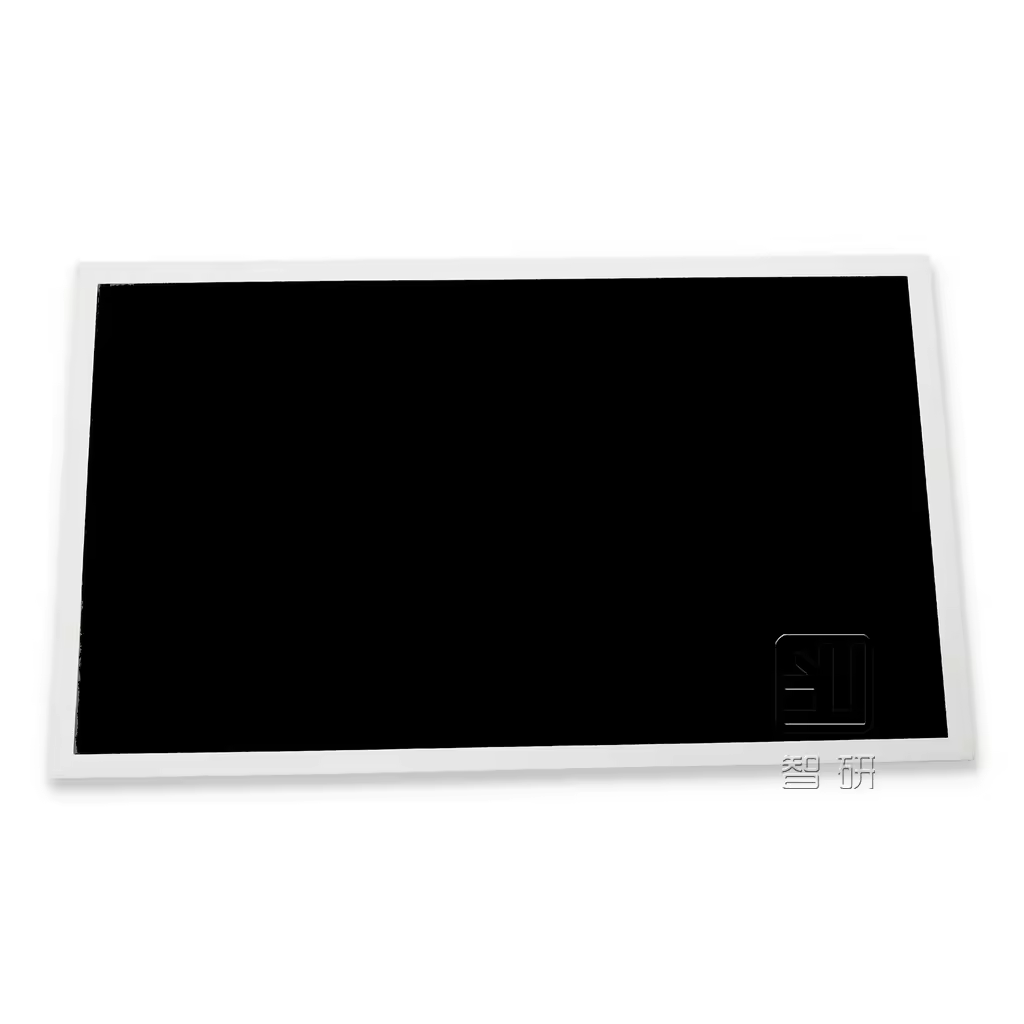

g260j1-l05 Innolux 25.5 inch 1920×1200 lcd display panel
g260j1-l05 Innolux 25.5 inch 1920×1200 lcd display panel
G260J1-L05 is a 25.5-inch industrial medical-grade a-Si TFT-LCD display panel manufactured by Innolux As a professional display product of Innolux's G series, this model adopts exclusive Super MVA wide viewing angle technology, specifically designed for medical and industrial applications that require excellent color accuracy, contrast ratio and long-term operational reliability, and is widely used in medical diagnostic equipment and industrial control systems of major global brands.
This product provides 1920×1200 WUXGA standard resolution and 88PPI pixel density, equipped with a 16-piece direct-lit CCFL cold cathode backlight system (with built-in inverter) and 30-pin 2-channel 8-bit LVDS signal interface, supporting 88° full viewing angle display and 1500:1 high contrast ratio, which can clearly present subtle image details and meet the strict requirements of medical diagnosis and industrial monitoring.
g260j1-l05 Innolux lcd display panel Highlights:
Innolux Industrial Medical-grade Quality Assurance: Adopts Innolux's strict industrial medical-grade manufacturing standards and quality control system, certified by ISO13485 medical device quality management system, with extremely high product consistency and reliability
Super MVA Wide Viewing Angle Technology: Exclusive Super MVA technology achieves 88° full viewing angle display, with consistent color and contrast at all angles without color shift, suitable for medical and industrial scenarios where multiple people watch simultaneously
1500:1 Ultra-high Contrast Ratio: More than 3 times higher contrast ratio than traditional TN panels, which can clearly present the light and dark details of images, especially suitable for medical diagnosis and industrial monitoring applications
Long-life CCFL Backlight System: Adopts 16 high-quality direct-lit CCFL cold cathode fluorescent lamps with a typical lifespan of 45,000 hours, good backlight uniformity and accurate color reproduction, reducing maintenance costs and equipment downtime
Built-in Backlight Inverter: Integrated backlight drive circuit, no need for external inverter, simplifying system design and improving overall reliability
Standard LVDS High-speed Interface: 30-pin 2-channel 8-bit LVDS interface has excellent anti-electromagnetic interference capability, supports long-distance signal transmission, and is suitable for complex wiring requirements of industrial and medical equipment
Anti-glare Hard Coating Surface: Anti-glare surface treatment with 42% haze effectively reduces ambient light reflection, and 3H hard coating protects the screen from scratches and improves service life
Mature and Stable Driving Solution: There are a large number of mature driving circuits and software support worldwide, with short development cycle and good compatibility
g260j1-l05 Innolux lcd display panel Specification:
| Parameter | Specification |
|---|---|
| Model Number | G260J1-L05 |
| Manufacturer | Innolux (formerly Chi Mei Optoelectronics) |
| Screen Size | 25.5 inch (diagonal) |
| Panel Type | a-Si TFT-LCD LCM (Liquid Crystal Display Module) |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Display Colors | 16.7M (8-bit) |
| Color Gamut | 72% NTSC |
| Resolution | 1920(RGB)×1200 pixels (WUXGA) |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.287×0.287mm |
| Pixel Density | 88PPI |
| Active Area | 551.04(W)×344.4(H)mm |
| Outline Dimension | 590.0(W)×380.0(H)×30.0(D)mm |
| Bezel Opening | 557.0(W)×350.4(H)mm |
| Aspect Ratio | 16:10 |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ., Transmissive) |
| Best Viewing Direction | Symmetrical |
| Viewing Angle | 88°/88°/88°/88° (CR≥10, L/R/U/D) |
| Response Time | 15/5ms (Tr/Td, Typ.) |
| Refresh Rate | 60Hz |
| Backlight Type | CCFL Cold Cathode Fluorescent Lamp, 16 pieces, Direct-lit |
| Backlight Life | 45,000 hours (Typ.) |
| Backlight Driver | Built-in Inverter |
| Signal Interface | LVDS (2 channels, 8-bit), 30-pin JAE FI-X30SSL-HF connector |
| Input Voltage | 12.0V (Typ.) |
| Surface Treatment | Anti-glare (Matte), Hard Coating (3H) |
| Touchscreen | None (Resistive/PCAP customizable) |
| Net Weight | Approx. 3.5kg |
| Vibration Level | 1.0G (9.8m/s²) |
| Condition | Some versions discontinued (compatible alternatives available) |
| Application Grade | Industrial/Medical Grade |
| Operating Temperature | 0℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
g260j1-l05 Innolux lcd display panel Applications:
Medical Devices
Ultrasound diagnostic equipment
X-ray diagnostic equipment
CT/MRI scanner displays
Medical monitors
Surgical equipment displays
Laboratory analytical instruments
Industrial Human-Machine Interfaces (HMI)
Industrial automation controllers
Power monitoring systems
Petrochemical control systems
Industrial robot teach pendants
Test and measurement instruments
FAQ:
Q1: Is the G260J1-L05 an original Innolux product?
A1: Yes, all G260J1-L05 we sell are 100% original brand new Grade A products from Innolux factory, with original factory quality guarantee and relevant certification documents.
Q2: Does the product require a separate backlight driver board?
A2: No. G260J1-L05 has a built-in backlight inverter, which only needs 12V DC power supply to work normally, no external driver board is required.
Q3: If G260J1-L05 is discontinued, what replacement models are available?
A3: We can provide Innolux M260J1-L05, M260J3-L03 and other upgraded replacement models, as well as 100% compatible alternative solutions from other brands to ensure seamless replacement.
Q4: Can you provide a version with touchscreen?
A4: Yes, customized versions integrated with 4-wire/5-wire resistive touchscreen or Projective Capacitive (PCAP) touchscreen are available with a lead time of approximately 2-3 weeks.
Q5: How to confirm product compatibility with my equipment?
A5: Please provide the original model or technical requirements of your equipment, and our technical team will confirm compatibility and provide professional advice for you within 24 hours
