G121SN01 V3 12,1 Zoll 800 * 600 LCD-Anzeigemodul Für AUO

G121SN01 V3 12,1 Zoll 800 * 600 LCD-Anzeigemodul Für AUO

Der Preis: $81.00

$76.00/ Mitglied

Lieferung:

Zahlung:

Berechnung der fracht

Erforderlich:*

Produktmodell*	Zielpreis	Qty *

Nachricht

Ihre Kontaktdaten:

Weitere Informationen:

Name: *

Herr.

Frau.

1. Angebot mit Versand Fracht?

Email : *

NEIN

Telefon:

2. Welchen Carrier perfert ihr??

Unternehmen:

	Fedex		UPS		DHL
	TNT		andere

Land:*

Spezifikationen Bestellanleitung Übersicht Produktvergleich Fragen und Antworten Bewertungen

G121SN01 V3 12,1 Zoll 800 * 600 LCD-Anzeigemodul Für AUO

Datasheets：

G121SN01 V3 12,1 Zoll 800 * 600 LCD-Anzeigemodul Für AUO.pdf

Produktinformationen Produktspezifikationen

Modell:

G121SN01 V3

Marke:

AUO

Anwendung:

Größe:

Entschließung:

800(RGB)×600, SVGA 82PPI

Helligkeit:

400 cd/m2 (Typ.)

Kontrastverhältnis:

600 : 1 (Typ.) (TM)

Betrachtungswinkel:

80/80/50/60 (Typ.)(CR≥10)

Lampentyp:

2 pcs CCFL , 50K hours , No Driver

Signalschnittstelle:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Panel-Typ:

a-Si TFT-LCD, LCM

Bestellanleitung

Qualität:

test ok before ship it

Größe:

RMA 6 month

Entschließung:

Paid Sample

Lagerbestand:

2000

Betrachtungswinkel:

China

Lampentyp:

WorldWide

Signalschnittstelle:

1-3 Days

Gewicht:

1.500 KG

Übersicht

G121SN01 V3 : Produktinformationen Produktspezifikationen

Modell	G121SN01 V3
Größe	12.1"
Auflösung	800(RGB)×600, SVGA 82PPI
Helligkeit	400 cd/m2 (Typ.)
Kontrastverhältnis	600 : 1 (Typ.) (TM)
Blickwinkel	80/80/50/60 (Typ.)(CR≥10)
Lampentyp	CCFL
Signalschnittstelle	LVDS (1 Kanal, 6/8 Bit), 20-poliger Anschluss
Platten-Art	a-Si TFT-LCD, LCM

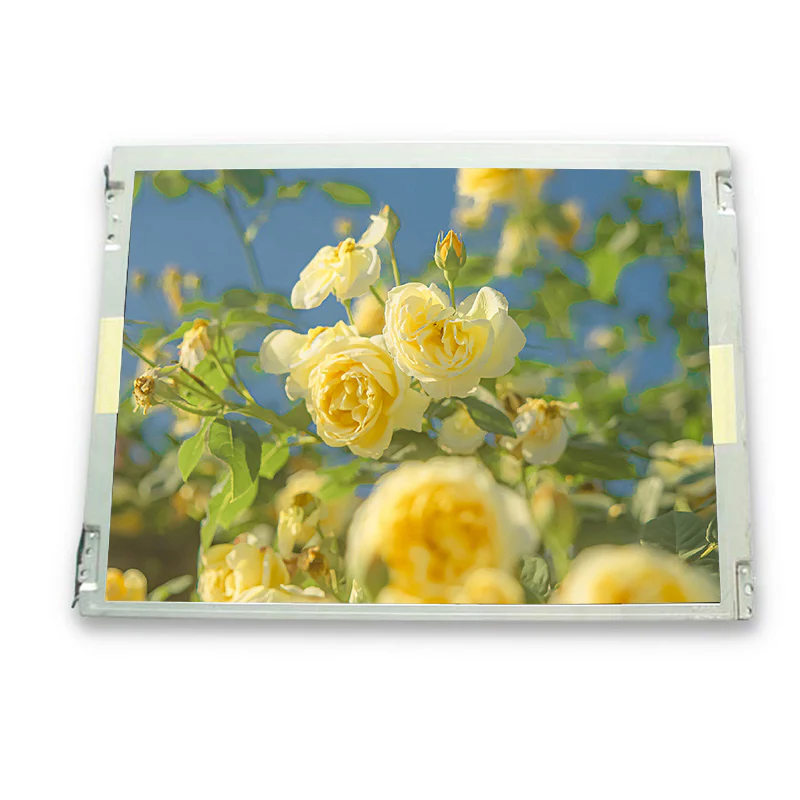

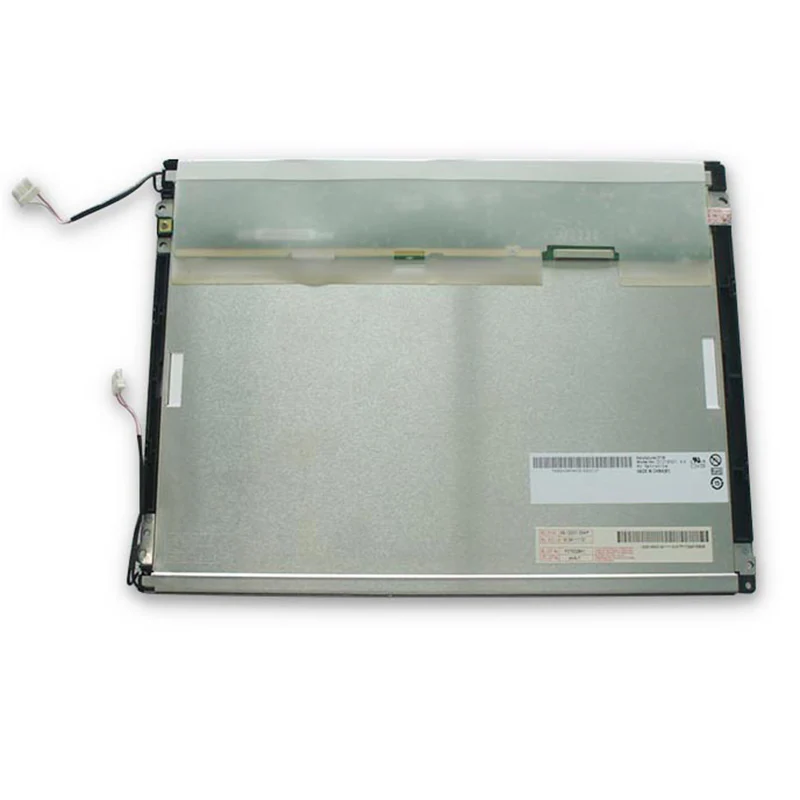

G121SN01 V3 : Produkt zeigen bilder

Produktvergleich

Modell:

Größe:

Entschließung:

Helligkeit:

Kontrastverhältnis:

Betrachtungswinkel:

Lampentyp:

Signalschnittstelle:

Panel-Typ:

G121SN01 V3 12,1 Zoll 800 * 600 LCD-Anzeigemodul Für AUO

G121SN01 V3

800(RGB)×600, SVGA 82PPI

400 cd/m2 (Typ.)

600 : 1 (Typ.) (TM)

80/80/50/60 (Typ.)(CR≥10)

2 pcs CCFL , 50K hours , No Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G121SN01 V1

800(RGB)×600, SVGA 82PPI

200 cd/m² (Typ.)

500:1 (Typ.) (TM)

70/70/60/50 (Typ.)(CR≥10)

CCFL [2 pcs] , 50K hours , W/O Driver

LVDS (1 ch, 6-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G121SN01 V4

800(RGB)×600, SVGA 82PPI

450 cd/m² (Typ.)

700 : 1 (Typ.) (TM)

80/80/65/75 (Typ.)(CR≥10)

WLED [9S2P] , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G121SN01 V0

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

500:1 (Typ.) (TM)

70/70/60/50 (Typ.)(CR≥10)

CCFL [2 pcs] , 50K hours , W/O Driver

LVDS (1 ch, 6-bit) 20 pins Connector

a-Si TFT-LCD, LCM

G121SN01 V3 is a 12.1" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G121SN01 V3 display has a resolution of 800(RGB)×600, SVGA 82PPI, Contrast Ratio is 600 : 1 (Typ.) (TM),Viewing Angle is 80/80/50/60 (Typ.)(CR≥10),Lamp Type is 2 pcs CCFL , 50K hours , No Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 400 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G121SN01 V3 after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Fragen und Antworten

Eine Frage stellen >

Alle (5) (5) Package (0) Express Delivery (0) (0) (0)

What does the "V3" in this model number represent?

The "V3" typically indicates Version 3 of this model. This may signify optimizations or improvements in areas such as brightness, contrast, interface, or reliability compared to older versions (e.g., V1, V2). When purchasing, it's advisable to confirm that you are getting the correct version.

Does this module come with touch functionality?

No, it does not. The G121SN01 V3 is a standard LCD display module and does not include integrated touch functionality. If touch is required, an additional resistive or capacitive touch panel must be sourced and assembled separately.

What is its interface type?

The G121SN01 V3 typically uses an LVDS interface. Please be sure to consult the latest product datasheet to confirm details such as pin definitions, voltage, and signal timing.

Is the G121SN01 V3 an industrial-grade panel?

Yes, the G121SN01 V3 is designed for industrial applications. It features a wide operating temperature range, high reliability, and long lifespan, making it suitable for stable operation in harsh industrial environments.

What is the resolution of this display? How does it differ from the G121X1-L04?

The resolution of this display is 800×600 (SVGA format). The main difference from the G121X1-L04 (which has a 1024×768 resolution) is its lower resolution and thus lower pixel density, which may affect the sharpness of very detailed graphics.
