Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel
Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel
Der Preis: €113.17
€108.65/ Mitglied
In den Warenkorb

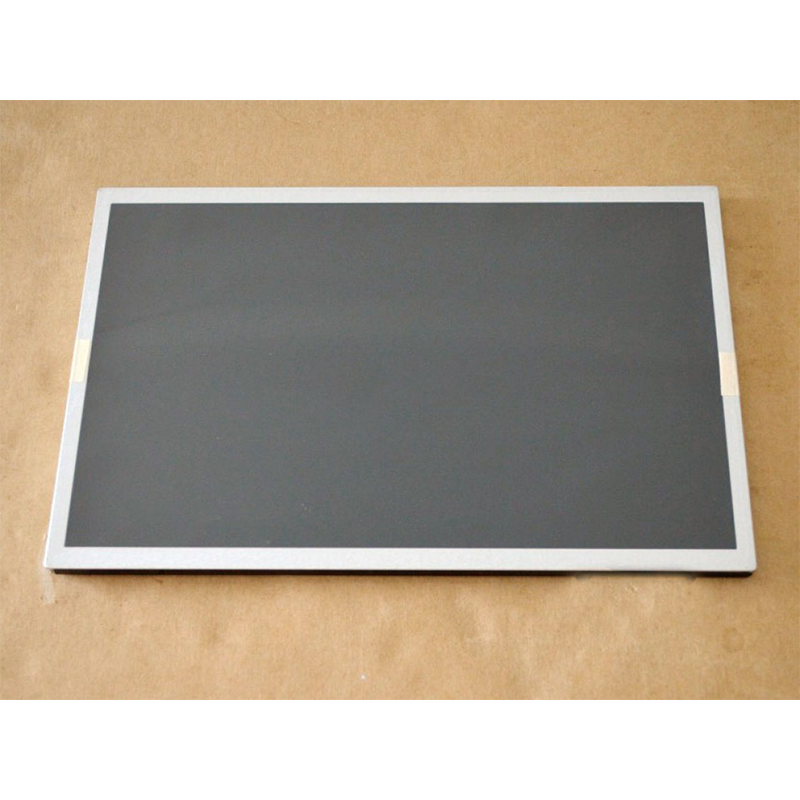

Innolux G121I1-L01 12.1 inch TFT LCD display module front view
Back chassis and label of Innolux G121I1-L01 LCD panel Rev C2
Innolux G121I1-L01 12.1 inch TFT LCD display module front view
Back chassis and label of Innolux G121I1-L01 LCD panel Rev C2

Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel

Der Preis: €113.17
€108.65/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel

Produktinformationen Produktspezifikationen
Modell:
G121I1-L01 Rev.C2
Marke:
INNOLUX
Anwendung:
Industrie
Größe:
Entschließung:
1280(RGB)×800, WXGA 124PPI
Helligkeit:
400 cd/m² (Typ.)
Kontrastverhältnis:
1000:1 (Typ.) (TM)
Betrachtungswinkel:
88/88/88/88 (Typ.)(CR≥10)
Lampentyp:
WLED [9S3P] , 50K hours , With LED Driver
Signalschnittstelle:
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
50
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
1.500 KG
Übersicht

DieInnolux G121I1-L01ist ein hochwertiges 12,1-Zoll-TFT-LCD-Anzeigemodul, das für hohe Zuverlässigkeit in anspruchsvollen Umgebungen entwickelt wurde. Mit einer WXGA-Auflösung von 1280 (RGB) ×800 Pixeln,12,1-Zoll-LCD-PanelLiefert scharfen text und leuchtende Farben für eine präzise visuelle Ausgabe. Entworfen mit einer Standard-20-Pin-LVDS-Schnittstelle und WLED-Hintergrundbeleuchtung, dieG121I1-L01 Innolux displaySorgt für einen geringen Stromverbrauch und eine nahtlose integration. Egal, ob Sie einen direkten Drop-In-Ersatz (einschließlich Rev. C2-Versionen) für ältere Geräte benötigen oder Komponenten für neue Maschinen beziehen, ZYLCDShop bietet originelle Innolux LCD-Module zu wettbewerbsfähigen Preisen und schnellen globalen Versand.

Produktmerkmale

  • High Definition Auflösung:WXGA 1280 (RGB) ×800 Auflösung bietet klare und detaillierte Bildqualität für die industrielle Überwachung.

  • Energieeffiziente Hintergrundbeleuchtung:Das eingebaute WLED-Hintergrundbeleuchtungssystem bietet gleichmäßige Helligkeit, längere Lebensdauer und geringeren Stromverbrauch.

  • Standardschnittstelle:Verfügt über eine 20-polige LVDS-Schnittstelle (Low-Voltage Differential Signaling) für stabile Hochgeschwindigkeits-Datenübertragung.

  • Großer Blickwinkel:Fortschrittliche TN/IPS-Panel-Technologie sorgt für konsistente Farben und Kontrast aus mehreren Betrachtungsrichtungen.

  • Industrielle Qualität Haltbarkeit:Entwickelt, um dem kontinuierlichen 24/7 Betrieb in rauen industriellen Steuerungssystemen und medizinischen Geräten standzuhalten.

  • Direkter Ersatz:100% kompatibel mit bestehenden Systemen mit dem Modell G121I1-L01 (unterstützt Rev. C1/C2), wodurch eine problemlose installation gewährleistet wird.

Technische Spezifikationen

HerstellerInnolux
ModellnummerG121I1-L01 (Rev. C2)
Bildschirmgröße12,1 Zoll
Auflösung1280 x 800 (BxGA)
Aktivbereich261,12 (B) ×163,2 (H) mm
SchnittstelleLVDS (20 pins)
HintergrundbeleuchtungstypWLED (weiße LED)
Helligkeit400 cd/m² (Typ.)
Kontrastverhältnis1000:1 (Typ.)
Betriebstemperatur-30~80 °C

Anwendungen

DieInnolux G121I1-L01 12,1-Zoll LCD-Anzeigemodulist sehr vielseitig und weit verbreitet in verschiedenen Berufsbranchen:

  • Industrielle Automation:HMI-Panels (Human-Machine Interface), SPS-Touchscreens, CNC-Maschinenmonitore und Fabriksteuerungsanschlüsse.

  • Medizinische Ausrüstung:Patientenmonitore, Ultraschallgeräte, tragbare Diagnosegeräte und zahnbildgebende Bildschirme.

  • Transport & Schifffahrt:Flottenmanagement-Displays, Seenavigationsbildschirme, Eisenbahnsteuertafeln und Luftfahrtmonitore.

  • Gewerbliche Kioske:Selbstbedienungsterminals, POS-Systeme, Geldautomaten und digitale Beschilderung.

Warum wählen Sie uns

beiZYLCDShop, Wir spezialisieren uns auf die Bereitstellung hochwertiger LCD-Anzeigelösungen weltweit:

  • 100% echte Produkte:Wir liefern nur original Innolux LCD-Panels, streng getestet vor dem Versand.

  • Wettbewerbsfähige Preise:Direktbeschaffung ermöglicht es uns, die besten Marktpreise für IhreG121I1-L01 Ersatz.

  • Schneller globaler Versand:Sichere antistatische Verpackung und beschleunigte Logistik sorgen dafür, dass Ihr Modul sicher ankommt.

  • Expertenunterstützung:Unser technisches team ist bereit, Ihnen bei Kompatibilitätsfragen, Pinout-Diagrammen und Installationsanleitungen zu helfen.

  • Garantie garantiert:Alle unsere Produkte werden mit einer Standardgarantie für Ihre Seelenfrieden geliefert.

FAQ (Häufig gestellte Fragen)

Ist der Innolux G121I1-L01 ein direkter Ersatz für meinen kaputten 12,1-Zoll-Bildschirm?

Ja, wenn Ihr aktuelles display die genaue Modellnummer G121I1-L01 verwendet, ist dieses Modul ein direkter Drop-In-Ersatz. Bitte überprüfen Sie die Umrissabmessungen und die 20-Pin-LVDS-Schnittstelle vor dem Kauf, um eine perfekte Kompatibilität zu gewährleisten.

Was bedeutet "Rev. C2" und ist es mit Rev. C1 kompatibel?

"Rev. C2" bezieht sich auf Revision C2 des Gremiums. In den meisten Fällen teilen Revisionen wie C1 und C2 die gleichen mechanischen Abmessungen, aktiven Bereich und LVDS-Pinout, sodass sie austauschbar sind. Wir empfehlen jedoch, das Datenblatt zu überprüfen oder unser Support-Team zu kontaktieren, um die Kompatibilität für Ihre spezifische Anwendung zu bestätigen.

Wo kann ich das Innolux G121I1-L01 Datenblatt PDF herunterladen?

Absolut. Wenn Sie mehrere Einheiten der

Innolux 12,1-Zoll-TFT LCD-Panel

Für Fertigungs-oder groß angelegte Wartungsprojekte kontaktieren Sie uns bitte für ein individuelles Großhandelsangebot.Sie können das offizielle Spezifikationsdatenblatt anfordern, indem Sie unser Support-Team über das untenstehende Anfrageformular kontaktieren. Wir stellen für unsere Kunden alle notwendigen Pinout-Diagramme und technischen Unterlagen zur Verfügung.Bieten Sie Massenrabatte für industrielle LCD-Panels an?

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel

Innolux G121I1-L01 12,1 Zoll 1280x800 WXGA TFT LCD Industrie Display Panel

G121I1-L01 Rev.C2

1280(RGB)×800, WXGA 124PPI
400 cd/m² (Typ.)
1000:1 (Typ.) (TM)
88/88/88/88 (Typ.)(CR≥10)
WLED [9S3P] , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM

P215HAN02.0

1920(RGB)×1080, FHD 102PPI
1500 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED [4 strings × 2CN] , 50K hours , W/O Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
ea-Si TFT-LCD, LCM

P2130UXF1MA10

1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM

P2130UXF1MA00

1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
G121I1-L01 Rev.C2 is a 12.1" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,G121I1-L01 Rev.C2 display has a resolution of 1280(RGB)×800, WXGA 124PPI, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 88/88/88/88 (Typ.)(CR≥10),Lamp Type is WLED [9S3P] , 50K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 30 pins Connector,Brightness is 400 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G121I1-L01 Rev.C2 after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
