Parameter description：

1. Brand：AUO

2. Size:12.1Inches

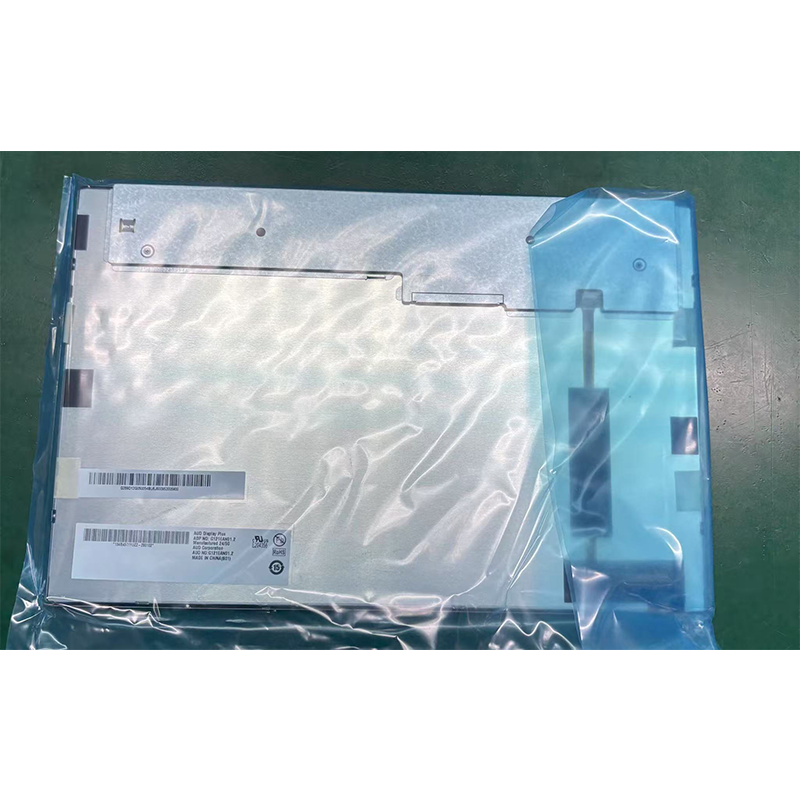

3. Model:G121EAN01.2

4. Panel type:a-Si TFT-LCD, LCM

5. Resolution：1280(RGB)×800, WXGA  124PPI

6. AA zone size:261.12(W)×163.2(H) mm

7. Overall dimensions:278 × 184 × 9.94 (H×V×D)

8. Brightness:1000:1 (Typ.) (TM)

9. Viewing angle:89/89/89/89 (Typ.)(CR≥10)

10. Contrast ratio:1000 cd/m² (Typ.)

11. Display color:262K/16.2M   99% sRGB

12. Optical mode:AHVA, Normally Black, Transmissive

13. Response speed:25 (Typ.)(Tr+Td) ms

14. Signal interface:LVDS (1 ch, 6/8-bit) , 30 pins Connector

15. Light source：WLED , 50K hours , With LED Driver

16. Touch: Without

17. Environment:Storage Temp.: -30 ~ 85 °C    Operating Temp.: -30 ~ 85 °C
