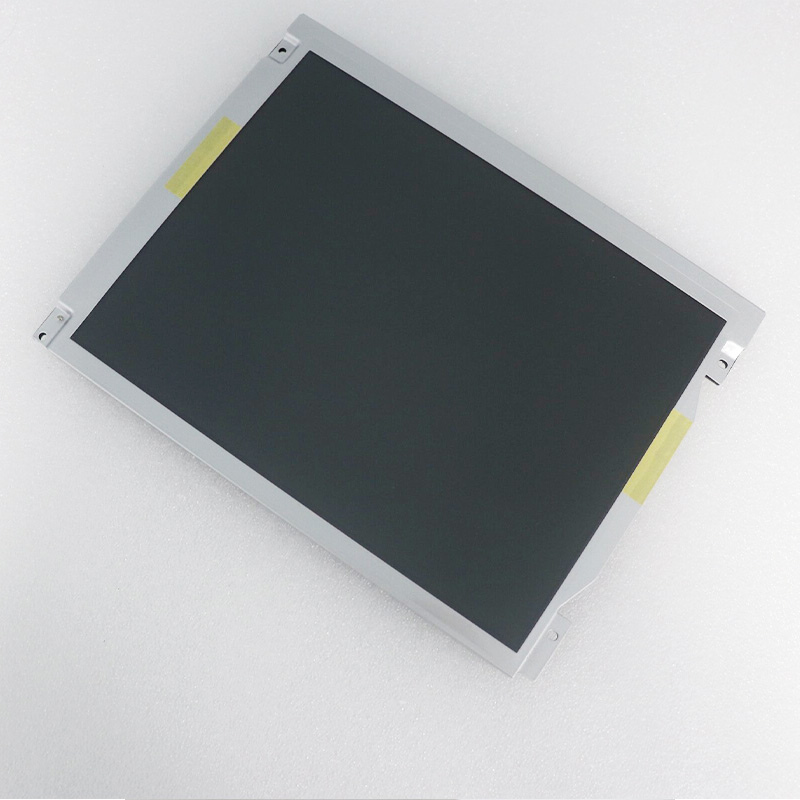

G104STN01.0 10.4" tft lcd module for AUO

G104STN01.0 10.4" tft lcd module for AUO

Price: $115.00

$110.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

G104STN01.0 10.4" tft lcd module for AUO

Data sheets：

G104STN01.0 10.4" tft lcd module for AUO.pdf

Product Information Product Specifications

Model:

G104STN01.0

Brand:

AUO

Application:

Industrial

Size:

10.4"

Resolution:

800(RGB)×600, SVGA 96PPI

Brightness:

400 cd/m² (Typ.)

Contrast Ratio:

700:1 (Typ.) (TM)

Viewing Angle:

80/80/60/70 (Typ.)(CR≥10)

Lamp Type:

8S2P WLED , 50K hours , With LED Driver

Signal Interface:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

115

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

G104STN01.0 10.4" tft lcd module for AUO

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

G104STN01.0 10.4" tft lcd module for AUO

G104STN01.0

10.4"

800(RGB)×600, SVGA 96PPI

400 cd/m² (Typ.)

700:1 (Typ.) (TM)

80/80/60/70 (Typ.)(CR≥10)

8S2P WLED , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G104STN01.5 10.4" panel lcd for AUO

G104STN01.5

10.4"

800(RGB)×600, SVGA 96PPI

400 cd/m² (Typ.)

700 : 1 (Typ.) (TM)

80/80/60/70 (Typ.)(CR≥10)

8S2P WLED , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , Connector 20 pins

a-Si TFT-LCD, LCM

LCD display G104STN01.4 10.4 inth 800*600 Industrial screen

G104STN01.4

10.4"

800(RGB)×600, SVGA 96PPI

700 : 1 (Typ.) (TM)

80/80/60/70 (Typ.)(CR≥10)

TN, Normally White, Transmissive

LVDS (1 ch, 6/8-bit)

a-Si TFT-LCD, LCM

G104STN01.3 AUO 10.4" a-Si TFT-LCD LCM 800(RGB)×600 SVGA 96PPI

G104STN01.3

10.4"

800(RGB)×600, SVGA 96PPI

450 cd/m² (Typ.)

700:1 (Typ.) (TM)

80/80/60/70(Typ.)(CR≥10)

6S3PWLED, 50K hours, With LED Driver

LVDS(1ch,6/8-bit),20pinsConnector

a-Si TFT-LCD, LCM

G104STN01.0 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G104STN01.0 display has a resolution of 800(RGB)×600, SVGA 96PPI, Contrast Ratio is 700:1 (Typ.) (TM),Viewing Angle is 80/80/60/70 (Typ.)(CR≥10),Lamp Type is 8S2P WLED , 50K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 400 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G104STN01.0 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

Where can I buy the G104STN01.0? Is it a discontinued model?

he G104STN01.0 is a relatively old model and is very likely discontinued (EOL). Purchasing Channels: You can search for it from electronic component distributors, B2B platforms (like Alibaba), or suppliers specializing in LCD modules. They typically sell remaining stock. Important Note: Before purchasing, be sure to confirm with the supplier whether the model is new and original, the years of stock, and if it comes with a warranty. As it may be discontinued, you should also start considering finding a compatible alternative model for future needs.

Is this an IPS screen? What are its viewing angles like?

No, the G104STN01.0 is not an IPS screen. It uses TN (Twisted Nematic) technology. This is reflected in the "STN" part of the model name. As a result, its viewing angles are narrower than those of IPS screens. The typical viewing angles are: Left/Right ±50°/60° (Horizontal), Up/Down ±60°/50° (Vertical). This means that when viewed from significant side or vertical angles, color and contrast will shift noticeably.

What board or controller do I need to drive the G104STN01.0 screen?

You will need an LCD controller or driver board that supports the LVDS interface. The specific choice depends on your signal source: Universal Driver Board: If you are using HDMI, VGA, or AV signals, you can purchase a universal "LVDS driver board". You must provide the seller with the specific model (G104STN01.0) and resolution so they can pre-burn the correct screen parameter configuration file. Embedded Motherboard: If you are developing an embedded product, you need to select a motherboard with an LVDS output interface (e.g., based on ARM or x86 platforms).

My device originally used the AUO G104STN01.0. Are there any compatible models that can be a direct replacement?

When looking for a direct replacement, it's crucial to ensure a complete match in key parameters: size (10.4-inch), resolution (800×600), interface (LVDS), pinout, and mounting holes. While other brands (like Innolux, BOE) may have screens with the same specs, it is highly recommended to contact a display supplier, provide your original model number, and have them confirm a model that is fully compatible in both physical dimensions and electrical interface to avoid the risk of mismatch.

What is the resolution, interface type, and brightness of the G104STN01.0 screen?

The G104STN01.0 is a 10.4-inch TFT LCD module with the following key parameters: Resolution: 800 (RGB) × 600 (SVGA) Interface Type: LVDS (2 ch, 1 port) Brightness: Typical 400 cd/m² (nits)
