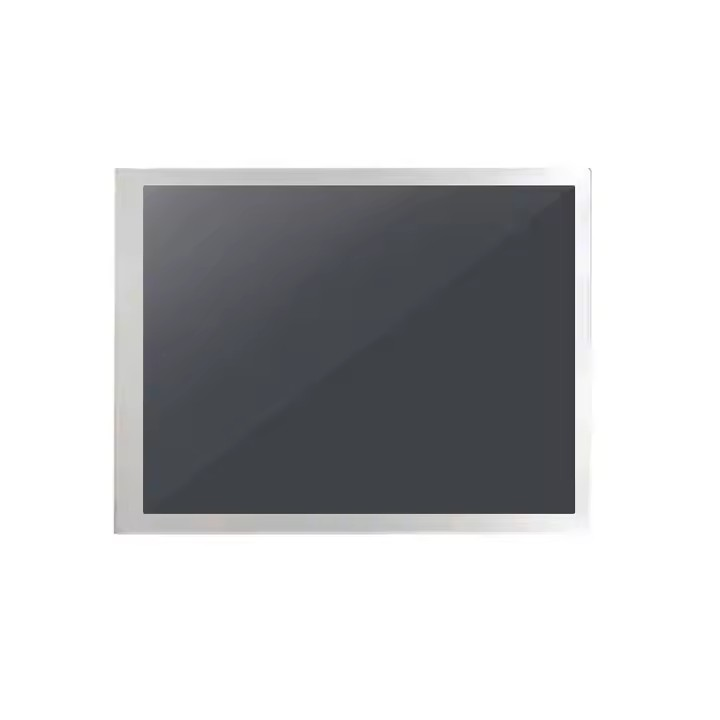

G065VN01 V2 AUO 6.5" 640*480 lcd display module

G065VN01 V2  AUO 6.5" 640*480  lcd display module

The AUO G065VN01 V2 is a 6.5-inch active matrix TFT-LCD display module with a resolution of 640 × 480 pixels (VGA). It features a transmissive display mode with normally white operation. The active area measures approximately 132.48(H)×99.36(V) mm, with overall outline dimensions of roughly 153(H)×118(V)×11.2(D) mm. The panel supports 18-bit parallel RGB interface (6 bits per color), capable of displaying up to 262,144 colors. Logic power supply is 3.3V (typical), with total power consumption (including backlight) typically around 3.0W to 4.5W. The module utilizes an integrated LED backlight (replacing earlier CCFL versions) with a typical lifetime of 50,000+ hours to half-brightness. Operating temperature range is -30°C to +80°C, with a storage range of -30C to +80°C. The module features a 41-pin FFC/FPC connector (0.5mm pitch) for signal interface and separate pins for LED backlight power (typically 12.0V at 250 mA).

 G065VN01 V2  AUO   lcd display module  Key Highlights:

Ultra-wide operating temperature range – Rated for -30°C to +80°C, making this panel exceptionally well-suited for extreme environment applications such as automotive dashboards, construction equipment, military terminals, and outdoor industrial control systems.

High-reliability design – Built to AUO's rigorous industrial-grade standards, this module offers superior vibration resistance, long-term availability, and stable performance in high-humidity and temperature-cycling conditions.

Excellent optical performance – Delivers high contrast ratio (typically 600:1 to 800:1) , brightness of approximately 800 cd/m², and wide viewing angles (typically 80°/80°/70°/70° for left/right/up/down), ensuring clear visibility from any perspective.

VGA resolution in compact 6.5-inch format – The 640×480 pixel density provides a comfortable balance between detail and readability, ideal for medical monitors, factory HMIs, test instruments, and avionics displays.

LED backlight efficiency – The integrated WLED backlight offers lower power consumption, instant-on operation, no audible noise, and longer lifetime compared to legacy CCFL designs, eliminating inverter requirements and reducing system cost.

Proven drop-in compatibility – The G065VN01 V2 is widely used across industries, with extensive technical support, readily available replacement stock, and compatibility with many existing VGA controller boards

G065VN01 V2  AUO   lcd display module Specification:

Applications

Outdoor ruggedized handheld terminals

Industrial machine vision systems

Gas station fuel pump displays

In-vehicle fleet management monitors

Medical patient monitoring systems

FAQ:

Is this screen readable under direct sunlight? What is its brightness level?

The G065VN01 V2 features a high brightness of 1200 cd/m², making it an ultra-high brightness industrial display. It provides excellent clarity even under direct sunlight, which is perfect for outdoor applications.

Does it use an LVDS interface? How many pins does it have?

Yes, it utilizes an LVDS (1 ch, 6/8-bit) signal interface with a 20-pin connector. This interface offers strong anti-interference capabilities, making it ideal for long-distance signal transmission.

Can you provide the original AUO factory inspection report? How is the packaging?

We can provide photos of the original labels and serial numbers for verification. For shipping, we use original anti-static packaging and reinforced industrial cartons to ensure the goods remain intact during international transit.
