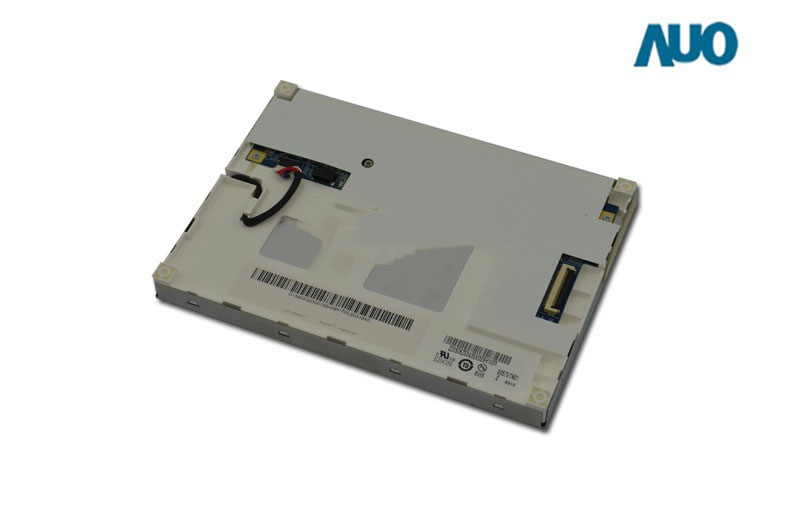

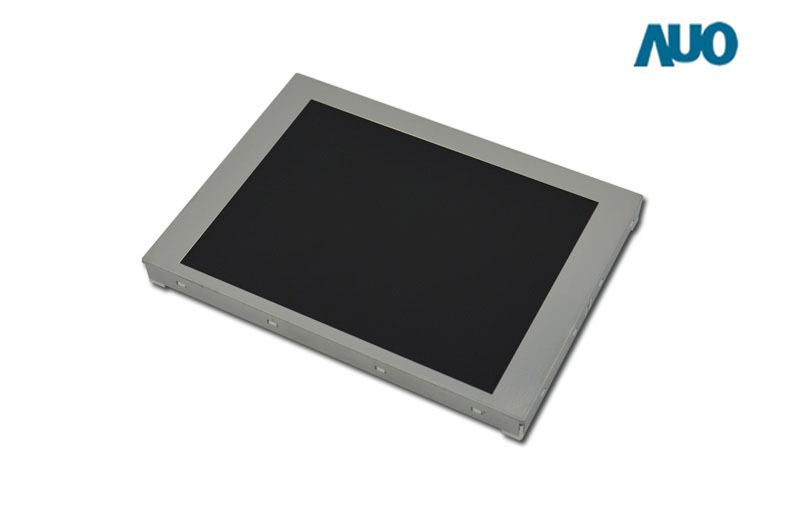

G057VTN01.1 5.7 inch tft lcd module for AUO

G057VTN01.1 is a 5.7" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G057VTN01.1 display has a resolution of 640(RGB)×480, VGA 141PPI, Contrast Ratio is 800 : 1 (Typ.) (TM),Viewing Angle is 80/80/70/70 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is CMOS (1 ch, 6-bit) , 33 pins Connector,Brightness is 550 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G057VTN01.1 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
