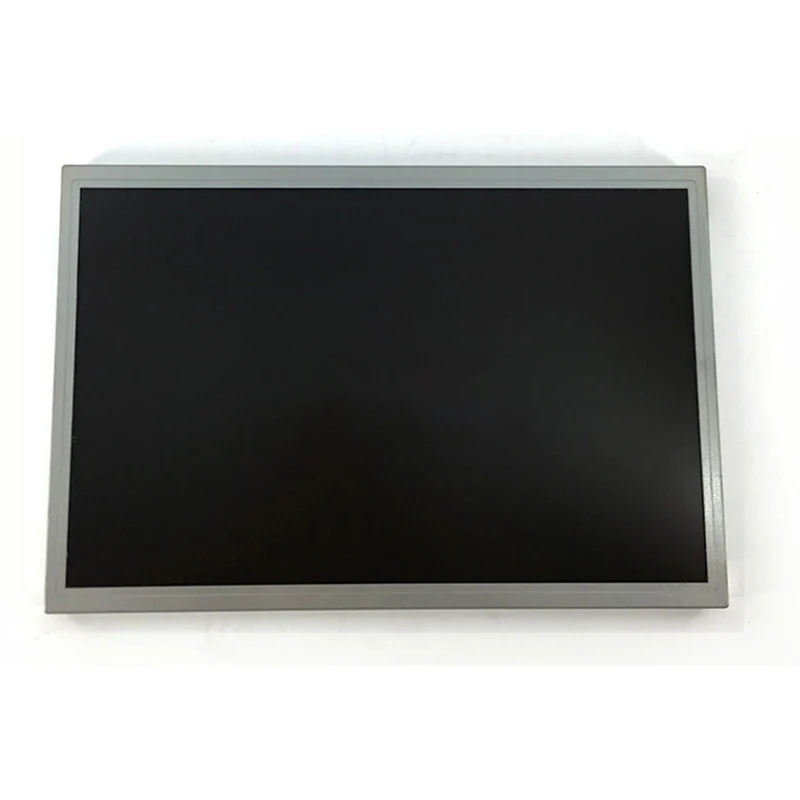

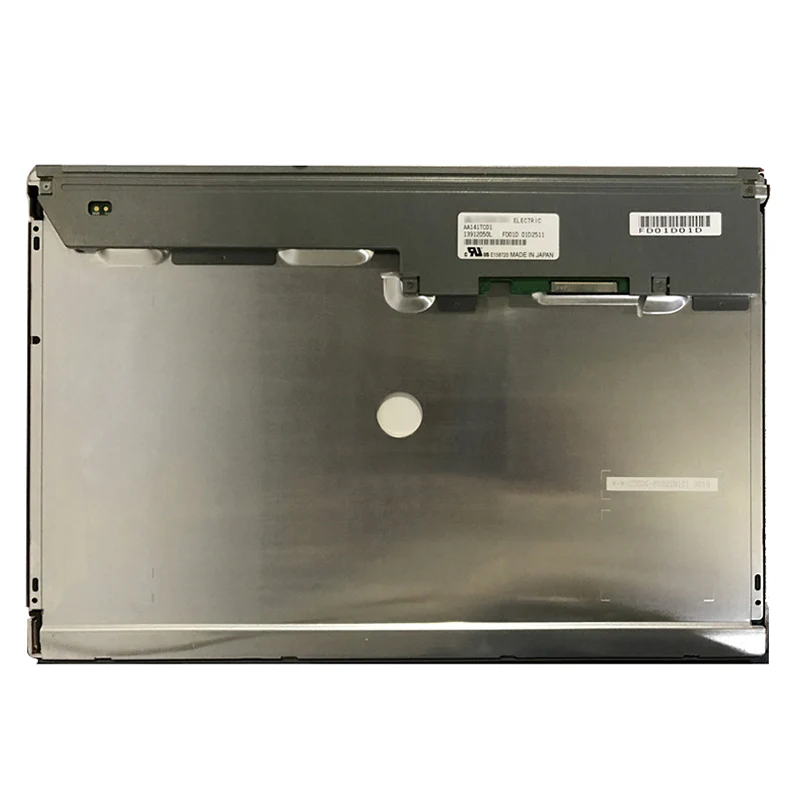

AA141TC01 LVDS 14.1 inch TFT screen 1280*800 display module For Mitsubishi

AA141TC01 is a 14.1" a-Si TFT-LCD, LCM Display screen Product from Mitsubishi.According to Mitsubishi's product specification sheet,AA141TC01 display has a resolution of 1280(RGB)×800, WXGA 107PPI, Contrast Ratio is 700 : 1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is 5 strings WLED , 100K hours , Without Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 800 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of AA141TC01 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
