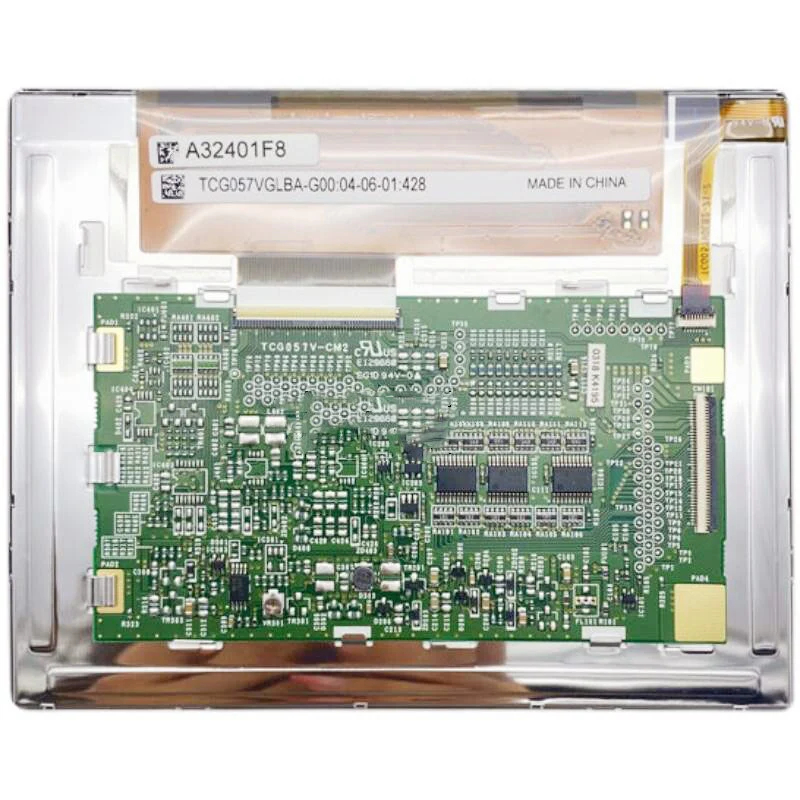

Kyocera 5.7inch tft Panel TCG057VGLBA-H50 LCD Module Display
Kyocera 5.7inch tft Panel TCG057VGLBA-H50 LCD Module Display
The Kyocera TCG057VGLBA-H50 is a highly durable 5.7-inch industrial-grade TFT-LCD module, engineered for high-performance visual output in compact embedded systems. It features a native VGA resolution (640 x 480) and a classic 4:3 aspect ratio, providing a reliable standard for industrial instrumentation.
This original display is distinguished by its high-brightness LED backlight system, typically delivering 370 cd/m², which ensures excellent readability even in high-ambient light or outdoor conditions. Utilizing a Parallel RGB (1 ch, 6-bit) or CMOS interface, it supports a palette of 262,144 colors with stable signal integrity. Designed for long-term deployment in harsh environments, it maintains consistent performance across a wide operating temperature range of -20°C to +70°C and features an Anti-Glare (AG) surface treatment to minimize reflections.
TCG057VGLBA-H50 LCD Module Display Specifications:
| Parameter | Details |
| Manufacturer | Kyocera Corporation |
| Model Name | TCG057VGLBA-H50 |
| Screen Size | 5.7 inch |
| Resolution | 640 × 480 (VGA) |
| Aspect Ratio | 4:3 |
| Display Mode | TN, Normally White, Transmissive |
| Luminance | 370 cd/m² (Typical) |
| Contrast Ratio | 500:1 (Typical) |
| Interface Type | LVDS (1 ch, 6-bit) |
| Viewing Angle | 80/80/80/80 (Full Viewing Direction) |
| Backlight Life | 4 strings WLED, 37K hrs, Without Driver |
| Operating Temp | -20 ~ 70 °C |
Optimized Industrial Viewing: While utilizing TN technology, Kyocera’s advanced cell design provides a balanced 80-degree viewing angle from all sides, minimizing color inversion.
Consistent 4:3 VGA Format: The 640x480 resolution is perfectly suited for standard industrial PLCs, legacy monitoring software, and instrumentation.
Long-Life WLED Backlight: Rated for 50,000 hours of continuous use, ensuring the display lasts for years in 24/7 industrial or commercial applications.
Robust Environmental Shielding: Specifically built to withstand high levels of vibration and electrical noise common in factory and automotive settings.
Low Power Consumption: Engineered for thermal efficiency, making it an excellent choice for sealed, fanless handheld or wall-mounted enclosures.
Industrial PLC & HMI Units
Medical Infusion Pumps & Patient Monitors
Automotive Diagnostic Scanners
Electronic Measurement Instruments (Oscilloscopes)
Marine Engine Control Displays
FAQ:
Is this TCG057VGLBA-H50 a Kyocera original? Is it brand-new?
We guarantee that every panel we provide is a 100% original product from Kyocera. All modules are in brand-new Grade A condition with original factory labels, ensuring no dead pixels or scratches and stable performance.
What is the resolution of this 5.7-inch screen? Does it support wide operating temperatures?
This model has a resolution of 640×480 (VGA). As an industrial-grade product, it supports wide-temperature operation (typically -20°C to 70°C) and features high contrast and reliability, making it ideal for harsh industrial environments.
