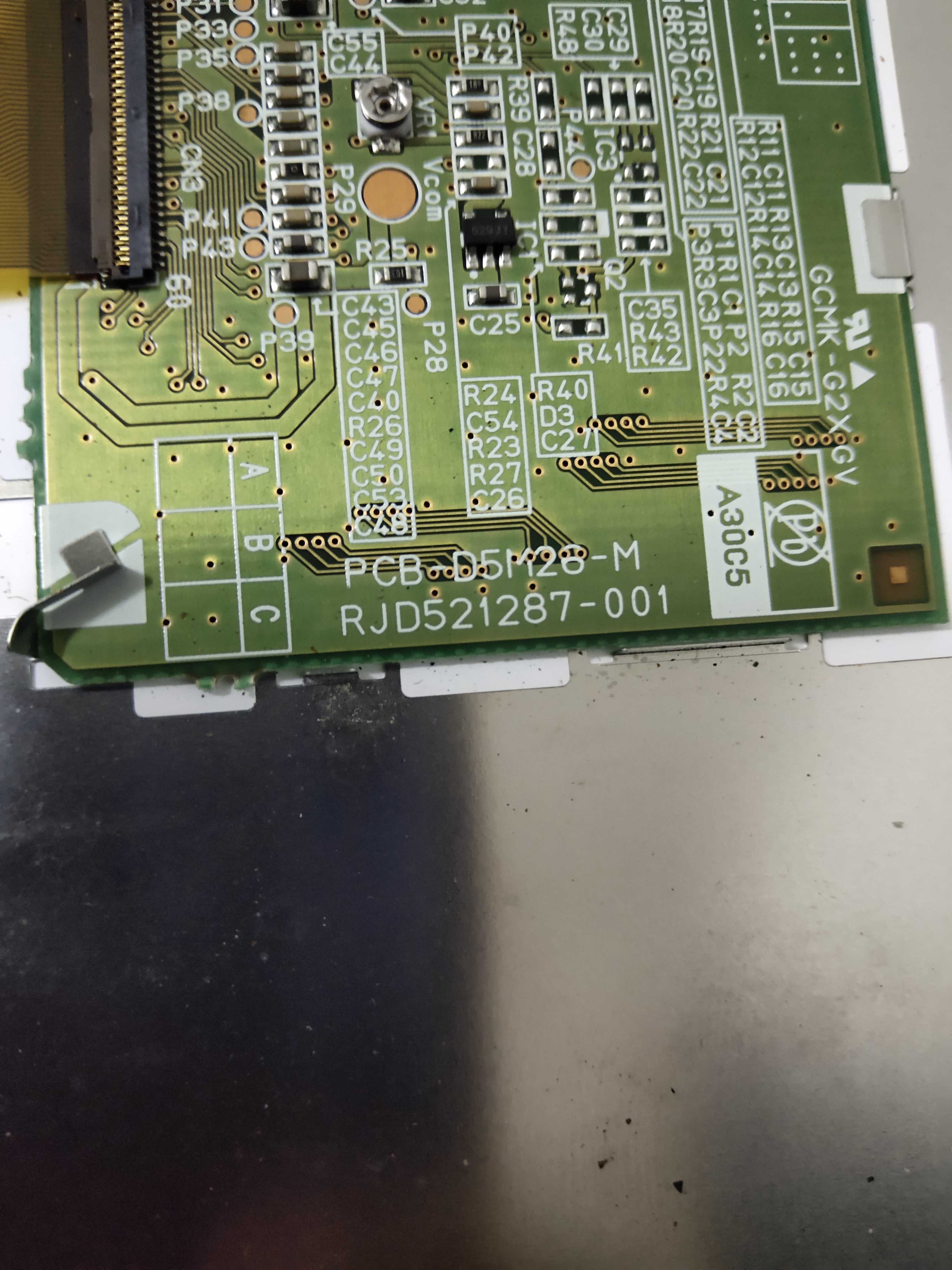

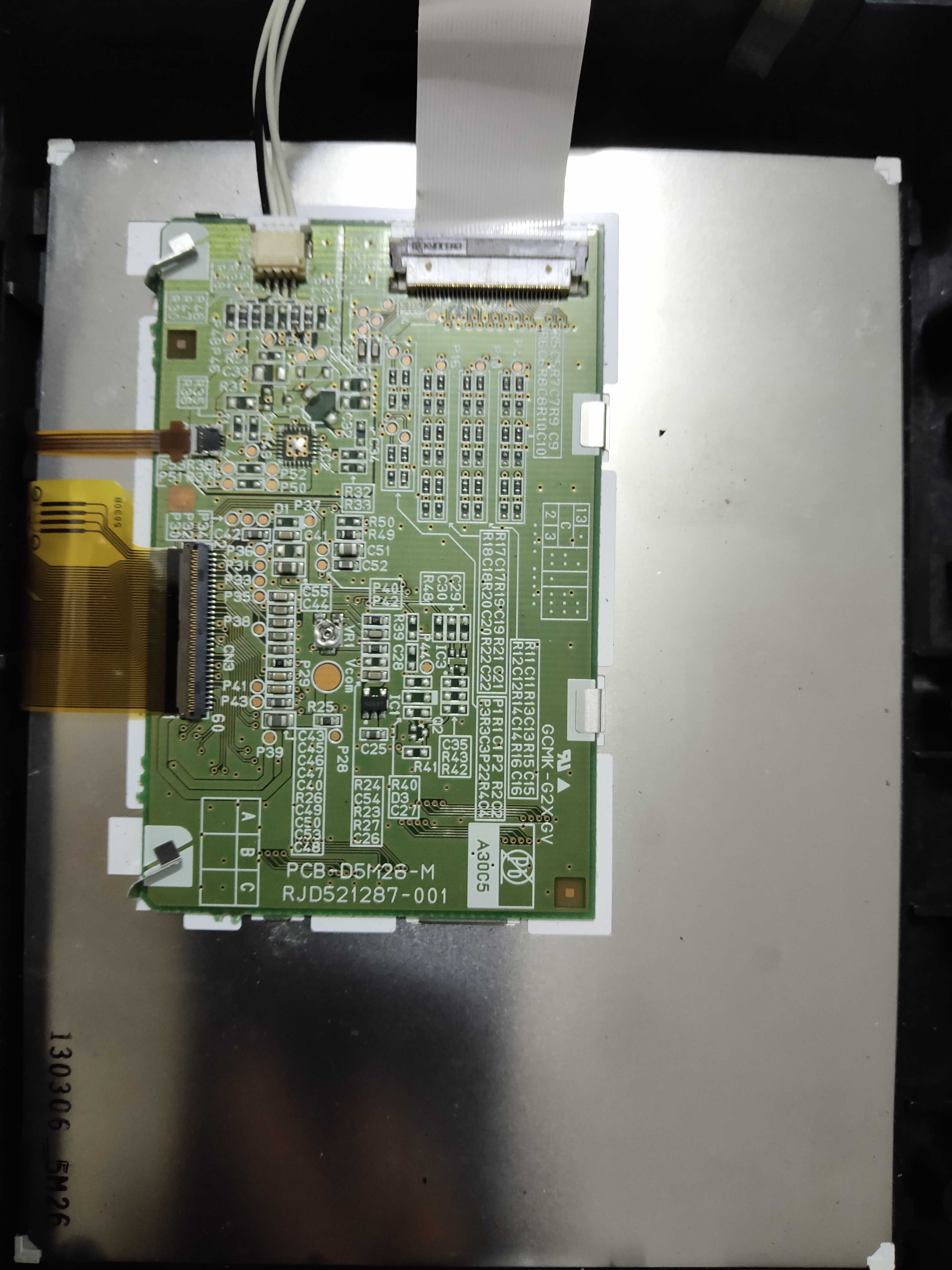

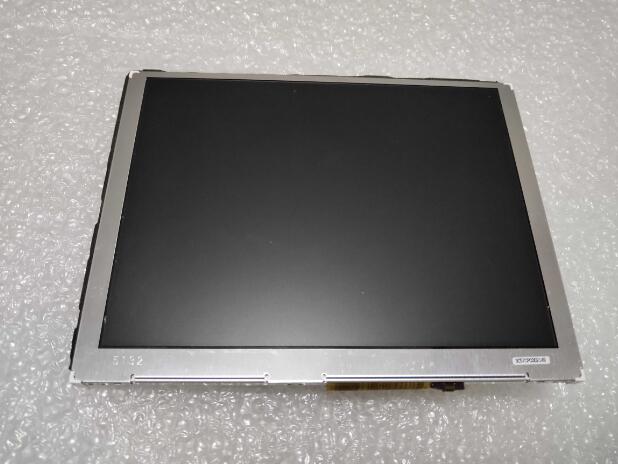

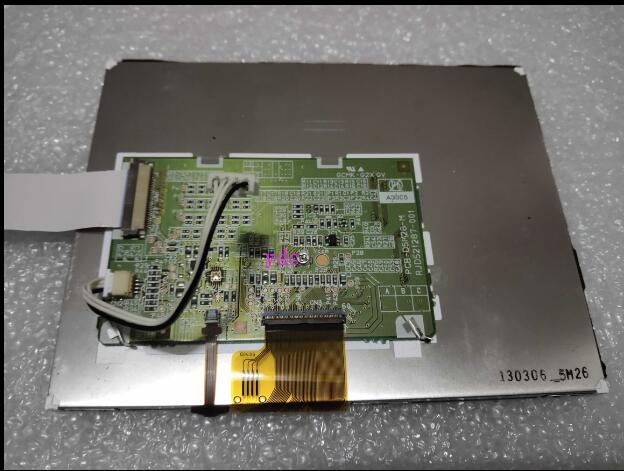

PCB-D5M26-M/RJD521287-001 Original A+ quality 5.7 inch LCD screen
PCB-D5M26-M/RJD521287-001 Original A+ quality 5.7 inch LCD screen
Price: $150.00
$140.00/ piece
Add to cart
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001
PCB-D5M26-M/RJD521287-001

PCB-D5M26-M/RJD521287-001 Original A+ quality 5.7 inch LCD screen

Price: $150.00
$140.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

PCB-D5M26-M/RJD521287-001 Original A+ quality 5.7 inch LCD screen

Product Information Product Specifications
Model:
PCB-D5M26-M/RJD521287-001
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
899
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

PCB-D5M26-M RJD521287-001 (COM57T5M71ZSC) is original Casio industrial 5.7-inch QVGA TFT module, tailor-made for GT14 series integrated HMI and various vintage factory automation control equipment. A+ grade original glass strictly screens out bad pixels, uneven brightness and color deviation, stable long-term static data display without screen burn-in, fully meeting 24/7 non-stop workshop operation requirements.


Dual 3.3V/5V compatible 33Pin parallel TTL interface perfectly matches old industrial MCU and HMI mainboards, no complicated signal conversion circuit needed for direct plug-and-play replacement. Single-side CCFL backlight provides uniform soft brightness, adapting to indoor constant temperature production workshops, medical equipment rooms and vehicle auxiliary control cabins. The rear integrated drive PCB is printed with RJD521287-001 code, mechanical size, FPC pin definition and circuit logic are completely consistent with the original machine screen, no cabinet housing modification required during replacement.

ParameterTechnical Specification
Full Part NumberGlass: COM57T5M71ZSCPCB label: PCB-D5M26-MCircuit code: RJD521287-001
ManufacturerCasio (OEM industrial display module)
Diagonal Size5.7 inches
Native Resolution320(H) × 240(V) QVGA, 4:3 square
LCD Technologya-Si TN TFT-LCD, Transmissive, Normally White
Pixel ArrangementRGB Vertical Stripe
Color Depth6-bit single channel, 262K display colors
Signal Interface33Pin FPC parallel RGB TTL, dual 3.3V / 5V logic voltage compatible
Backlight SystemSingle edge CCFL tube, no onboard CCFL drive IC, external single-channel high voltage CCFL inverter requiredRated Lifespan: 40,000 hours typical
Typical Brightness280 cd/m² standard industrial brightness
Typical Contrast Ratio450:1
Viewing Angle (CR≥10, L/R/U/D)70° / 70° / 45° / 65°, Optimal viewing: 6 o’clock front lower
Total Response Time (Tr+Td)30ms typical
Refresh Rate60Hz fixed
Active Display Area (AA)115.2 mm (W) × 86.4 mm (H)
Overall Outline Dimension166.5 mm (W) × 108.2 mm (H) × 11.3 mm thickness
Net Weight~310g
Surface TreatmentStandard transparent polarizer, optional matte AG anti-glare film
Operating Temperature Range-20 ℃ ~ +70 ℃ industrial wide grade
Storage Temperature Range-30 ℃ ~ +80 ℃
Touch PanelBare LCD without integrated touch; 4-wire resistive touch optional optical bonding
Quality GradeOriginal A+ grade, zero bright dot, dark dot, line defect, no color cast
Compliance StandardRoHS Lead-Free Certified, mercury-containing CCFL backlight
Product StatusDiscontinued EOL legacy industrial screen, brand new original surplus spot stock for MRO replacement

Core Product Advantages

  1. Original A+ quality screening, zero defective pixels, stable picture without flicker or uneven backlight

  2. Triple model coding matching (PCB-D5M26-M / RJD521287-001 / COM57T5M71ZSC), fully compatible with Casio GT14 original HMI

  3. -20℃ ~ +70℃ ultra-wide temperature tolerance, adapt to cold unheated workshops and high-temperature equipment cabinets

  4. Dual 3.3V/5V logic voltage compatible 33Pin parallel interface, wide matching range of old industrial control mainboards

  5. Optimized static image anti-burn-in design, suitable for long-hour production parameter monitoring

  6. Brand new original surplus inventory, complete test report before delivery, reliable after-sales warranty

  7. Mechanical outline and mounting holes consistent with original screen, direct replacement without cutting cabinet

Typical Application Scenarios

  1. Casio GT14 series integrated industrial touch HMI original replacement LCD screen

  2. Vintage injection molding machine, plastic extruder, textile loom operation control display panels

  3. Portable medical inspection, patient monitoring small auxiliary display equipment

  4. Mini packaging, printing automation equipment PLC parameter monitoring terminal

  5. Laboratory temperature/humidity, pressure analytical measuring instrument display module

  6. Replacement spare screen for COM57T5M71ZSC 5.7-inch QVGA CCFL industrial TFT modules

 FAQ

Q1: Does PCB-D5M26-M need an external CCFL inverter?

A1: Yes, equipped with single CCFL tube without onboard high-voltage drive circuit. A matched single-channel CCFL inverter is mandatory; WLED driver boards cannot be directly compatible.

Q2: What is the relationship between PCB-D5M26-M, RJD521287-001 and COM57T5M71ZSC?

A2: COM57T5M71ZSC is the LCD glass core model; PCB-D5M26-M is the rear drive PCB model; RJD521287-001 is the PCB internal circuit code, three codes correspond to one complete screen module.

Q3: Can this panel directly replace Casio GT14 HMI screen?

A3: Yes, mechanical size, FPC pin sequence and backlight circuit are 1:1 consistent with GT14 original screen, plug-and-play without program modification.

Q4: What does A+ grade quality mean?

A4: A+ grade standard: zero bright spot, dark spot, horizontal/vertical line defect, no color cast, uniform backlight brightness, no light leakage at edges.

Q5: Does this LCD come with touch screen?

A5: Bare LCD only, no integrated touch layer. To make a touch monitor, need to separately match 5.7-inch 4-wire resistive touch film for optical bonding.







Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
PCB-D5M26-M/RJD521287-001 is a Display screen Product from .According to 's product specification sheet,PCB-D5M26-M/RJD521287-001 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of PCB-D5M26-M/RJD521287-001 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
