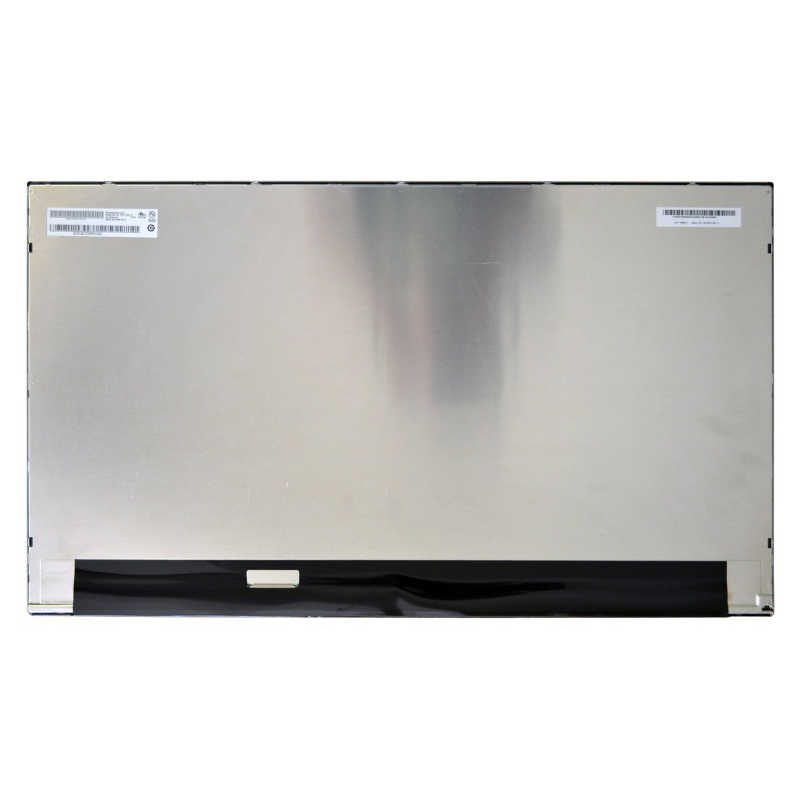

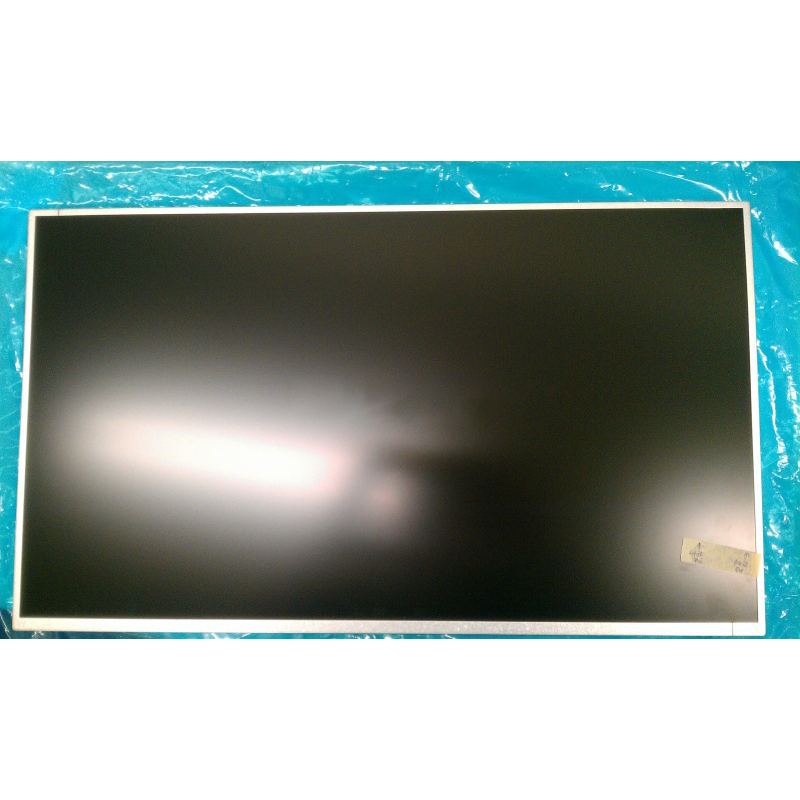

M270HVN02.0 AUO 27inch 1920×1080 LCD DISPLAY
M270HVN02.0
27"
1920(RGB)×1080, FHD 81PPI
300 cd/m² (Typ.)
3000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED [15S4P] , 40K hours , W/O Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
M270DAN07.S AUO 27 inch tft lcd module
27"
2560(RGB)×1440, Quad-HD 108PPI
350 cd/m² (Typ.)
900:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
18S4P WLED , 30K hours , Without Driver
LVDS (4 ch, 8-bit) , 92 pins Connector
a-Si TFT-LCD, LCM
M270QAN06.5 AUO 27 inch lcd display module
27"
3840(RGB)×2160, UHD 163PPI
350 (Typ.)(cd/m²)
1000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
KSF LED , No Driver
eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector
a-Si TFT-LCD, LCM
m270hge-l20 Innolux 27 inch tft lcd module
27"
1920(RGB)×1080, FHD 81PPI
300 cd/m² (Typ.)
1200:1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
4 strings WLED , 30K hours , Without Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
