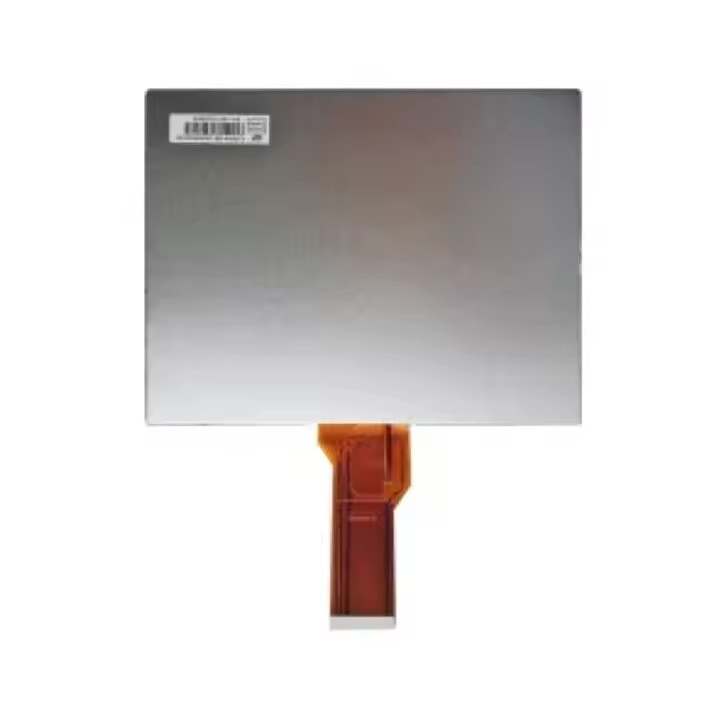

EJ080NA-05B is a 8" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,EJ080NA-05B display has a resolution of 800(RGB)×600, SVGA 125PPI, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 6 o'clock,Lamp Type is 3S9P WLED , 20K hours , Without Driver,Signal Interface is Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC,Brightness is 300 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of EJ080NA-05B after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
If the EJ080NA-05B is unavailable, are there any directly compatible replacement models?
A:
While there may be other 8-inch 800x1280 resolution panels from different brands (e.g., AUO), they are generally not guaranteed to be directly compatible. Even with the same resolution, the interface type, pin assignment, power voltage, mounting dimensions, and backlight driver can differ. When looking for a replacement, it is crucial to carefully compare the datasheets of both models or consult with a supplier. Direct replacement without verification is not recommended.
Q:
What is the mounting method for this screen? Is it a bare glass panel?
A:
No, the EJ080NA-05B is typically not a bare glass panel. It is a module that includes a front cover glass, a metal backplate, and an integrated LED backlight. It is mechanically mounted via screw holes (on the backplate) and electrically connected through a standard connector (FPC or board-to-board).
Q:
What devices is this display panel commonly used in?
A:
With its 8.0-inch size and relatively high portrait resolution (800x1280), this panel is commonly found in industrial control equipment, Human-Machine Interfaces, portable medical devices, high-end handheld terminals, test and measurement instruments, and some specific consumer electronics.
Q:
What interface does this screen use, and what kind of driver board is required?
A:
The EJ080NA-05B uses an LVDS (Low-Voltage Differential Signaling) interface. It is a 2-channel, 8-bit interface. You will need to find a driver board that supports this resolution (800x600), the LVDS interface, and matches the power supply voltage and signal timing as per the panel's datasheet.
Q:
What are the basic specifications of the EJ080NA-05B display panel?
A:
The EJ080NA-05B is an 8.0-inch LCD panel produced by Innolux. Its key specifications include:
Size: 8.0 inches
Resolution:800*600
Display Mode: IPS, Normally White
Brightness: 300cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.)
